Ignition Switch Inspection

Verify that the continuity between the ignition switch terminals is as indicated in Fig 1 .
- If not as indicated in Fig 1 , replace the ignition switch.

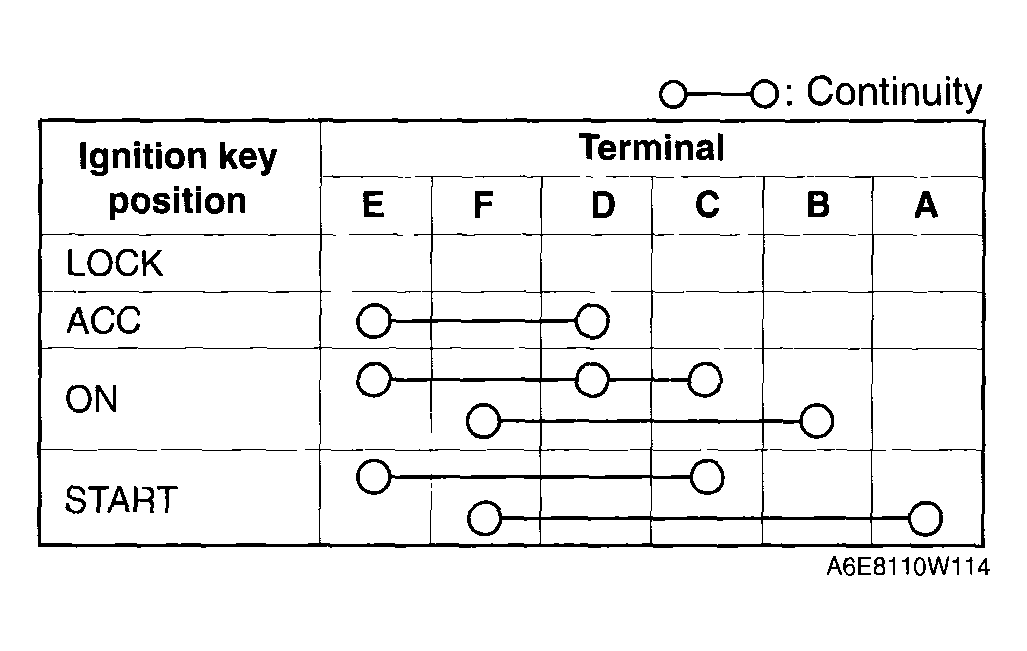

Fig 1: Ignition Switch Terminal Resistance Reference Table
Courtesy of MAZDA MOTORS CORP.

Fig 2: Inspecting Ignition Switch
Courtesy of MAZDA MOTORS CORP.
