Power Door Lock System And Keyless Entry System Location Index [Advanced Keyless System]

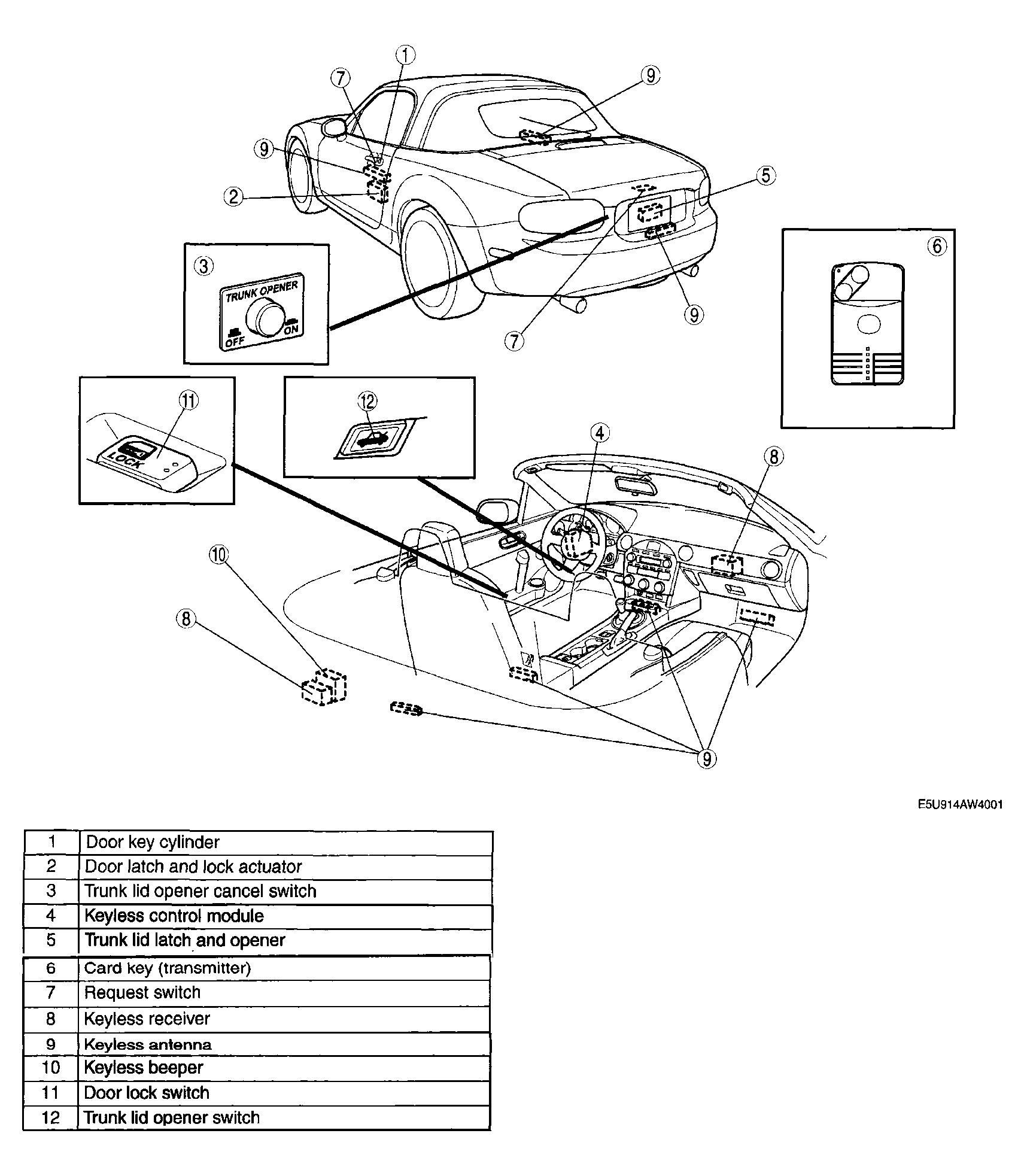

Fig 1: Identifying Location Of Power Door Lock System & Keyless Entry System Components
G04323494Courtesy of MAZDA MOTORS CORP.
