Scan Tool Testing

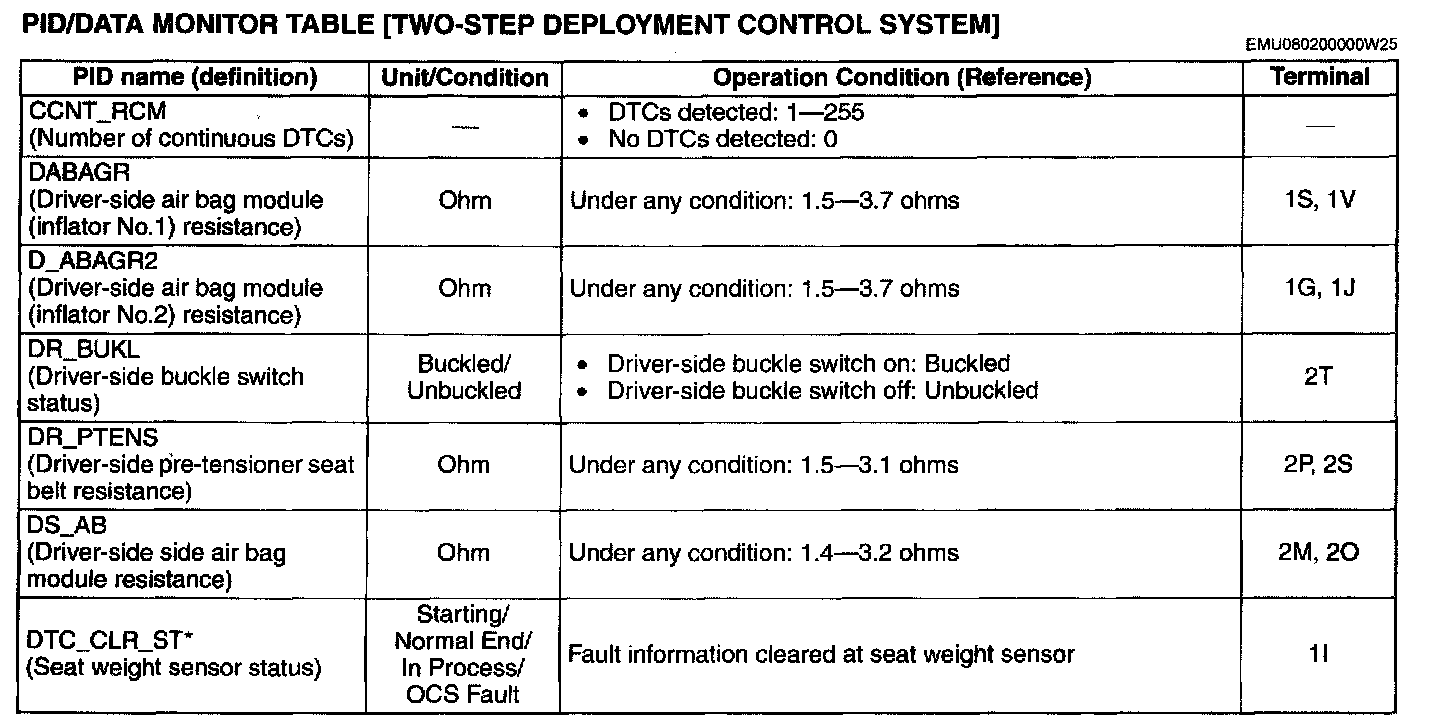

PID/Data Monitor Table [Two-Step Deployment Control System] - Part 1:

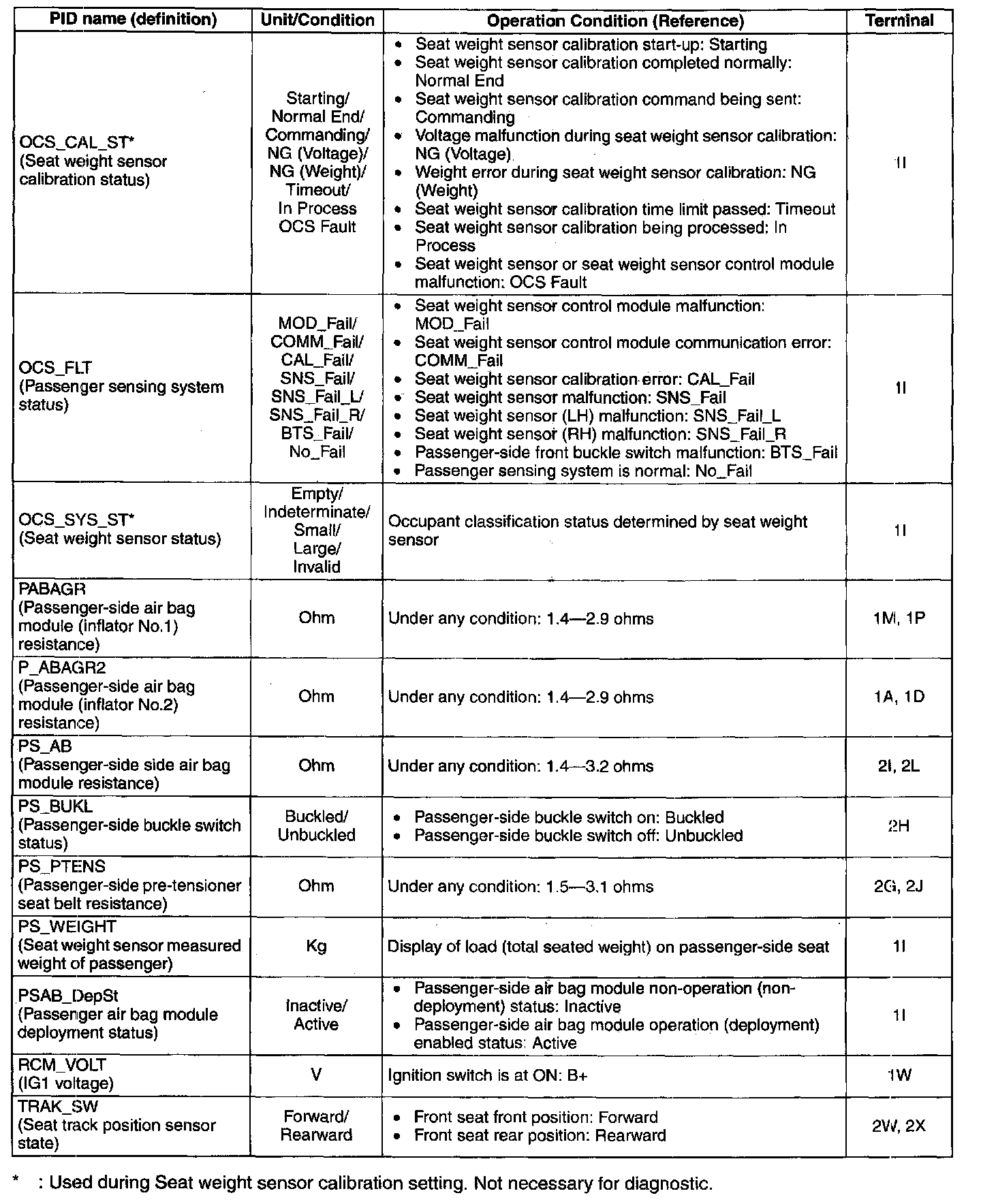

PID/Data Monitor Table [Two-Step Deployment Control System] - Part 2:
