Automatic Transaxle Location Index

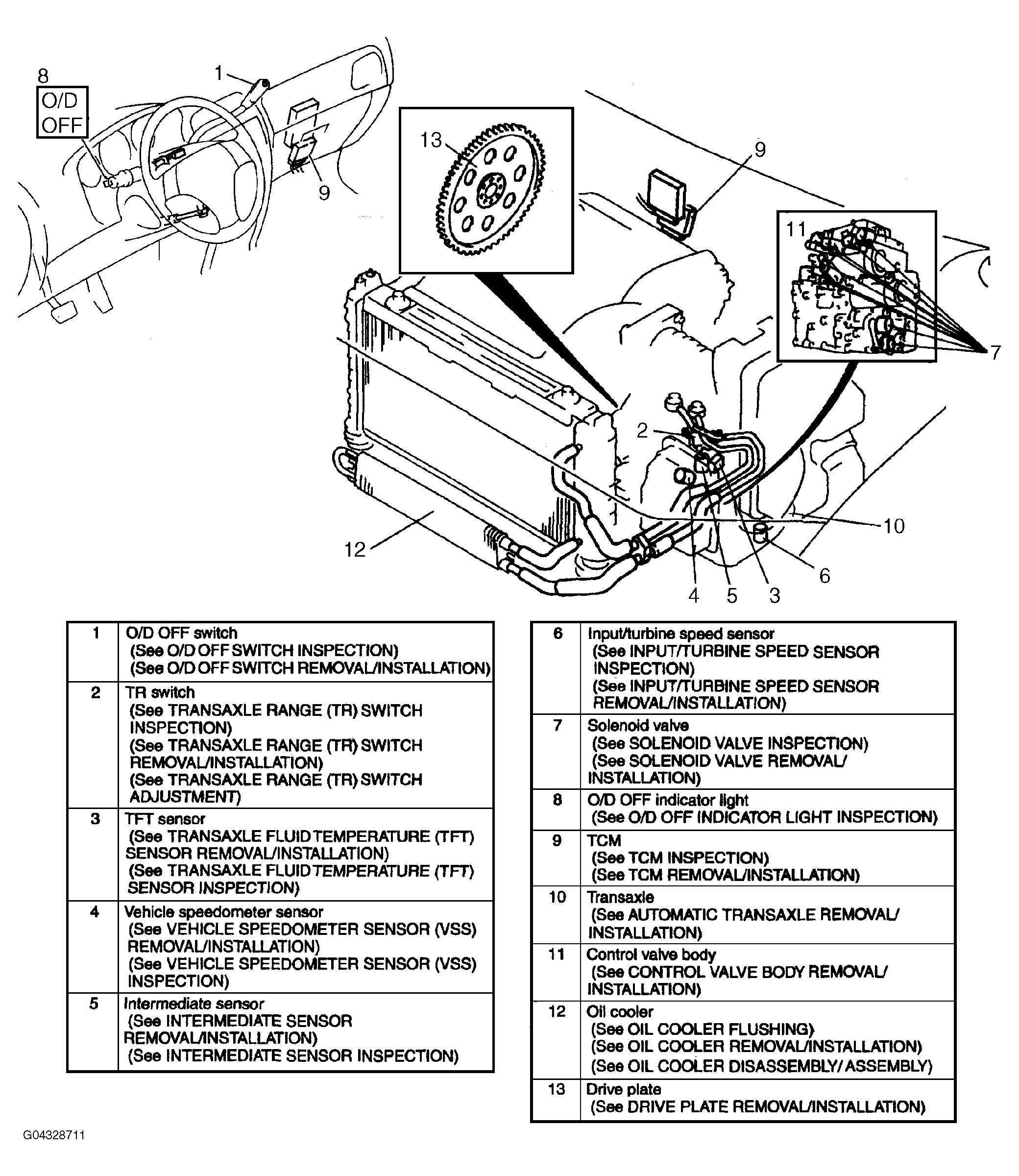

Fig 1: Identifying Automatic Transaxle Location

G04328712

Courtesy of MAZDA MOTORS CORP.
