Instrument Cluster And DLC Connector End View

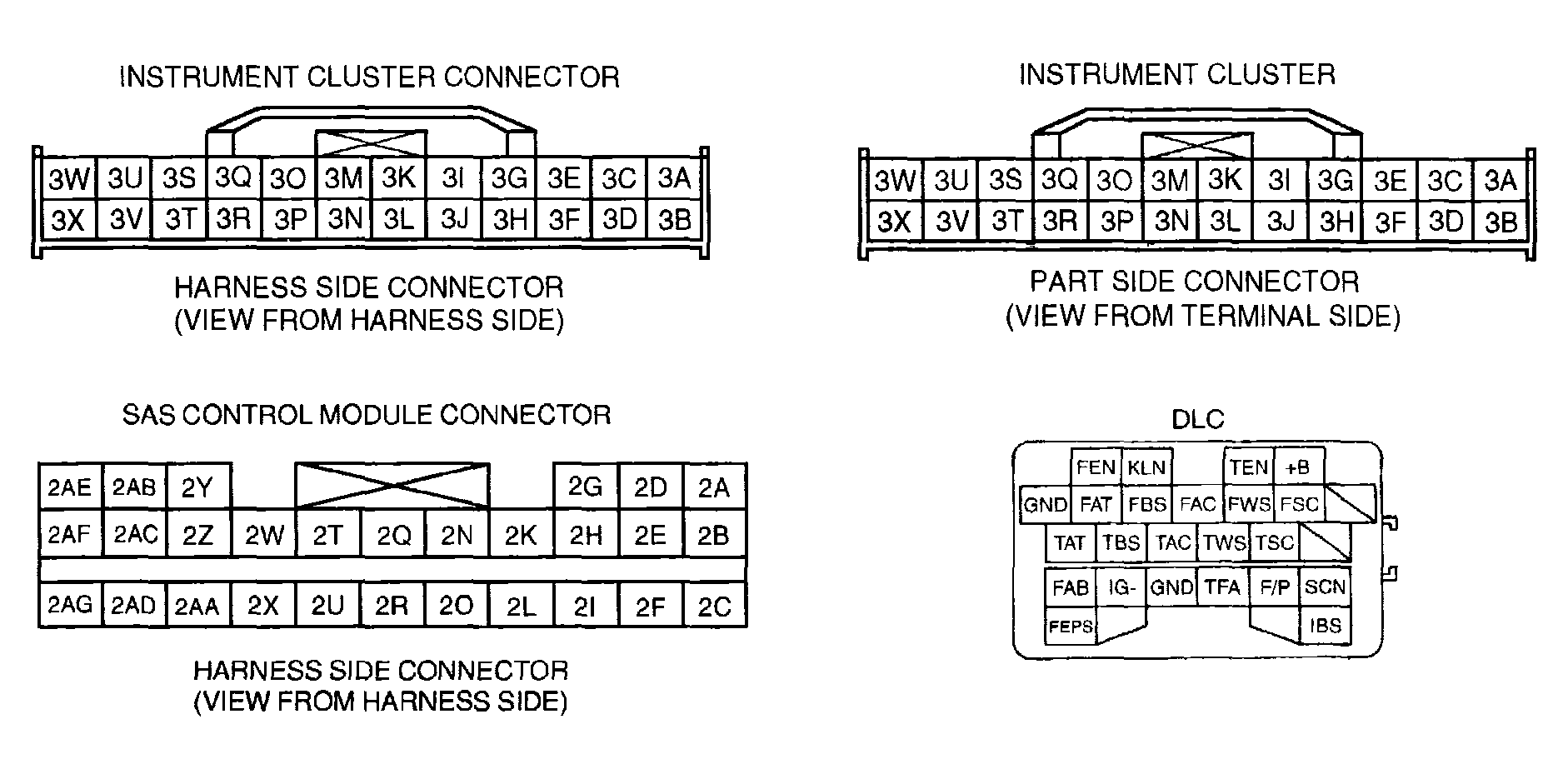

Fig 1: Instrument Cluster And DLC Connector End View
Courtesy of MAZDA MOTORS CORP.
