Rear Main Fan Switch Disassembly/Assembly

  1. Remove the rear main fan switch. (See REAR MAIN FAN SWITCH REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in Fig 1.
  3. Assemble in the reverse order of disassembly.

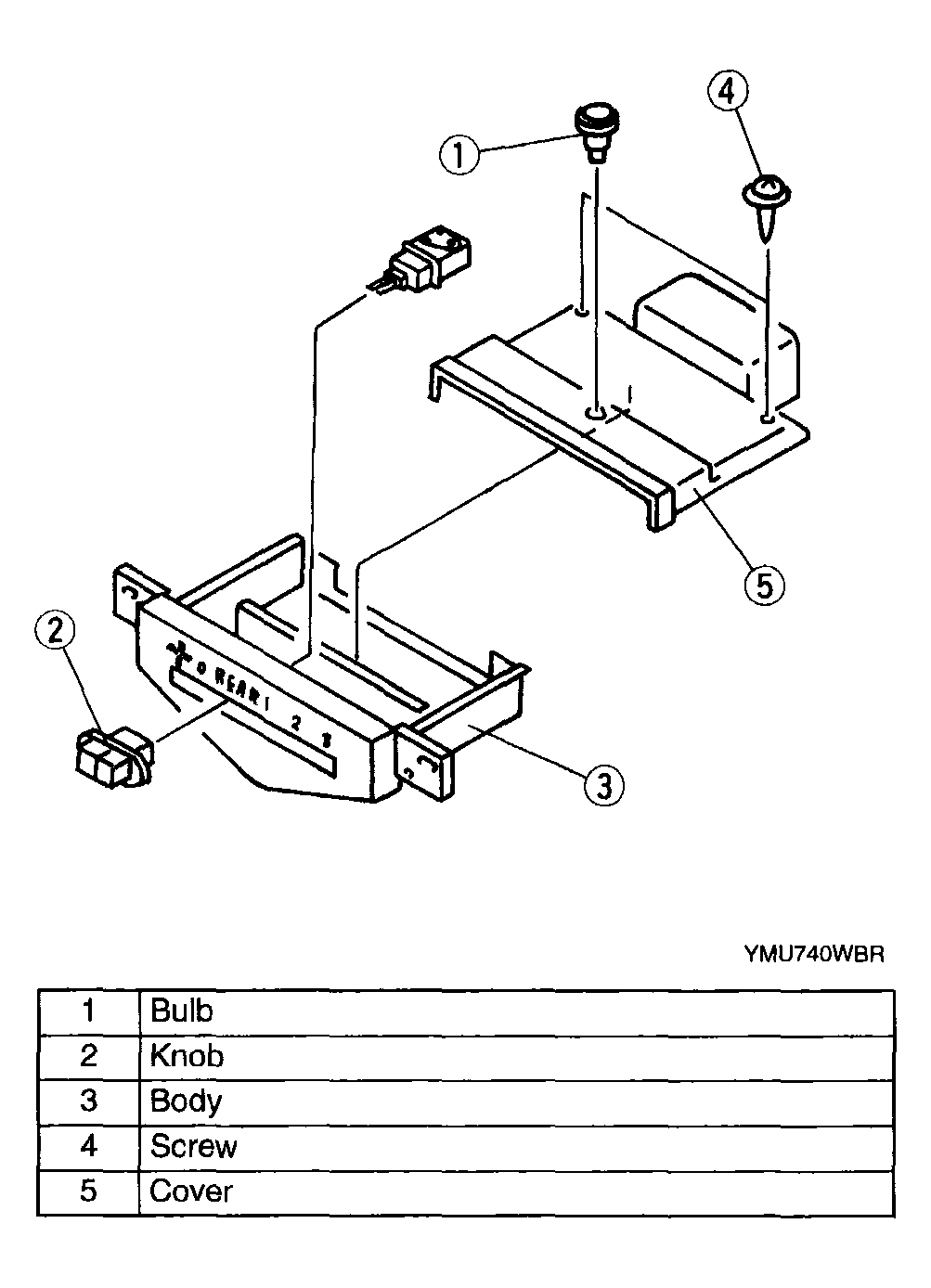

Fig 1: Identifying Rear Main Fan Switch Components
G04329010Courtesy of MAZDA MOTORS CORP.
