Lighting Systems Location Index

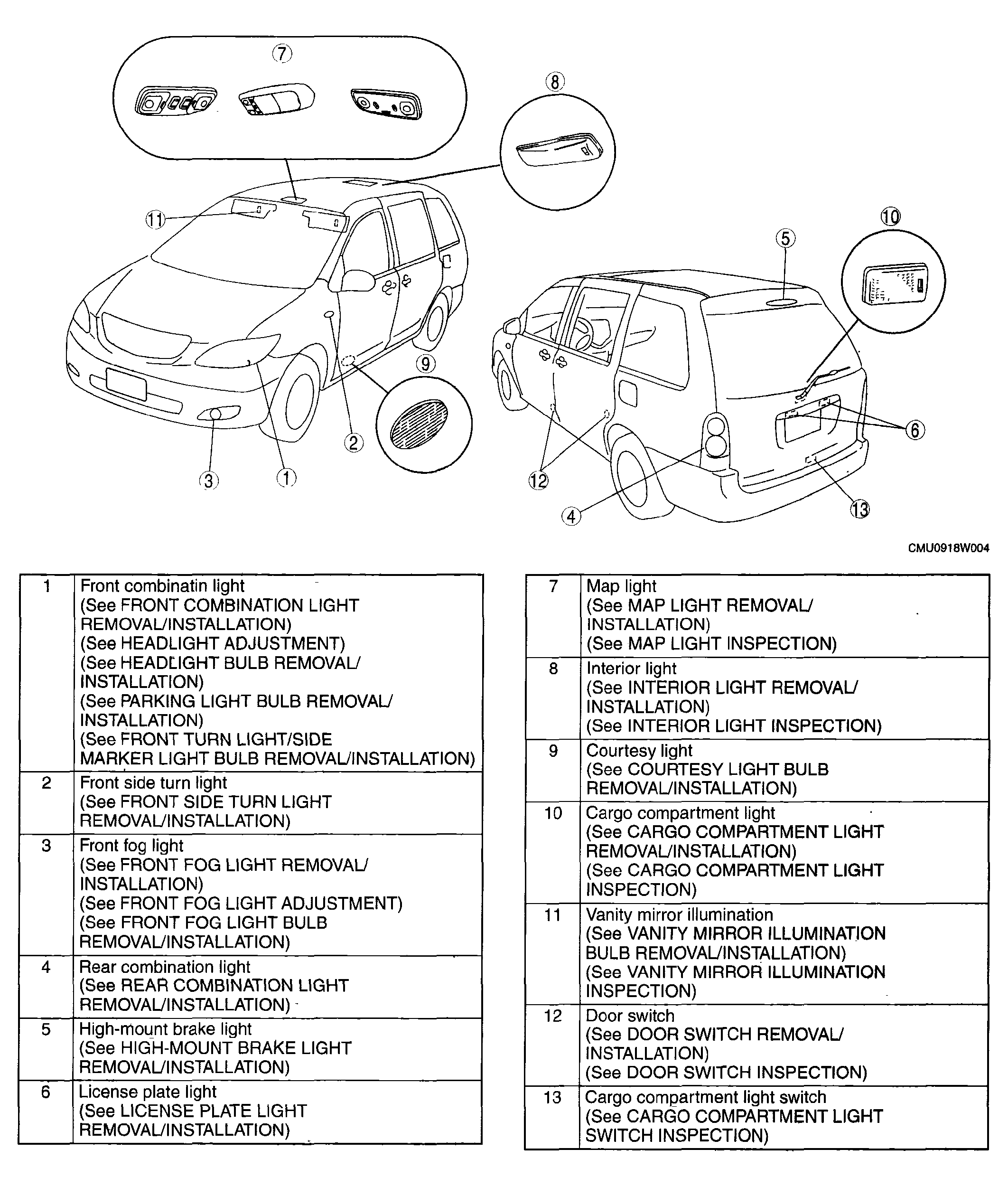

Fig 1: Identifying Lighting Systems Components Location (1 of 2)

Courtesy of MAZDA MOTORS CORP.

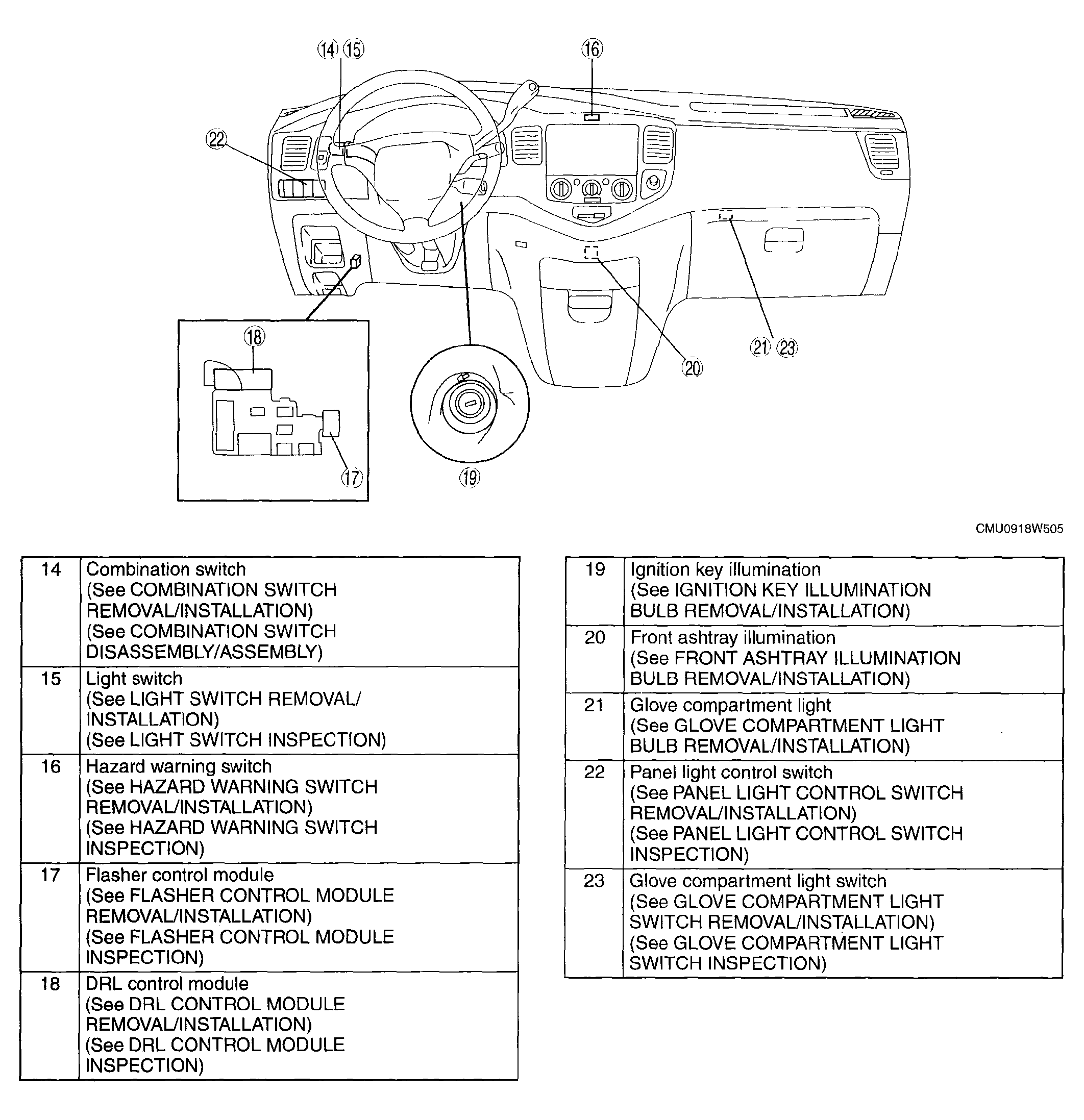

Fig 2: Identifying Lighting Systems Components Location (2 of 2)

Courtesy of MAZDA MOTORS CORP.
