Headlight switch

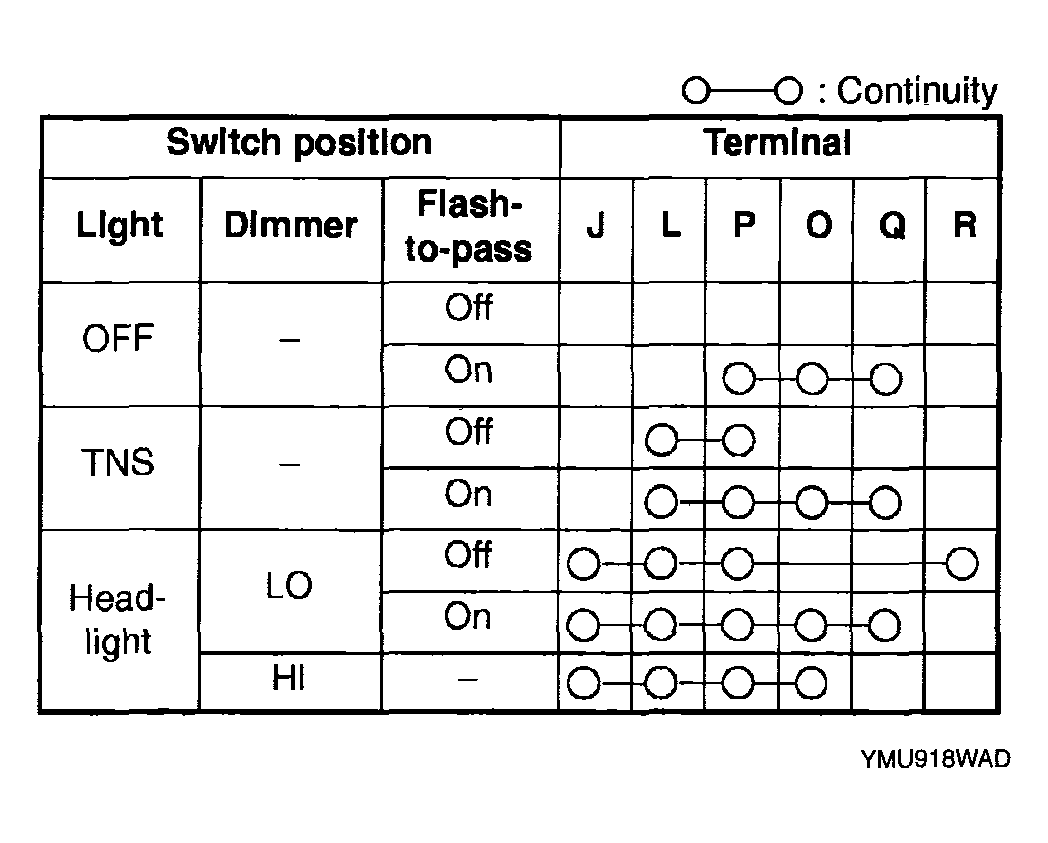

Fig 1: Headlight Switch Continuity Table
G04329691Courtesy of MAZDA MOTORS CORP.
Fig 2: Headlight Switch Connector Terminals
G04329692Courtesy of MAZDA MOTORS CORP.
