PID/Data Monitor Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the WDS or equivalent to the DLC-2.
  2. Display the PID/data monitor items.
    • Verify a displayed item according to the PID/data monitor table.
  3. Disconnect the WDS or equivalent.

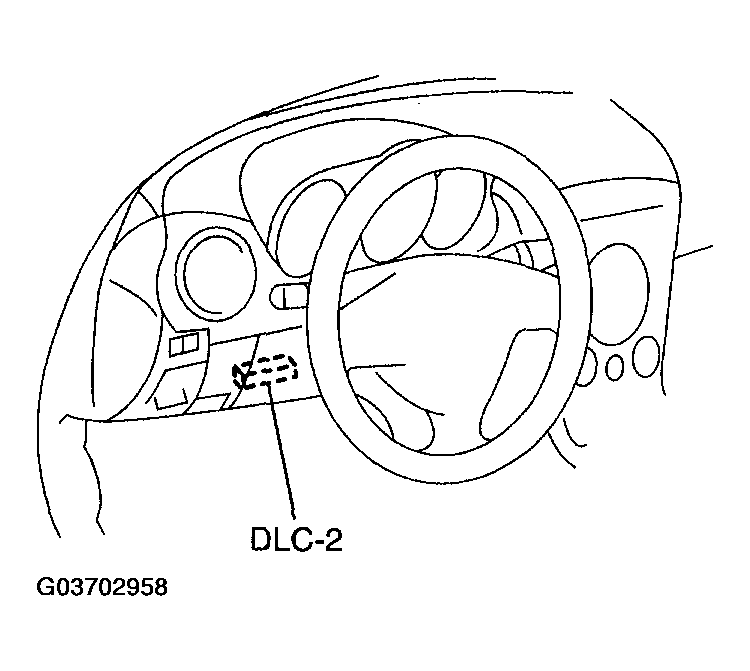

    Fig 1: Identifying DLC-2 Connector
    G03702958Courtesy of MAZDA MOTORS CORP.
