Home >> Mazda >> 2006 >> B3000 V6-3.0L OHV >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Test 1
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Pinpoint Test 1

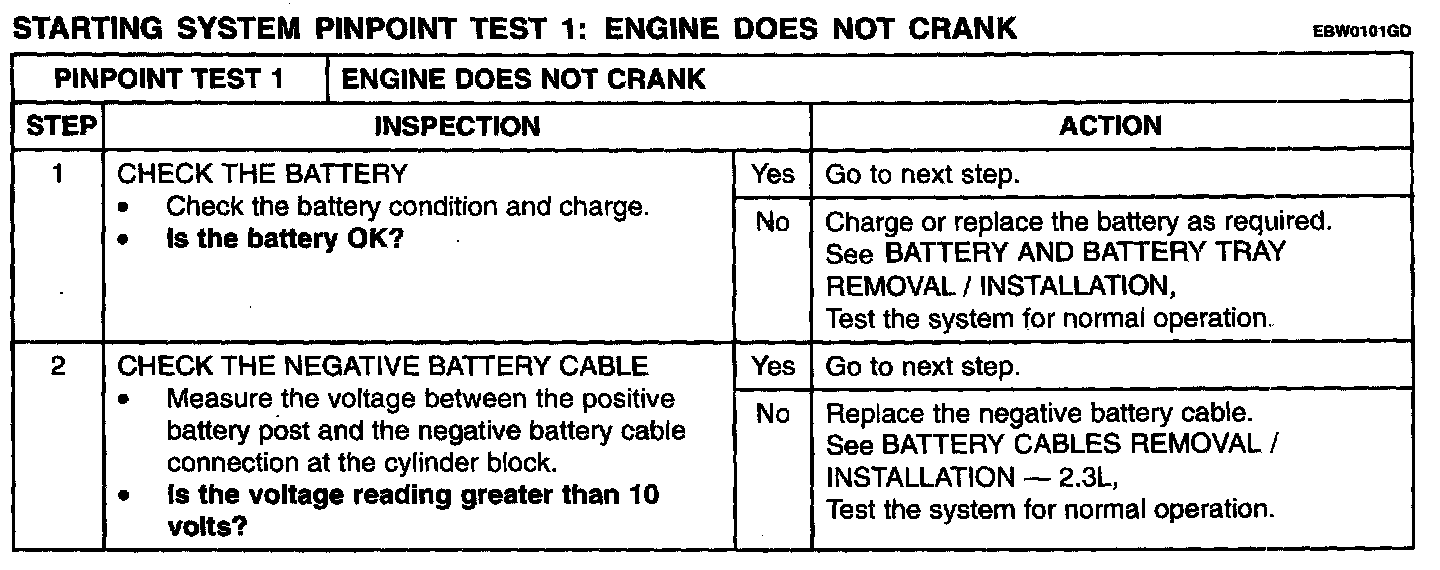

Step 1-Step 2:

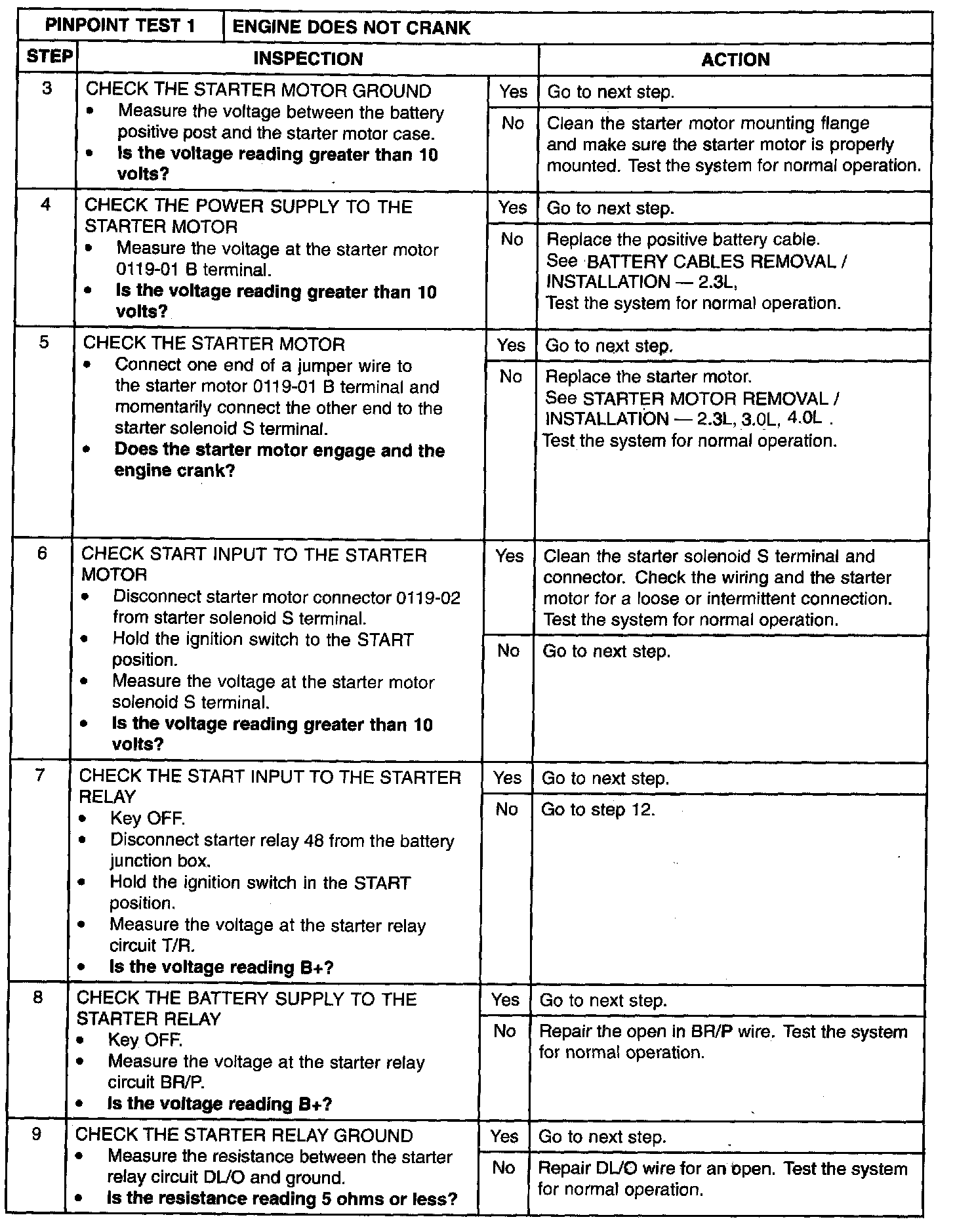

Step 3-Step 9:

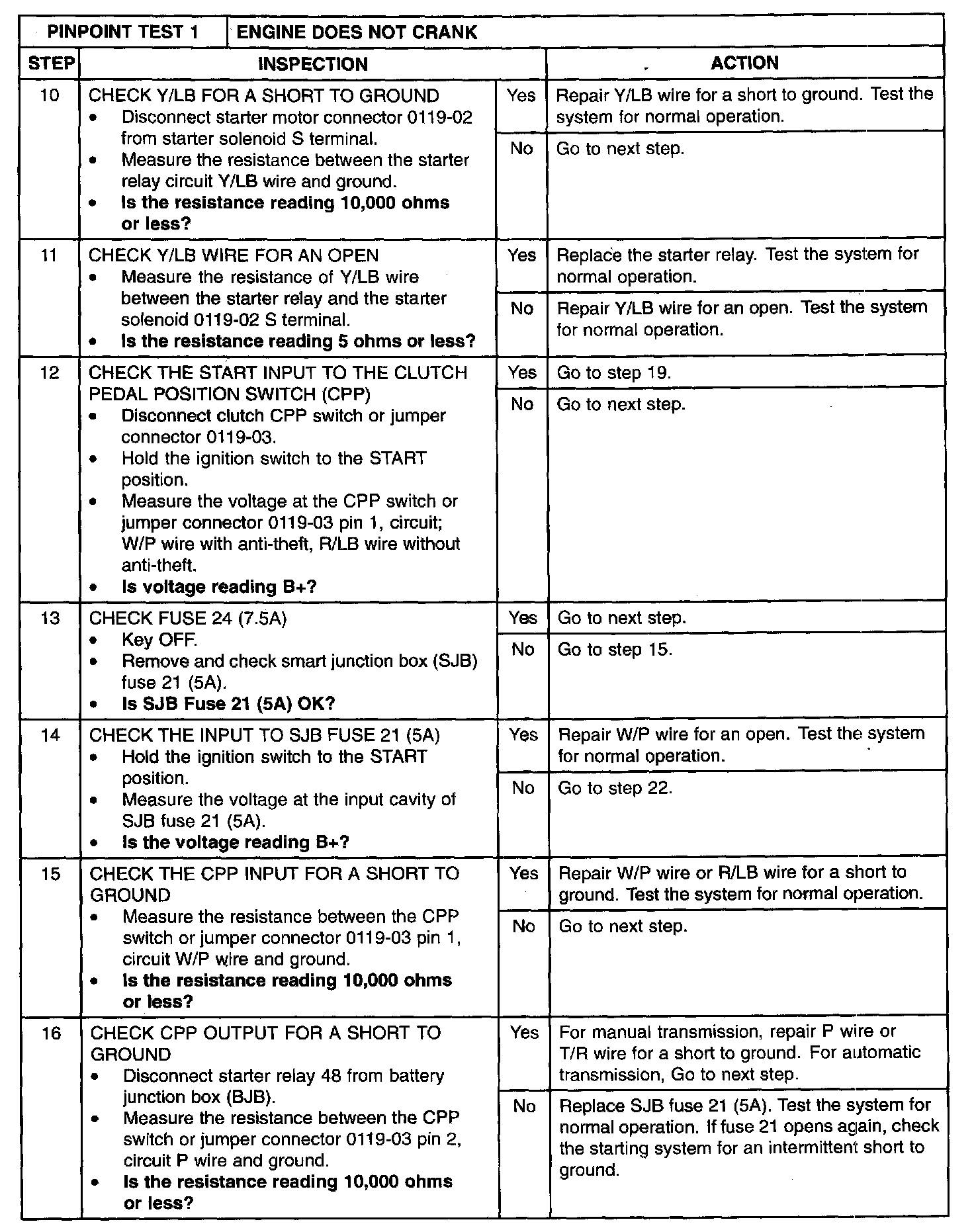

Step 10-Step 16:

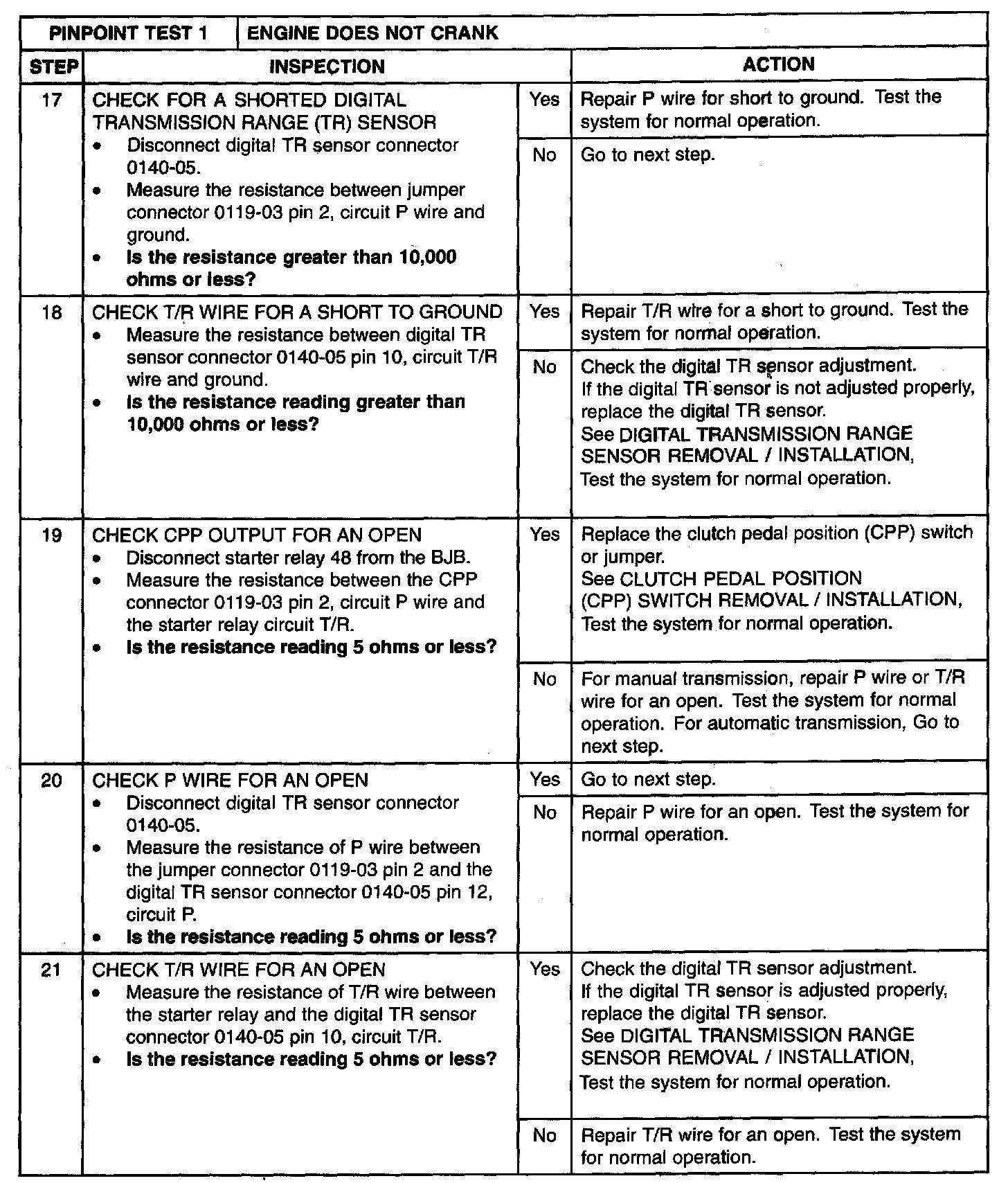

Step 17-Step 21:

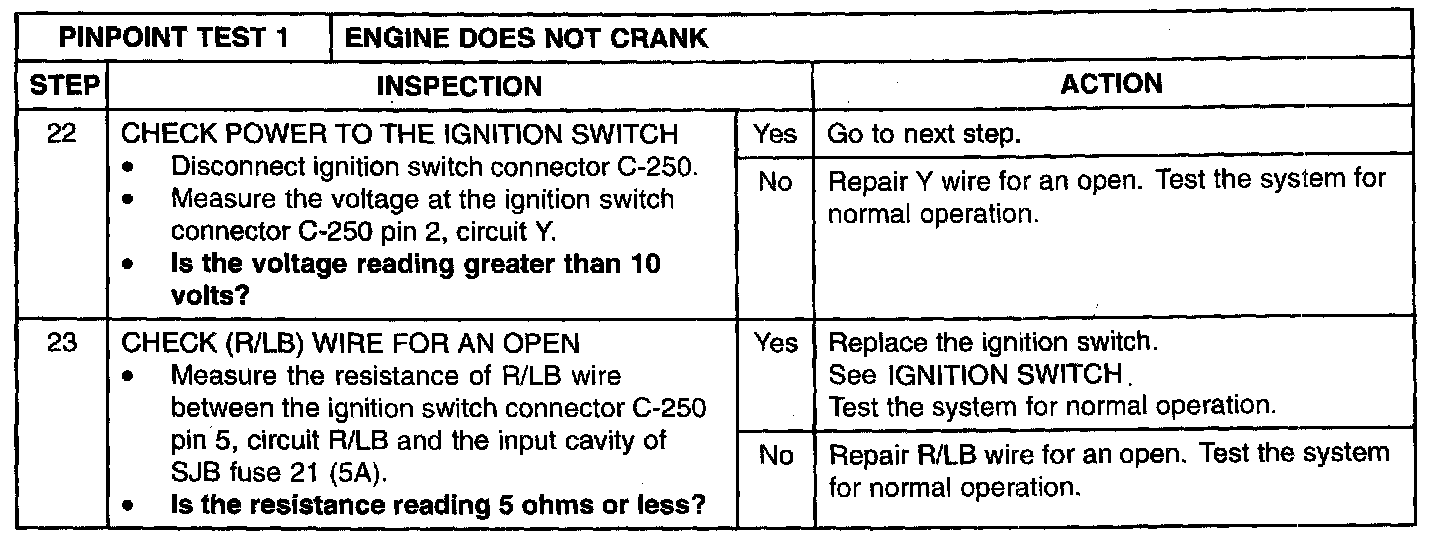

Step 22-Step 23:
