Torsion Bar: Notes

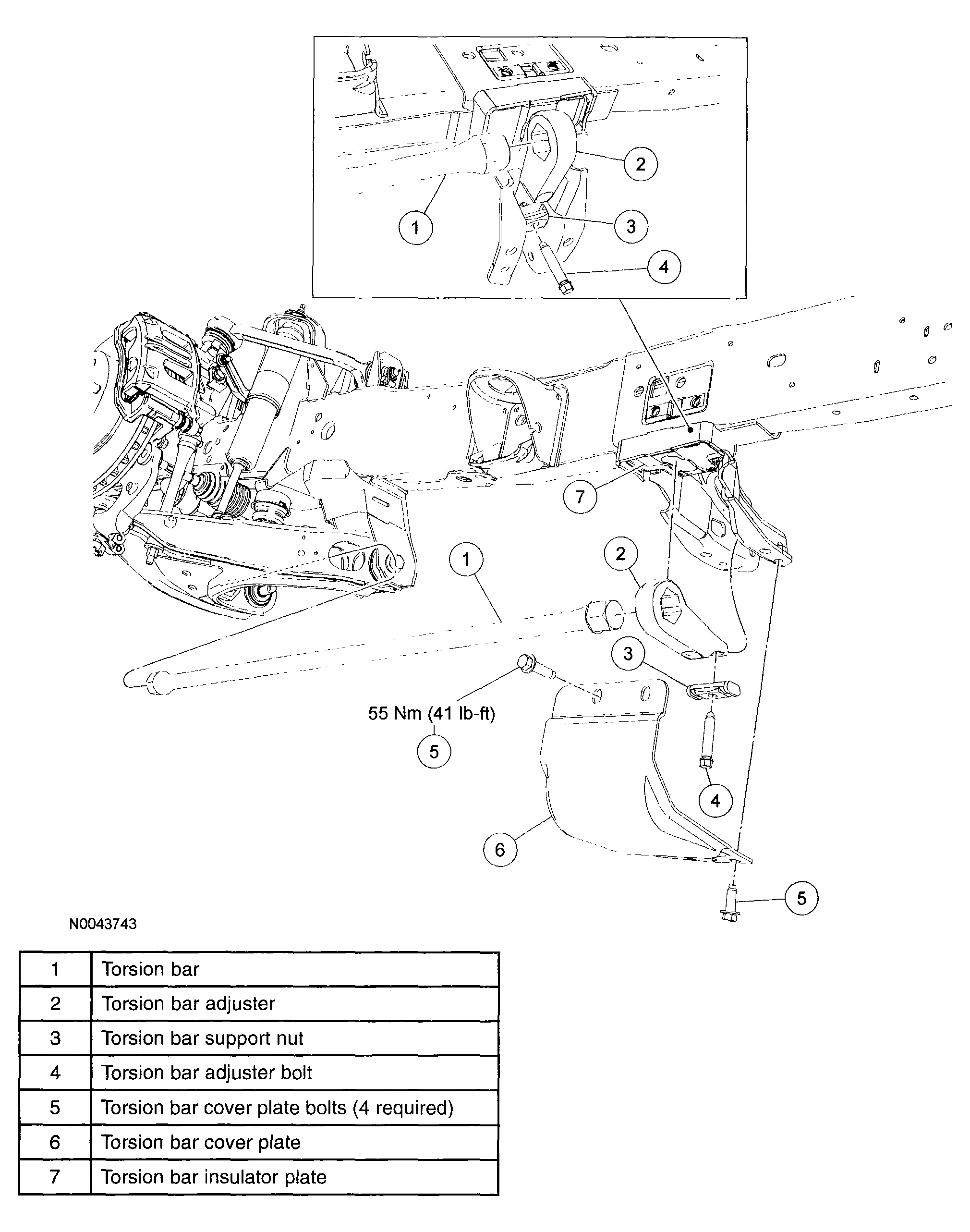

Fig 1: Torsion Bar With Torque Specifications

G04308604

Courtesy of MAZDA MOTORS CORP.
