Crankshaft Position (CKP) Sensor Removal / Installation - 2.3L: Notes

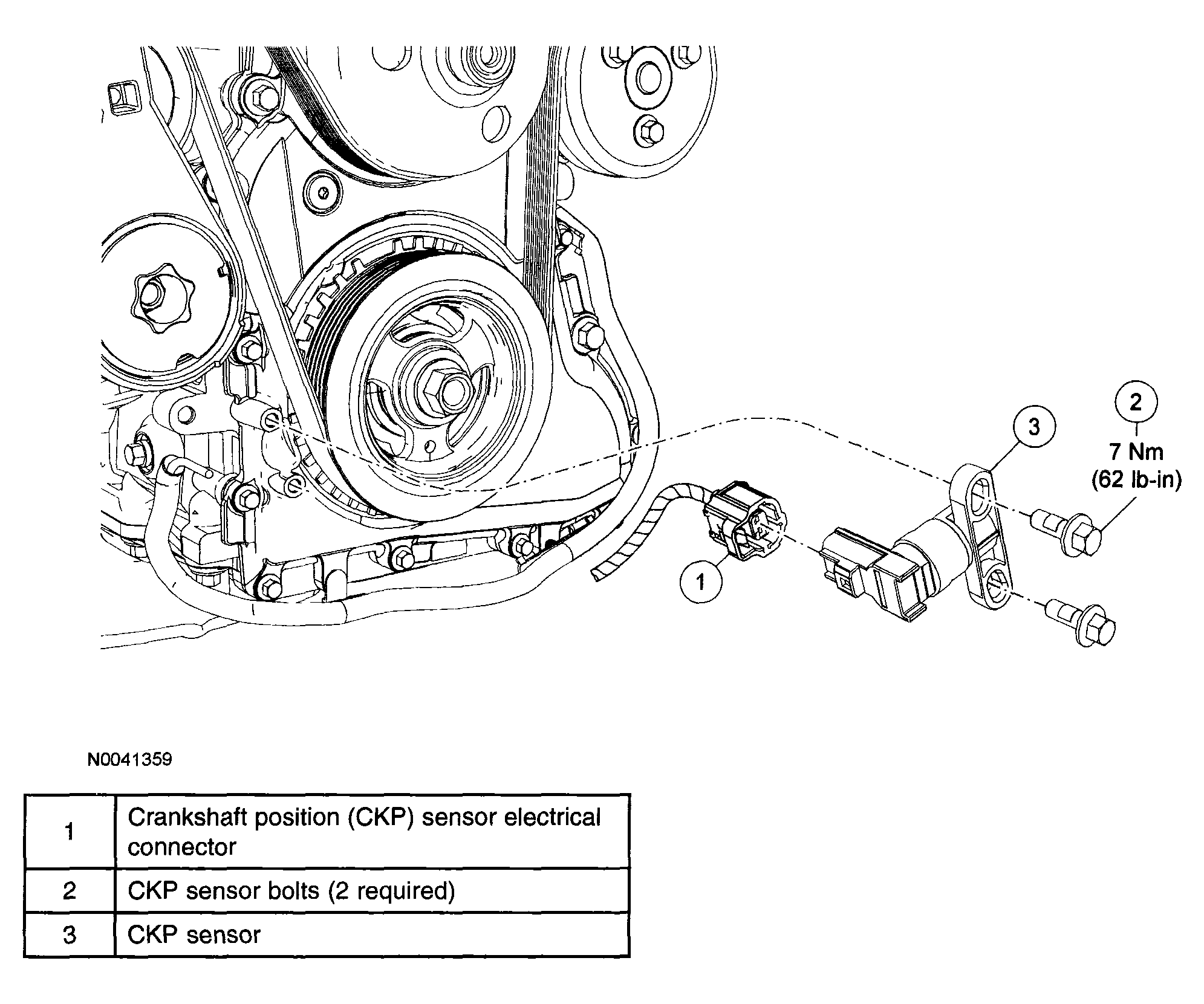

Fig 1: Removing /Installing Crankshaft Position (CKP) Sensor (2.3L)
G04308374Courtesy of MAZDA MOTORS CORP.
