Smart Junction Box (SJB) Connector End View (C2280d)

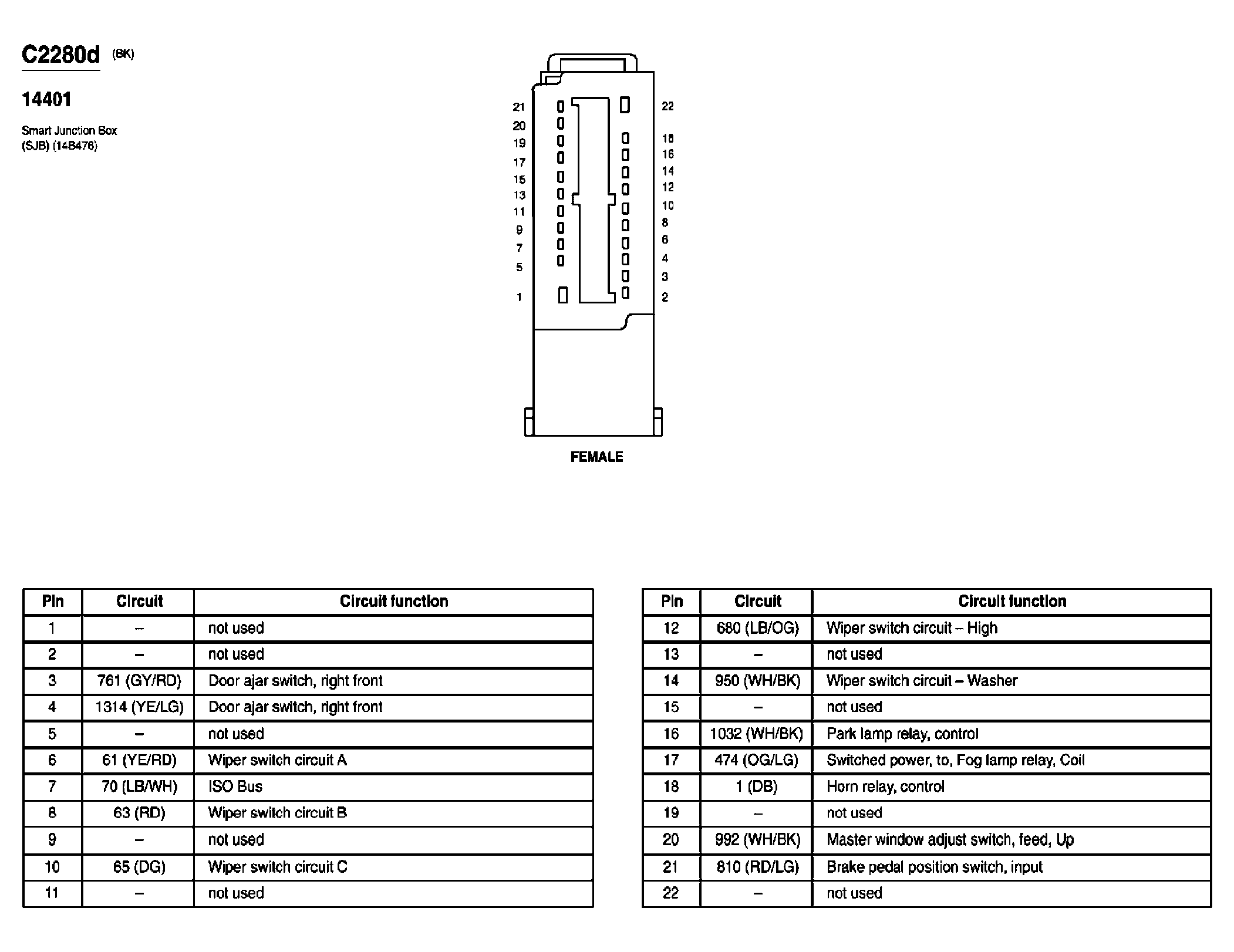

Fig 1: Smart Junction Box (SJB) Connector End View (C2280d)
G04598852Courtesy of FORD MOTOR CO.
