Mass Air Flow (MAF) Sensor Connector End View (C128)

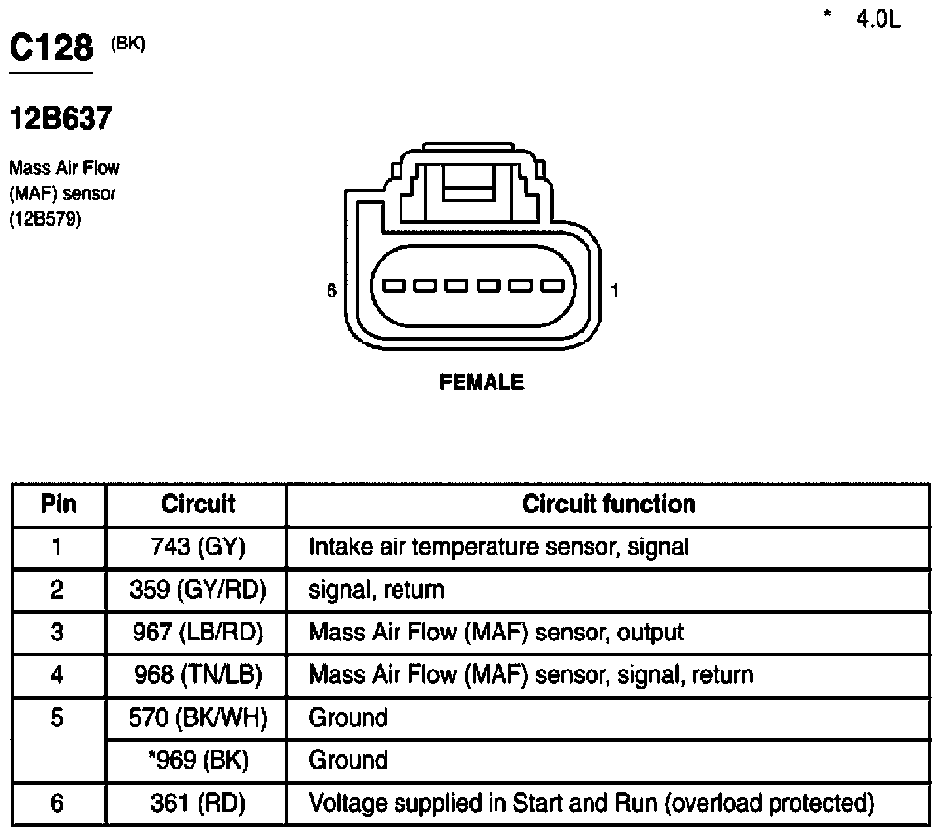

Fig 1: Mass Air Flow (MAF) Sensor Connector End View (C128)
G07847576Courtesy of FORD MOTOR CO.
