Seat Belt Location Index

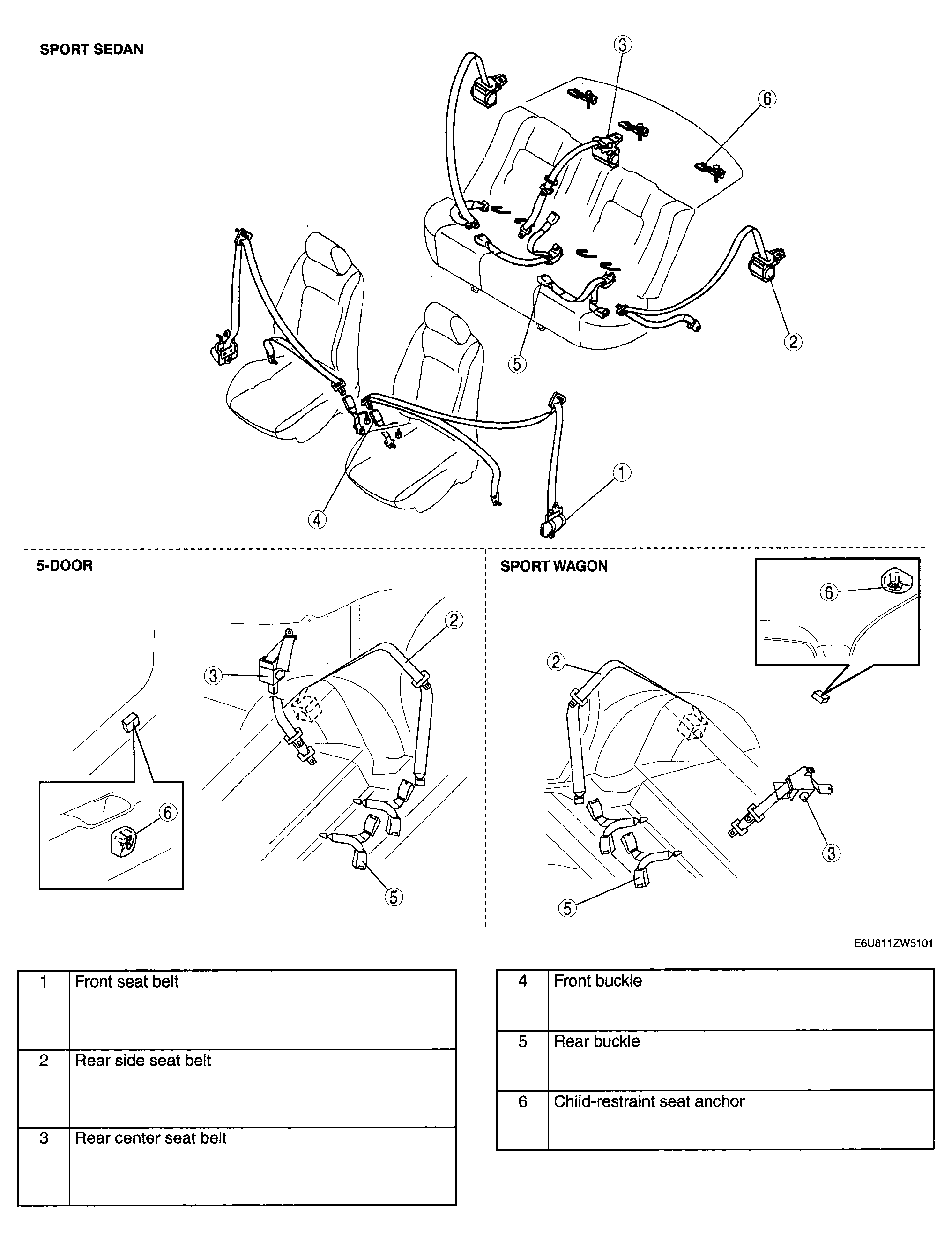

Fig 1: Identifying Seat Belt Components Location

G04326999

Courtesy of MAZDA MOTORS CORP.
