DSC Control Module Pinout Values

DSC HU/CM INSPECTION

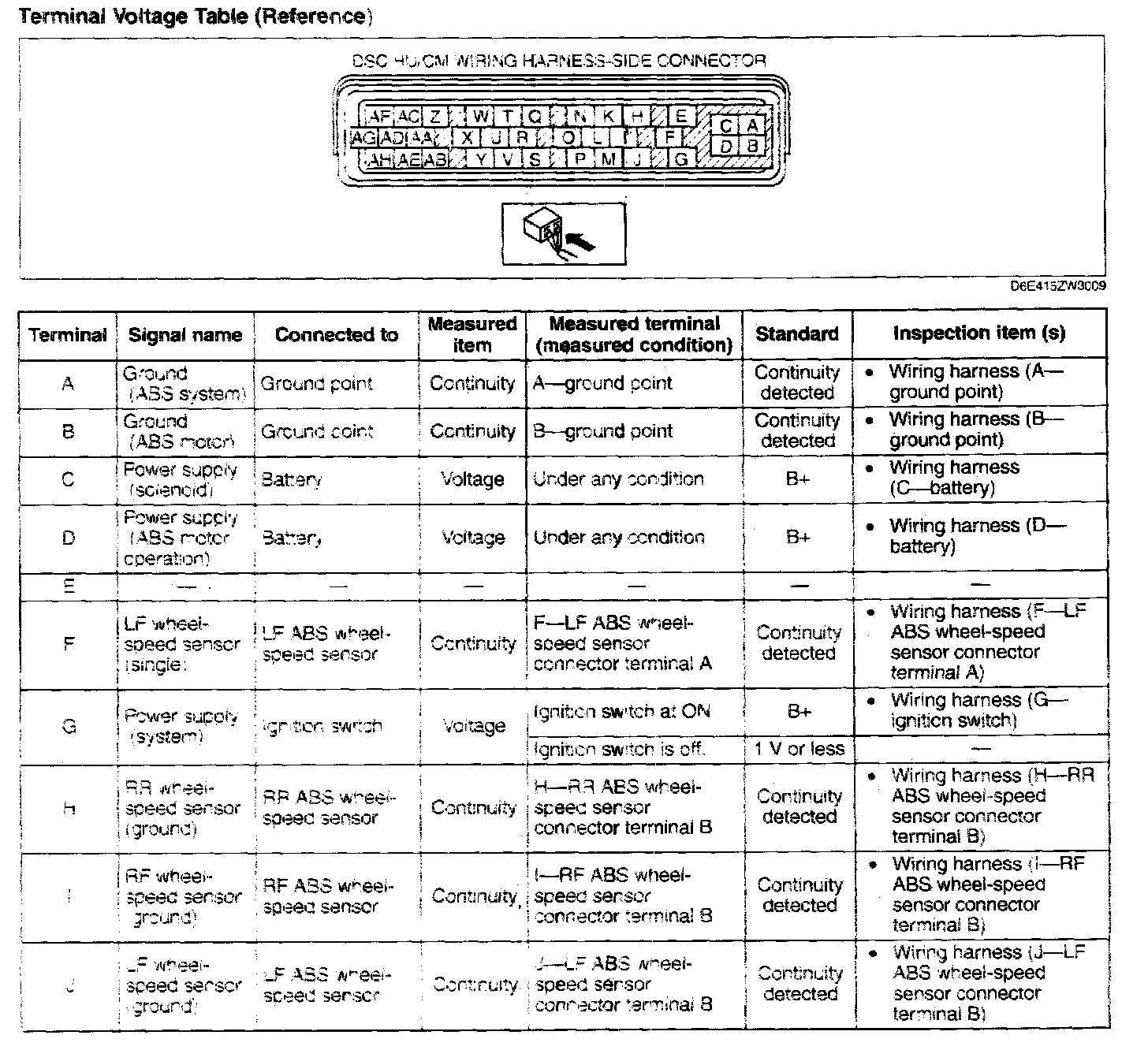

Terminal Voltage Table (Reference) (part 1):

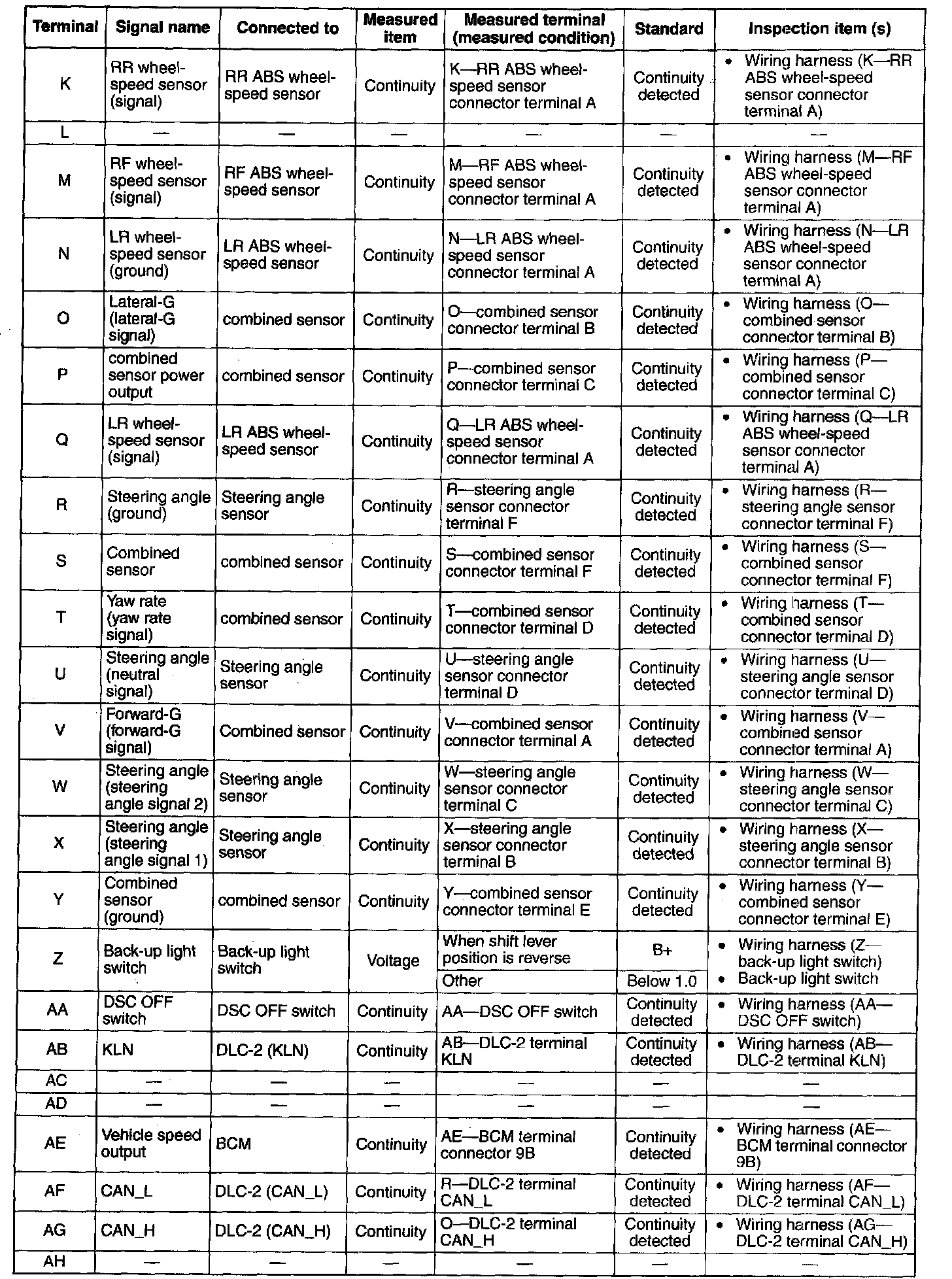

Terminal Voltage Table (Reference) (Part 2):





1. Disconnect the DSC HU/CM connector.
2. Connect the negative battery cable
3. Attach the taster lead to the DSC HU/CM wiring harness-side connector, then inspect the voltage, continuity, or resistance according to the standard (reference) on the table.
