Auto Light-Off Control Module

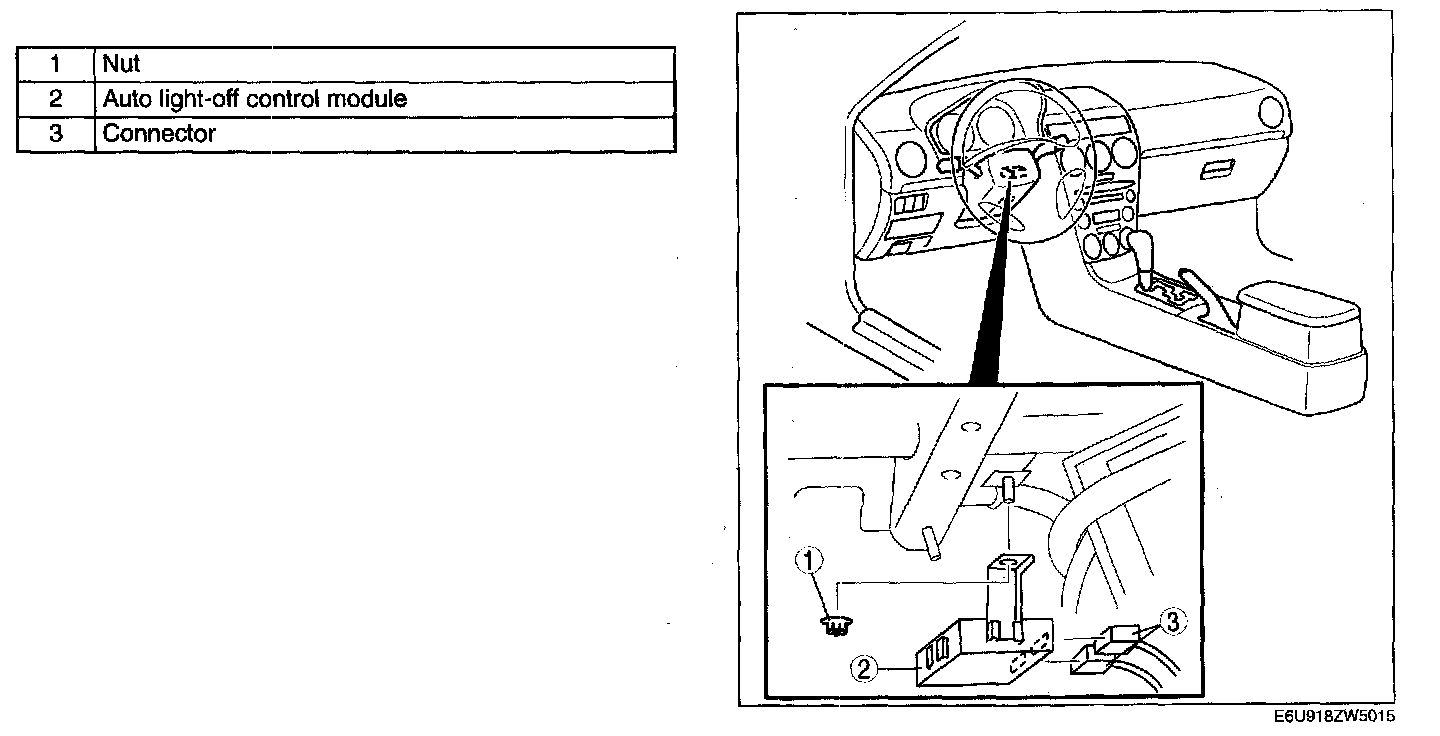

AUTO LIGHT-OFF CONTROL MODULE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.




2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
