Removal and Installation

CLIMATE CONTROL UNIT REMOVAL

1. Disconnect the negative battery cable.
2. Disconnect the air mix wire from wire clamp and link. (Manual air conditioner)




3. Remove the center panel unit.
4. Remove the screws and climate control unit. (Full-auto air conditioner)

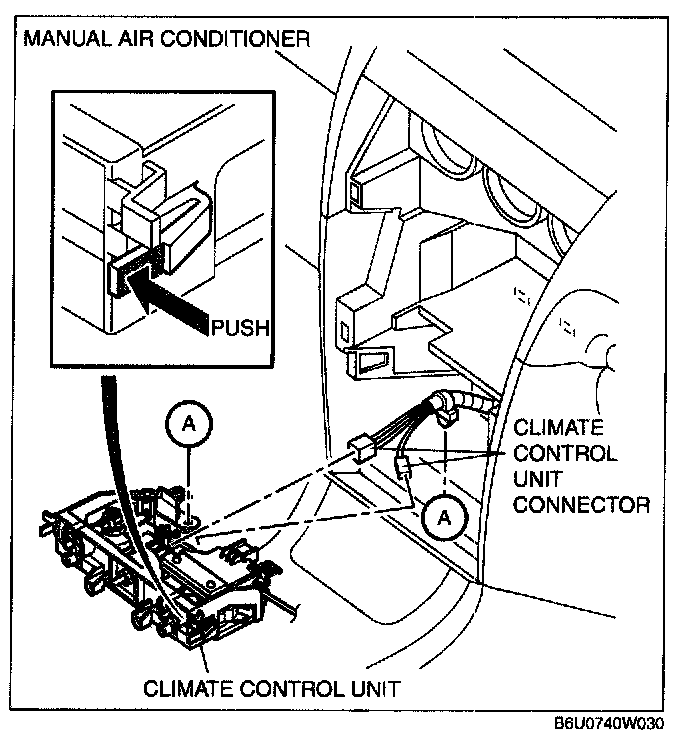

5. Release the hook and pull the climate control unit toward you. (Manual air conditioner)
6. Disconnect the climate control unit connectors and remove the climate control unit. (Manual air conditioner)

CLIMATE CONTROL UNIT INSTALLATION




1. Pass air mix wire through the following routes then connect to A/C unit. (Manual air conditioner)
2. Connect the climate control unit connectors. (Manual air conditioner)
3. Install the climate control unit to the center panel.(Full-auto air conditioner)
4. Install the center panel.
5. Adjust the climate control unit wire. (Manual air conditioner)
6. Connect the negative battery cable.
