System Schematic

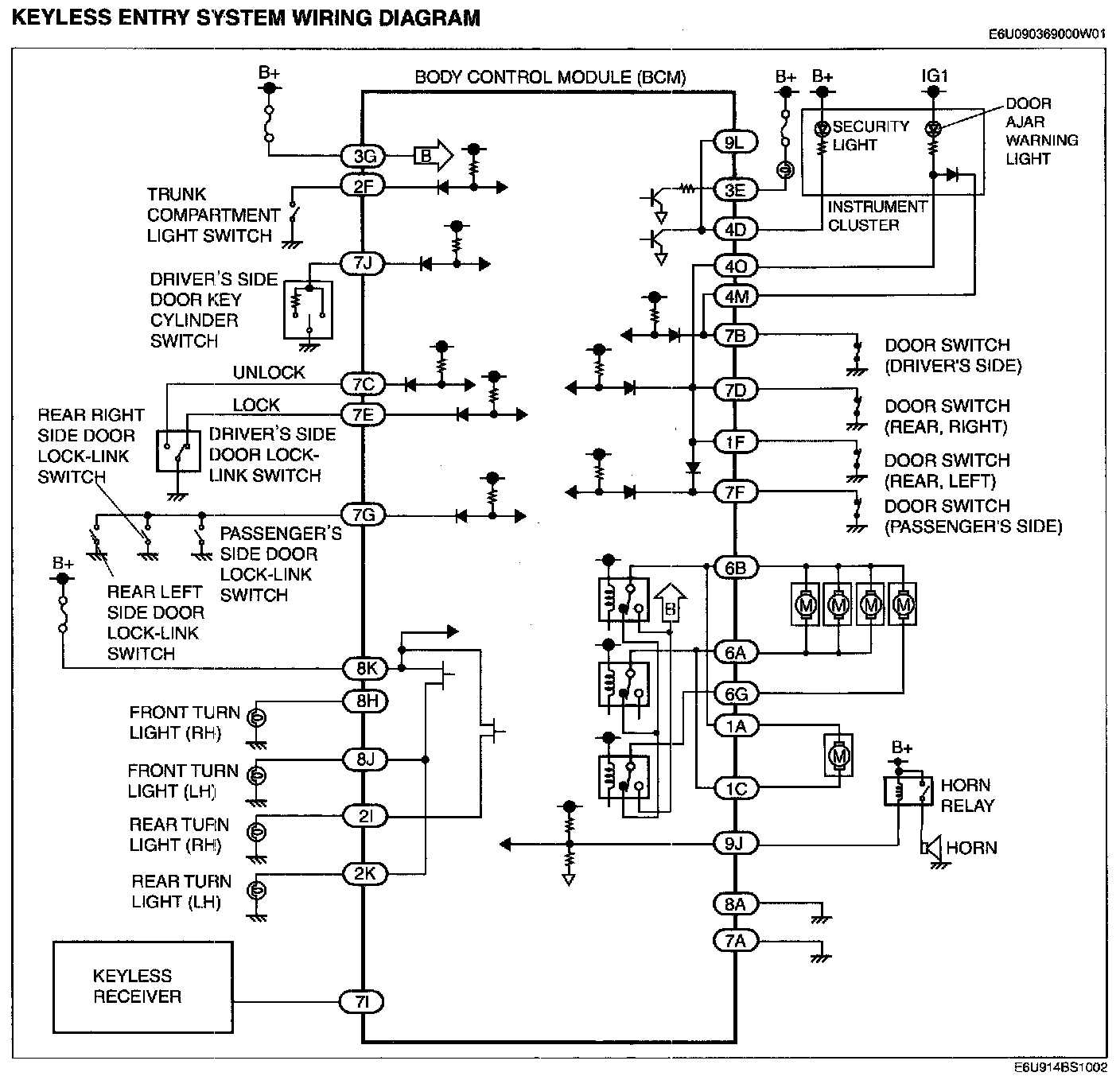

Keyless Entry System Wiring Diagram:

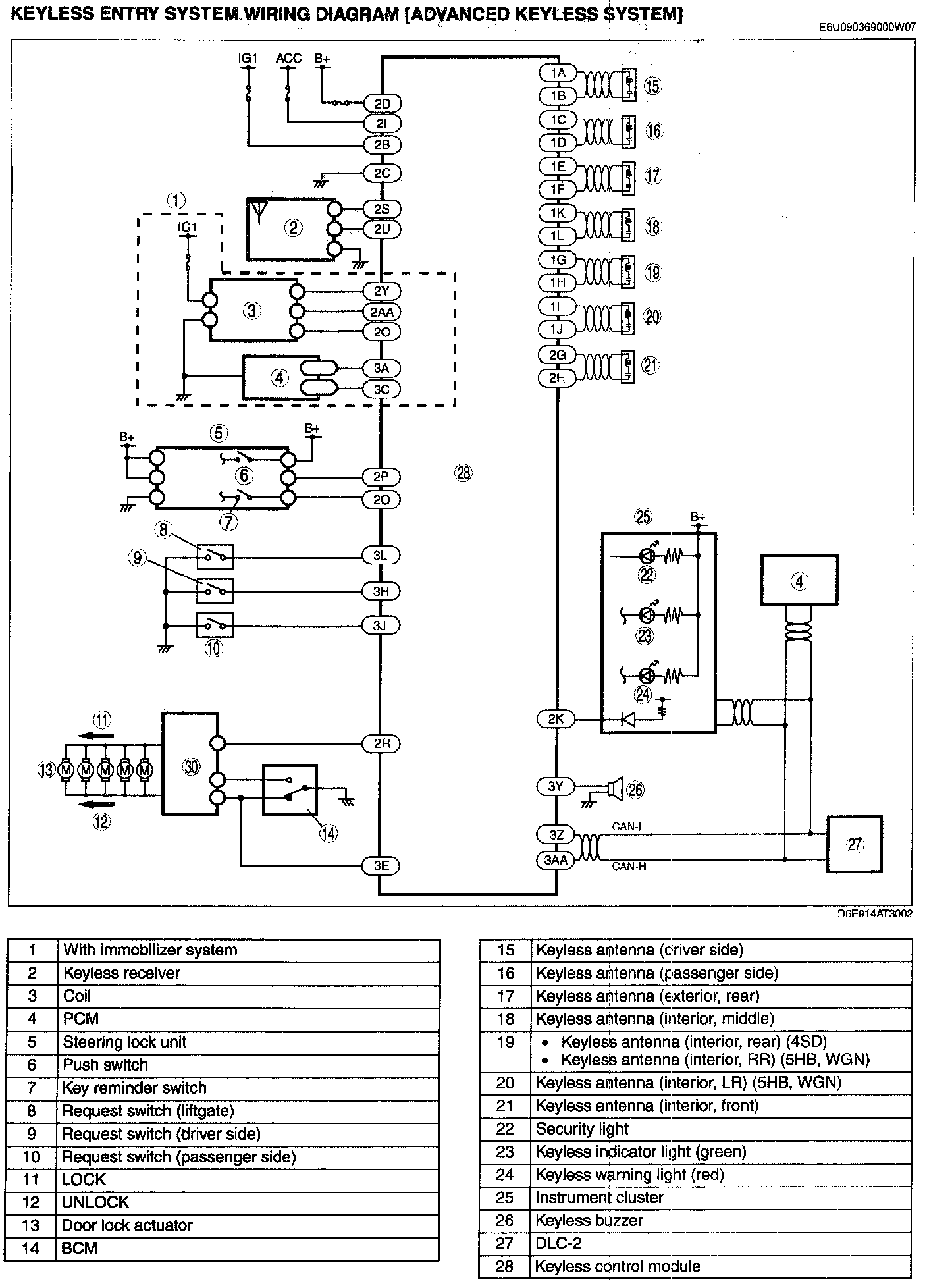

Keyless Entry System Wiring Diagram [Advanced Keyless System]:
