Keyless Entry: Locations

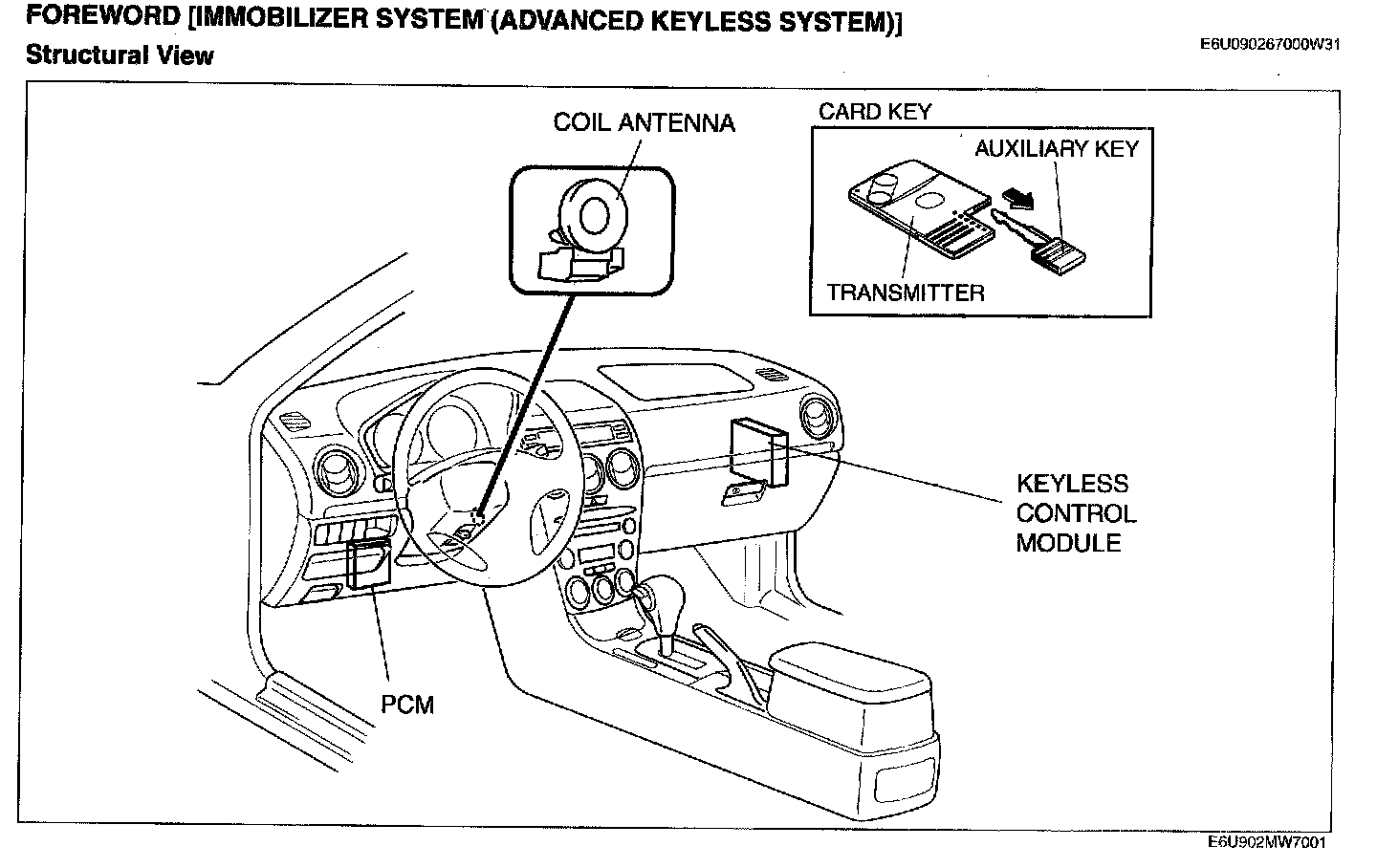

Structural View:

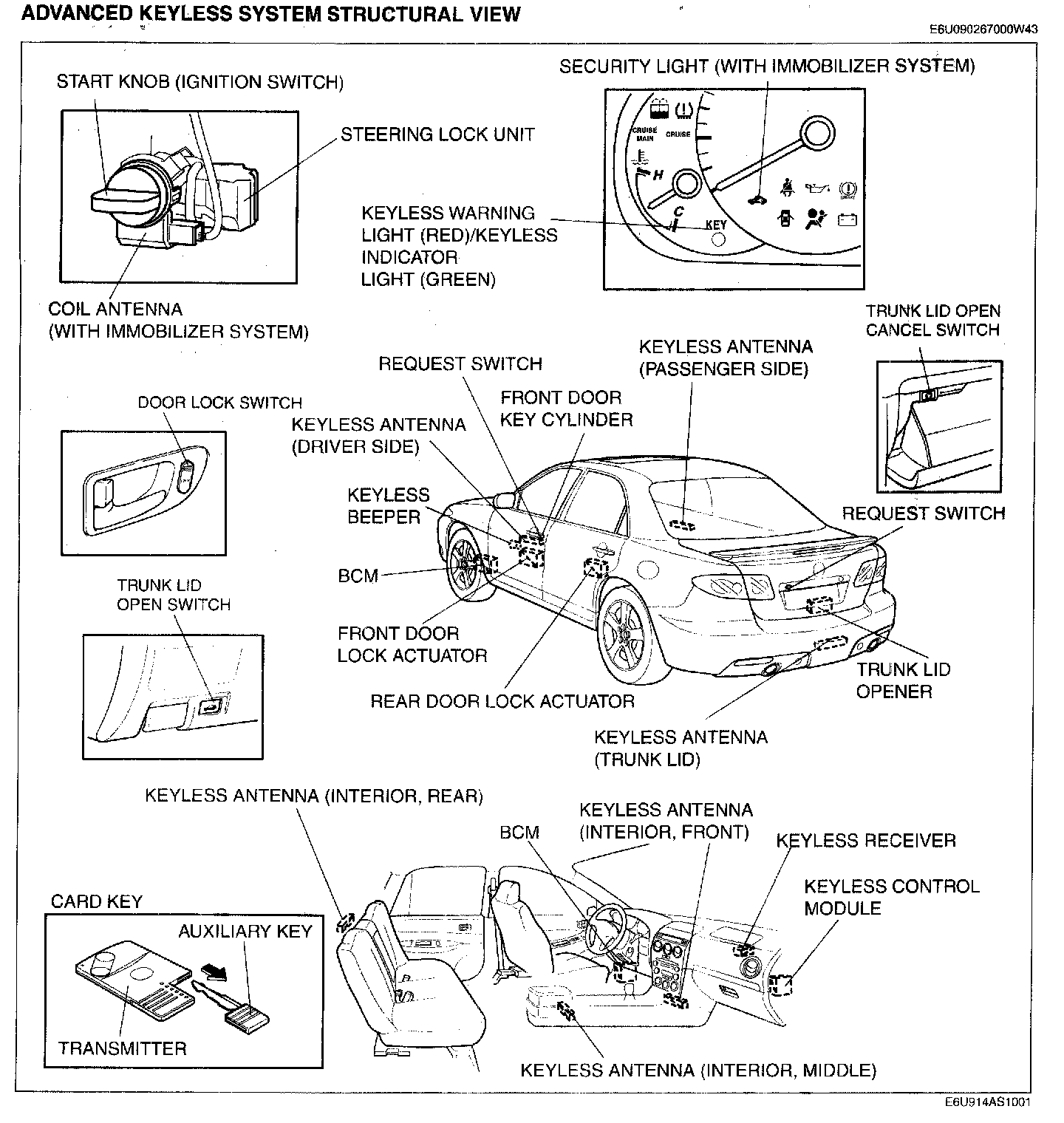

Advanced Keyless System Structural View:

Power Door Lock System And Keyless Entry Location Index [With Advanced Keyless System]:

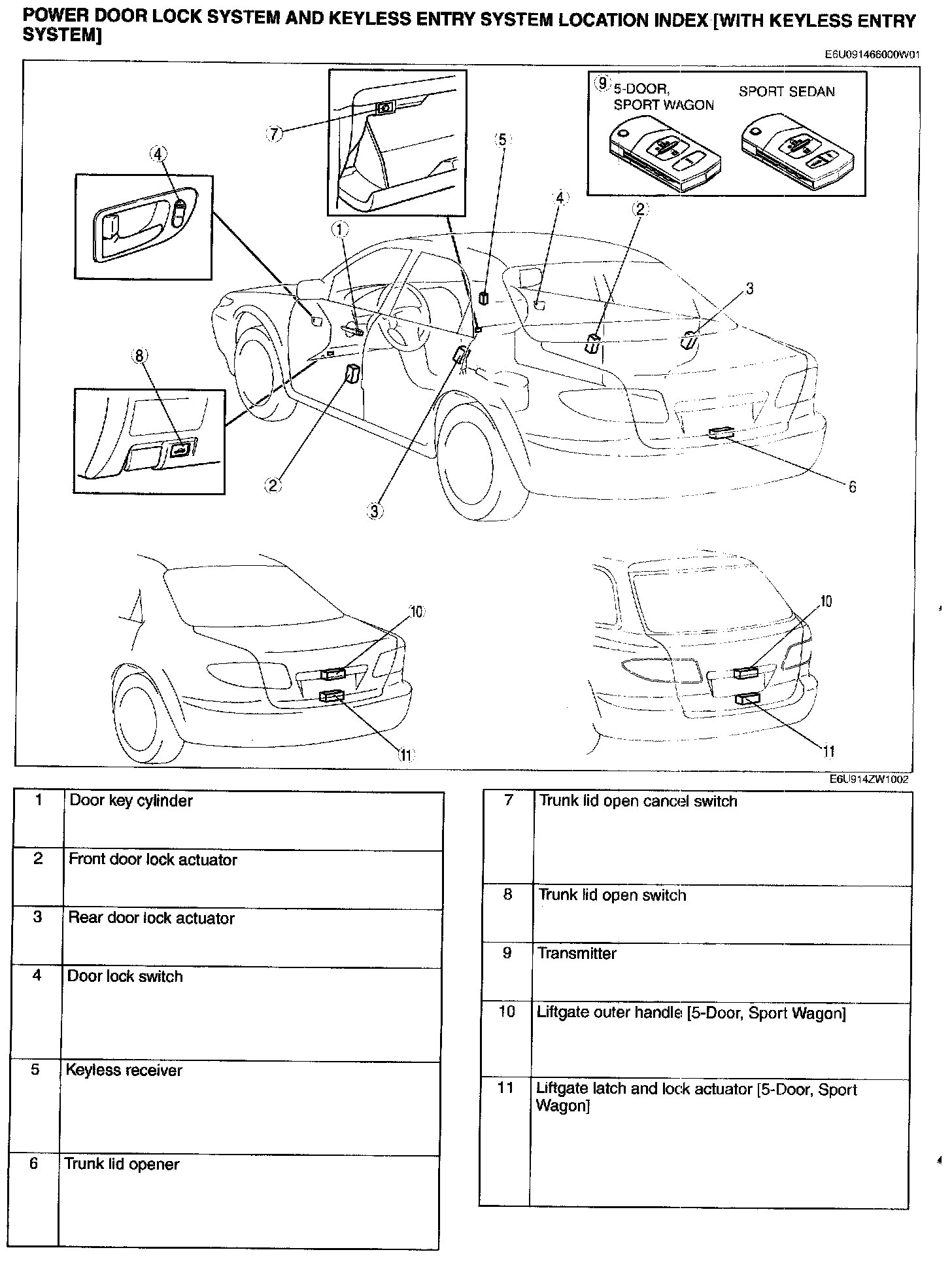

Power Door Lock System And Keyless Entry Location Index [With Keyless Entry System]:
