Mazda
>>
2006
>>
5 Touring, 2.3 L
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting [Engine Control System L3)
>>
Symptom Troubleshooting Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Symptom Troubleshooting Wiring Diagram

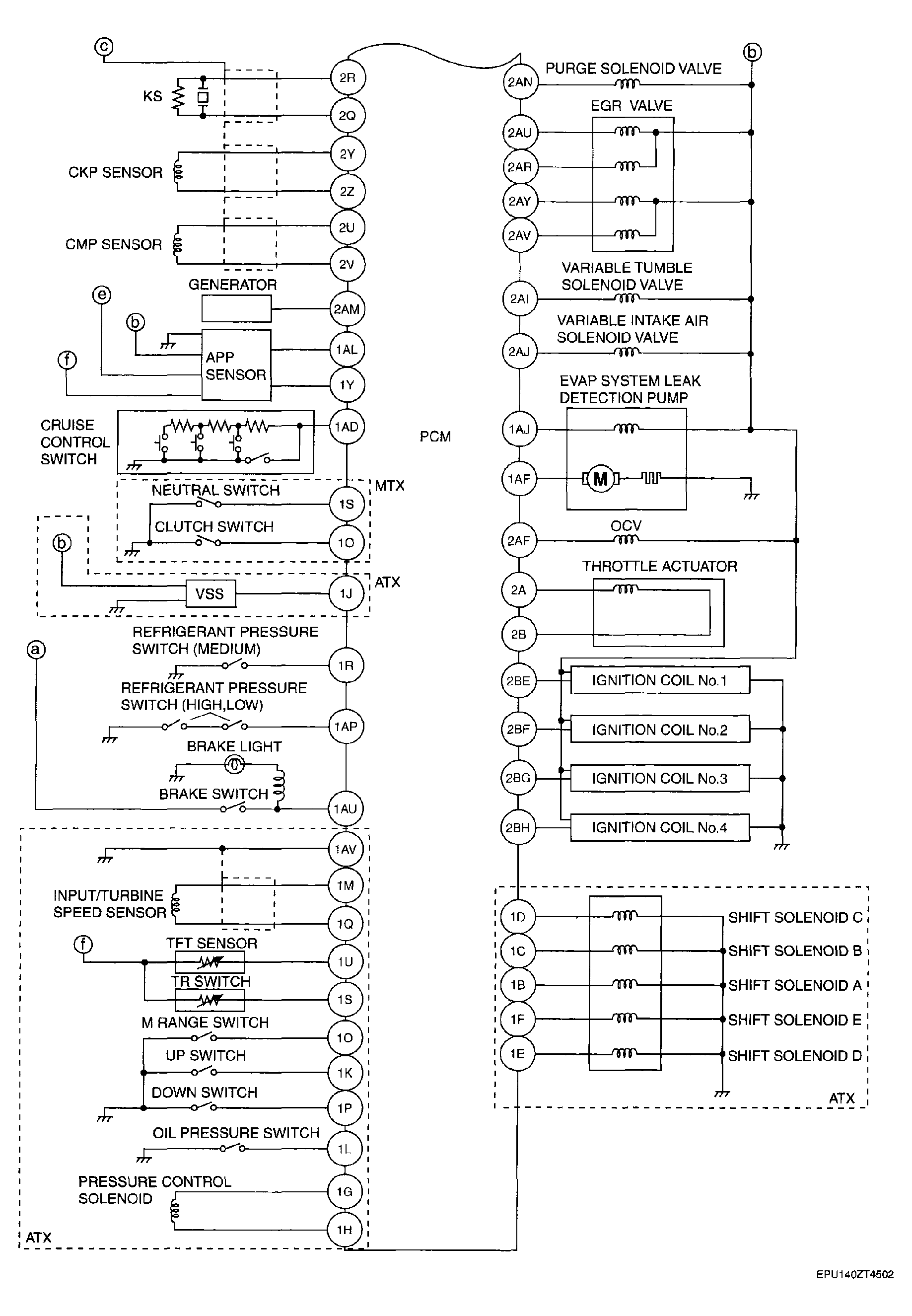

Fig 1: Symptom Troubleshooting Wiring Diagram [L3] (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

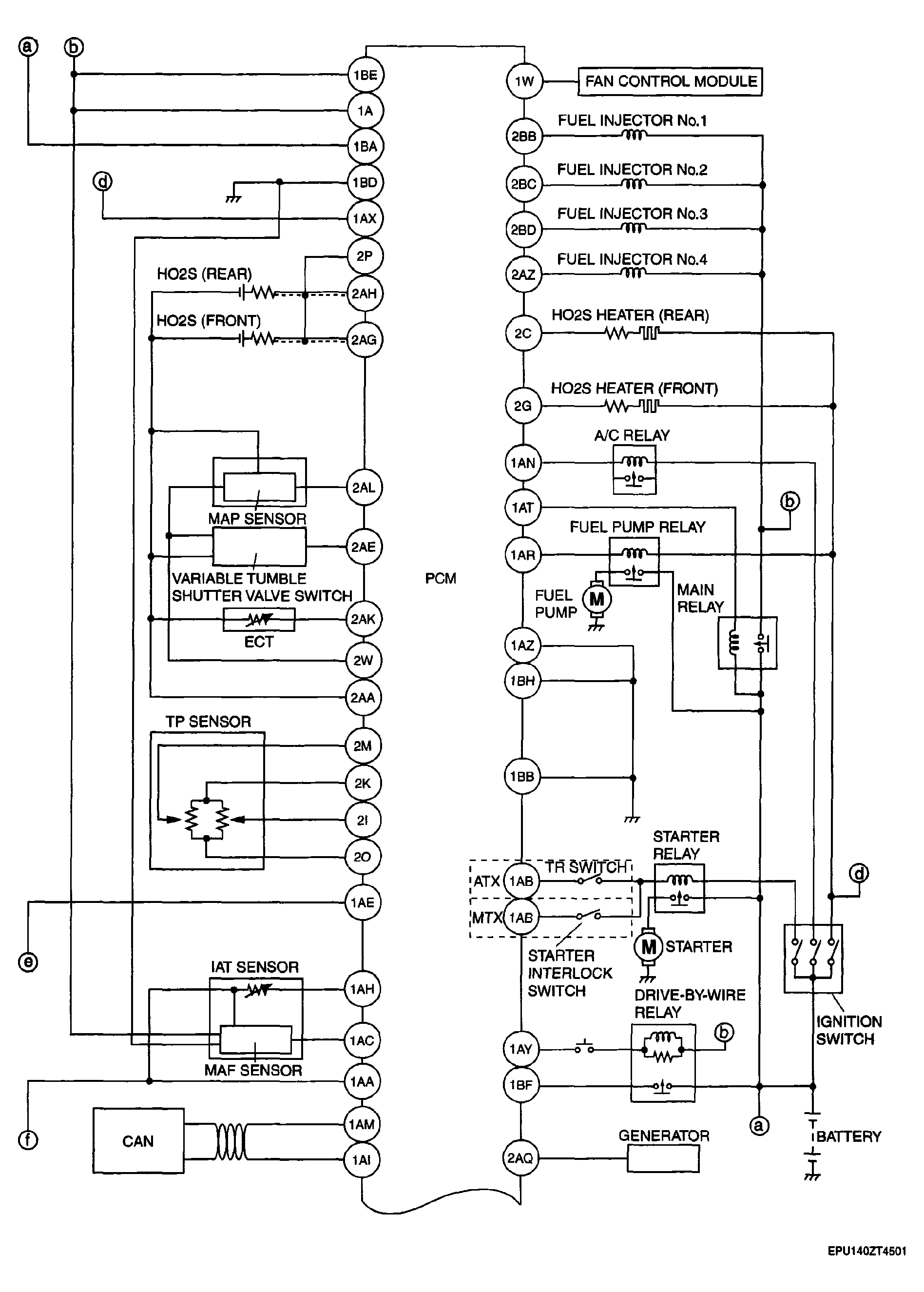

Fig 2: Symptom Troubleshooting Wiring Diagram [L3] (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
