Central Control Module: Testing and Inspection

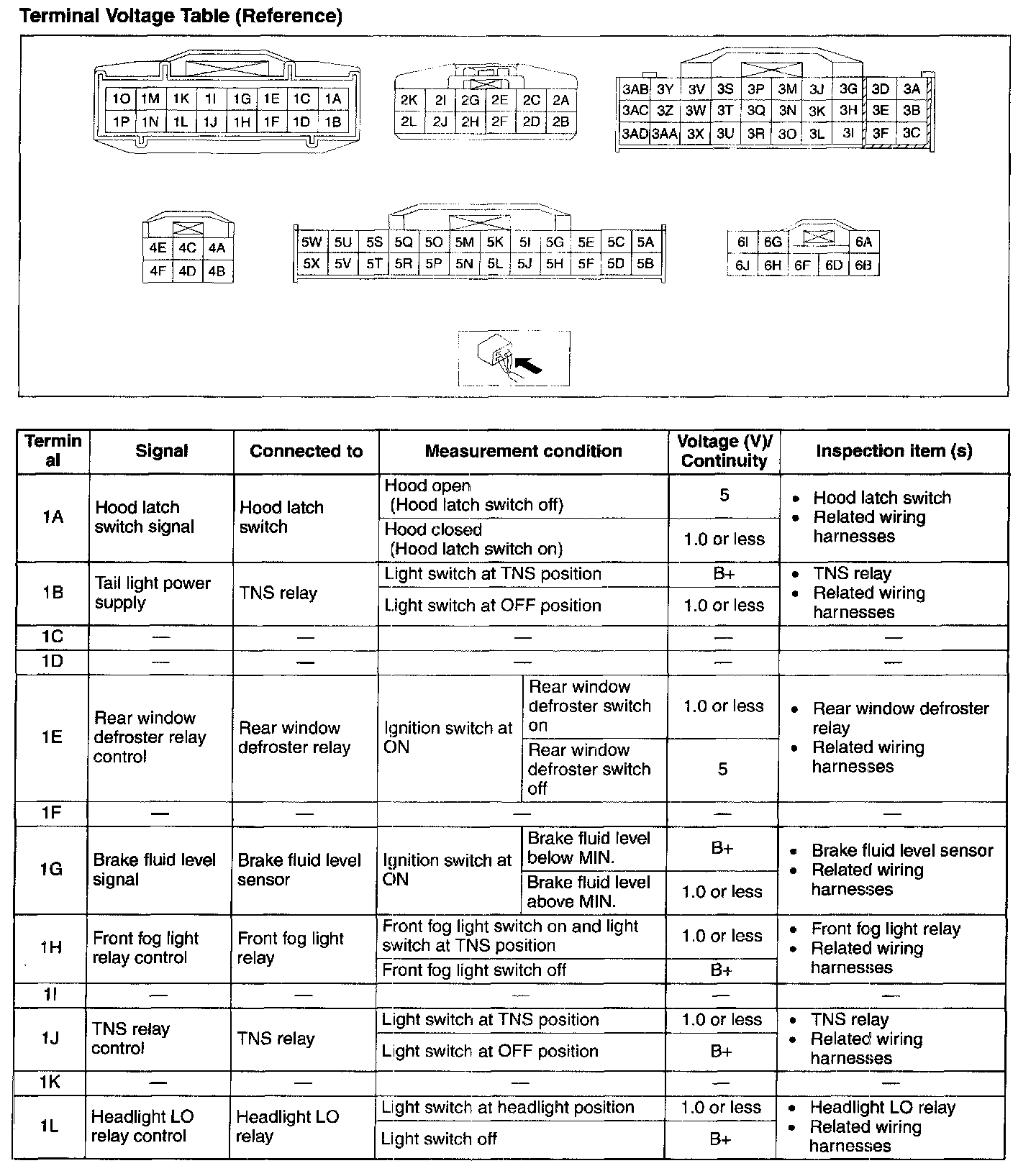

Terminal Voltage Table (Reference) (Part 1):

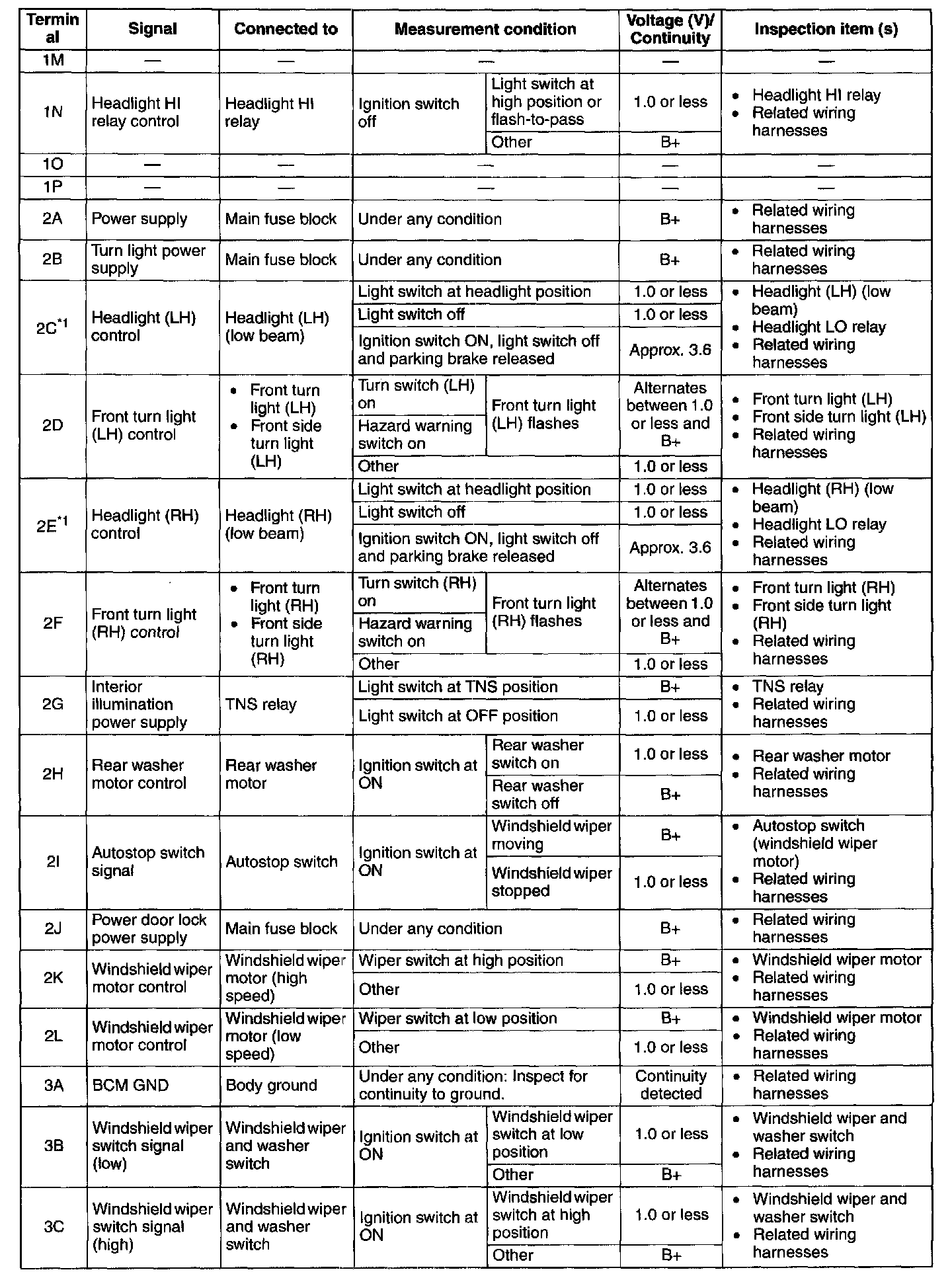

Terminal Voltage Table (Reference) (Part 2):

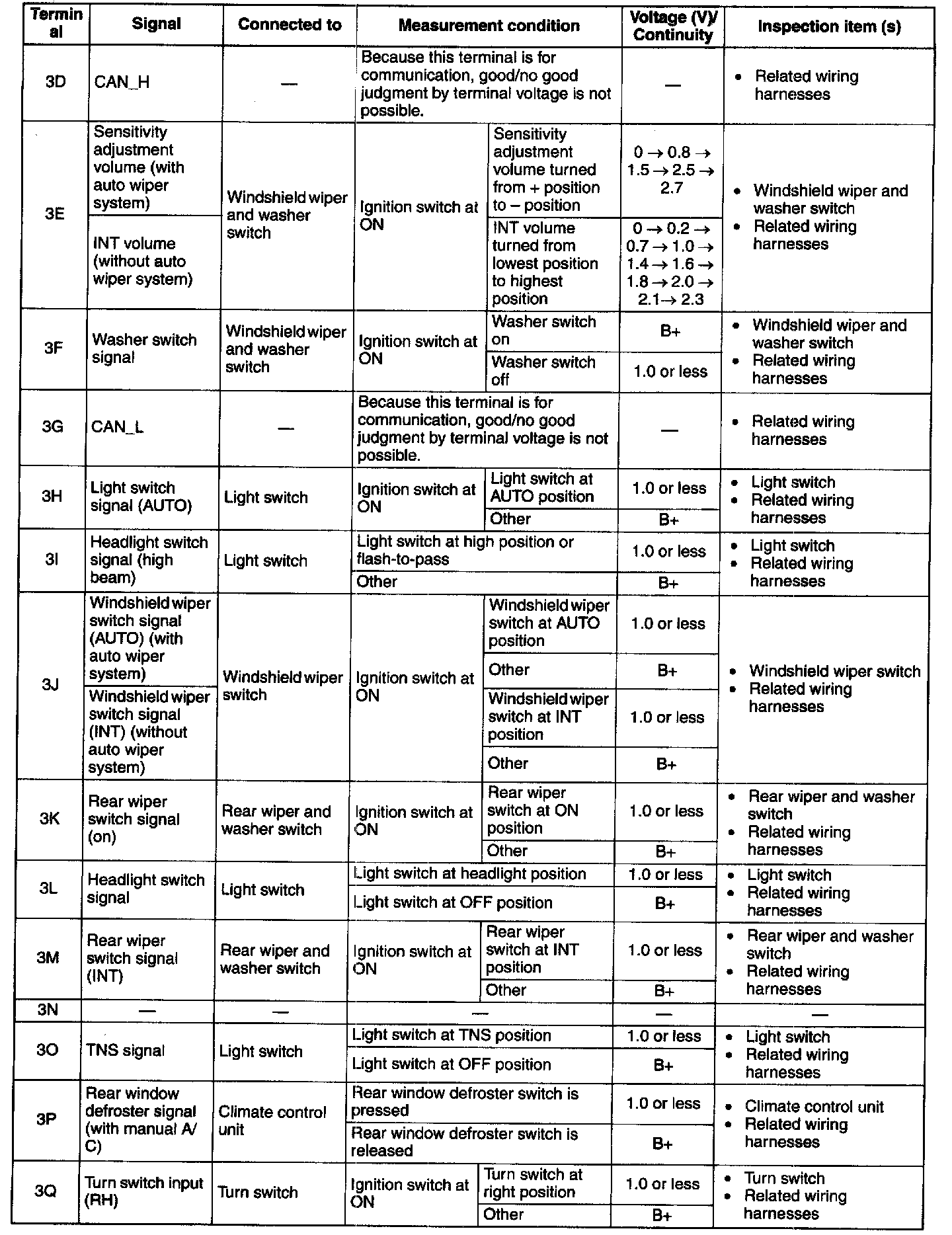

Terminal Voltage Table (Reference) (Part 3):

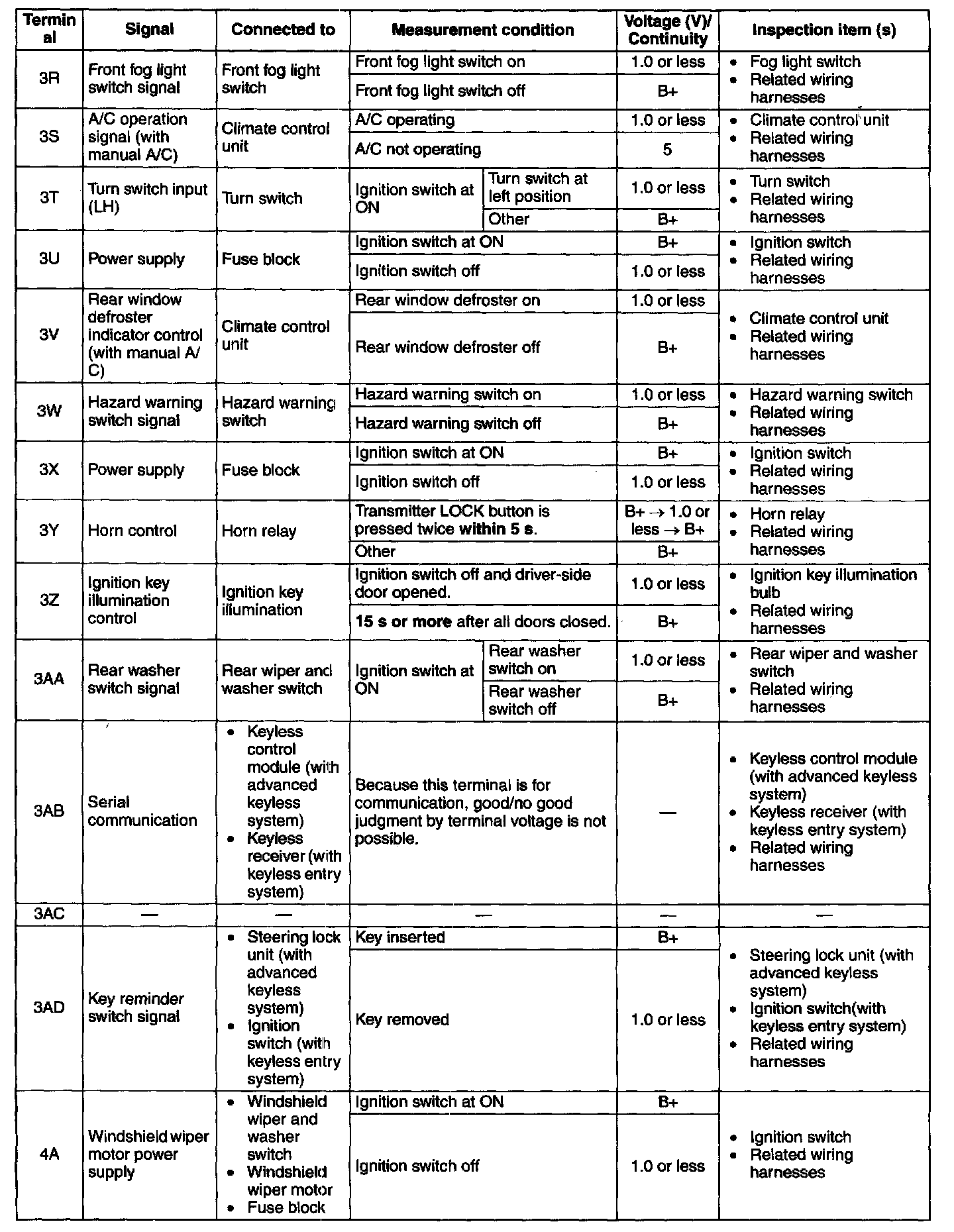

Terminal Voltage Table (Reference) (Part 4):

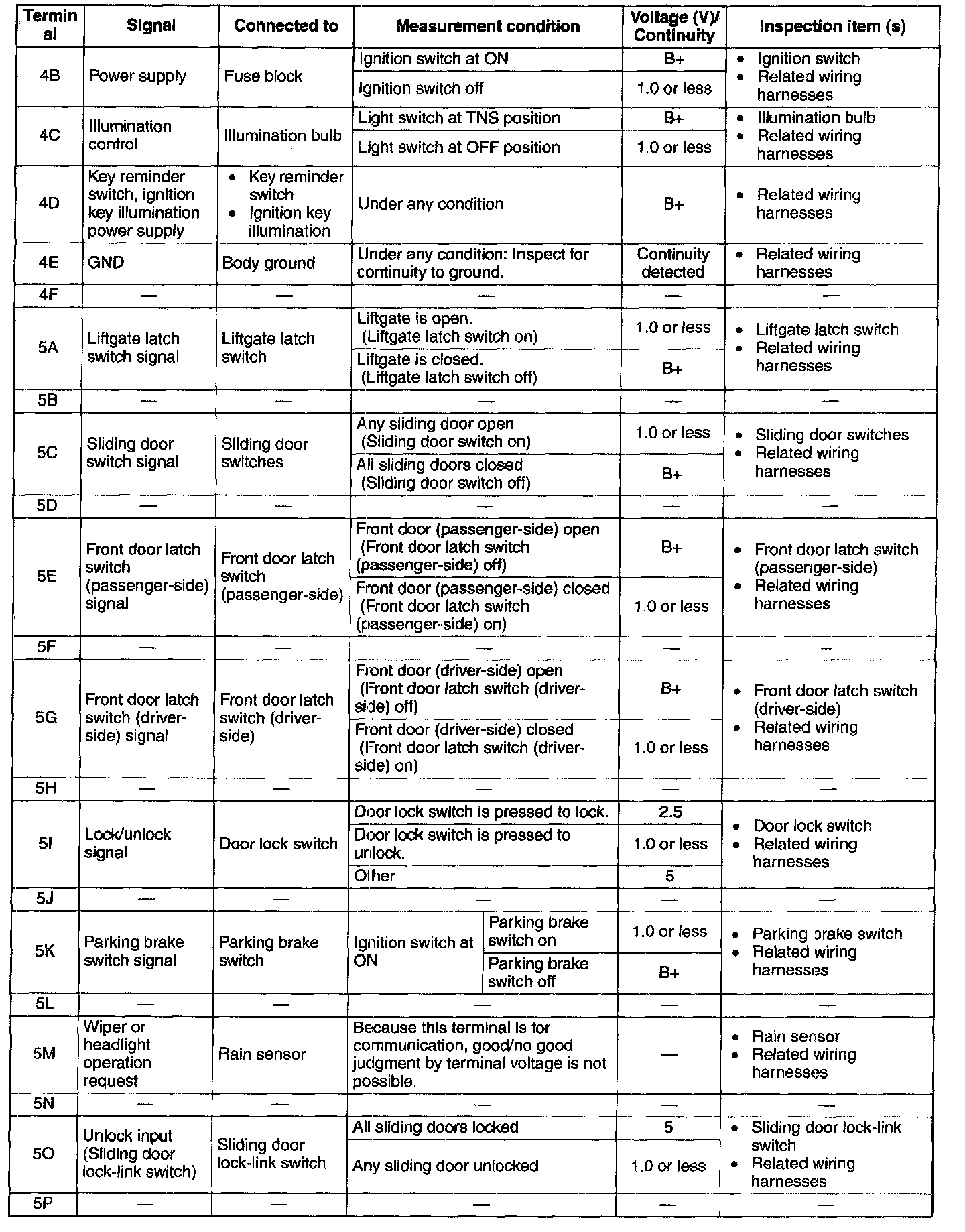

Terminal Voltage Table (Reference) (Part 5):

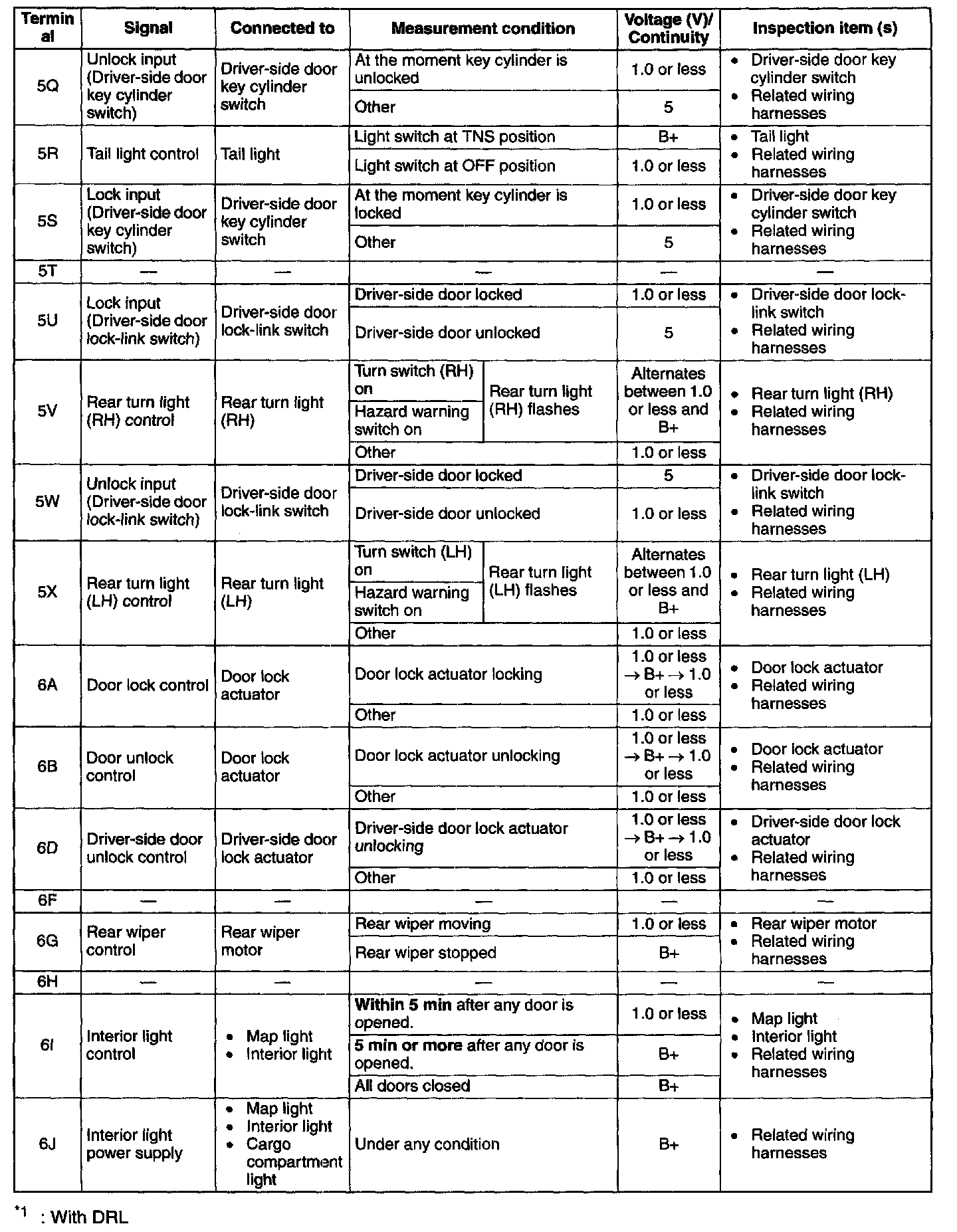

Terminal Voltage Table (Reference) (Part 6):
