Battery Removal/Installation [LF, L3]: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

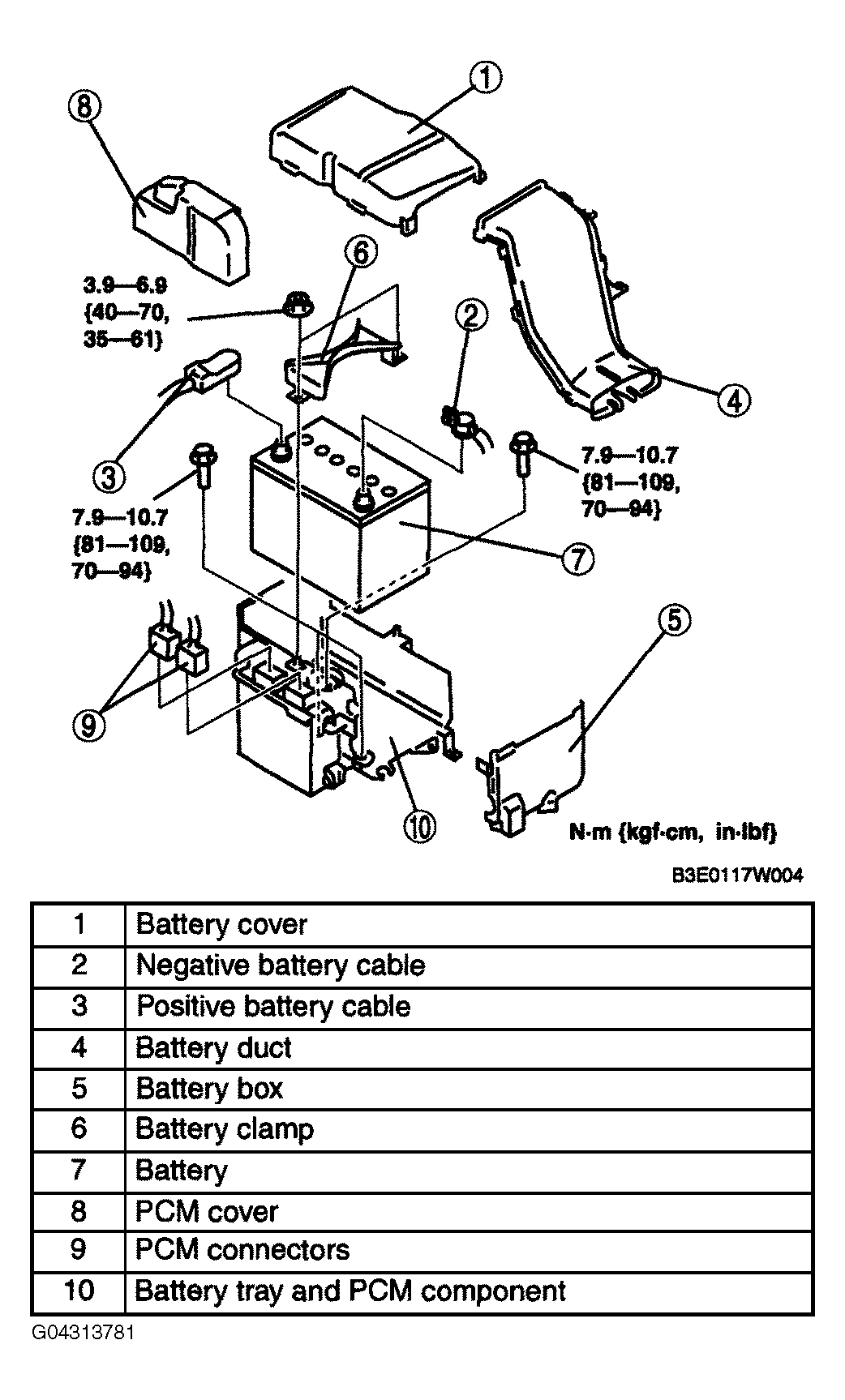

    Fig 1: Removal/Installation Of Battery & Torque Specification
    G04313781Courtesy of MAZDA MOTORS CORP.
