Power Window Main Switch Inspection

POWER WINDOW MAIN SWITCH INSPECTION

1. When inspecting the passenger-side and rear power windows, turn the power-cut switch to UNLOCK.

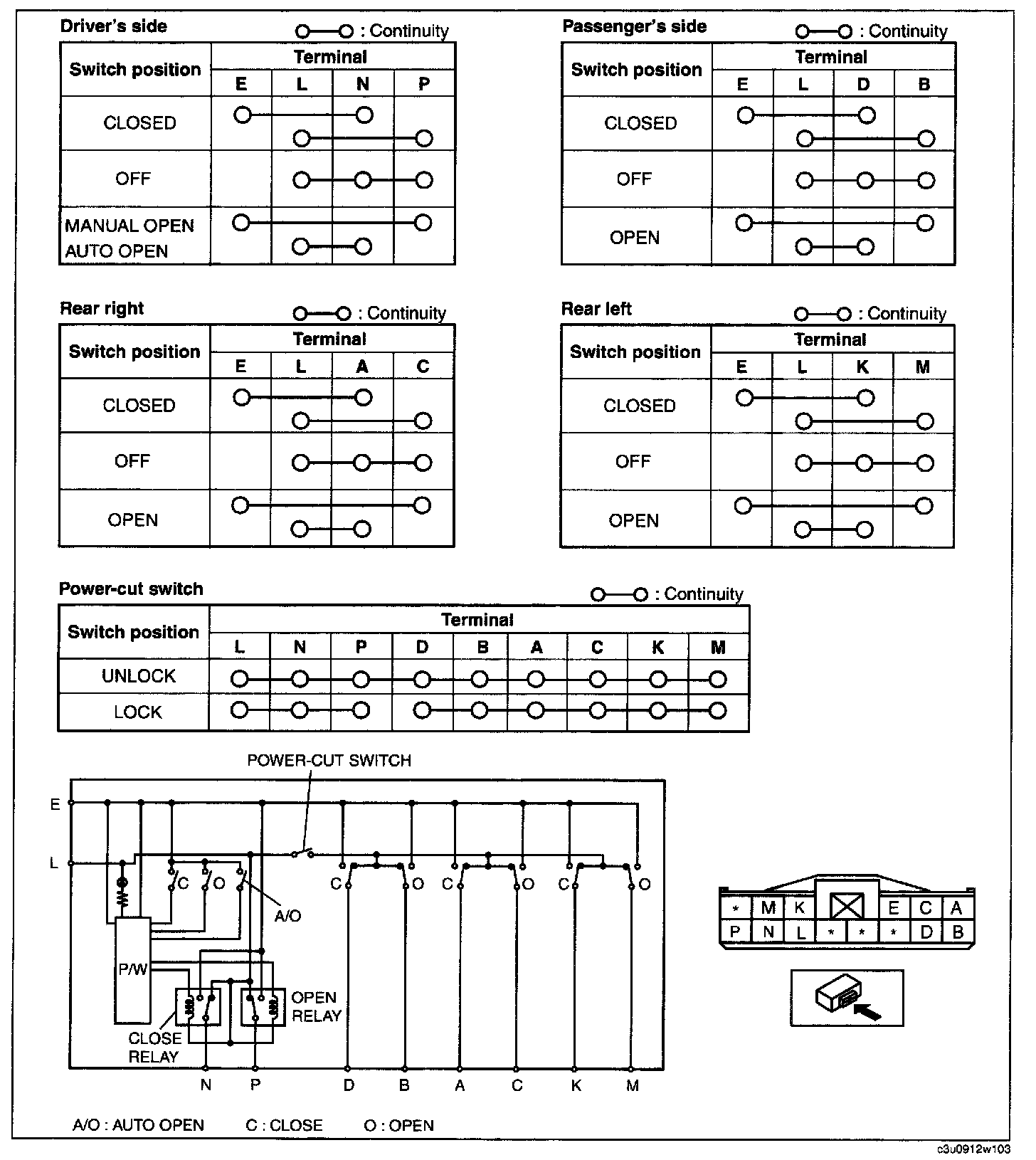

2. Inspect for continuity between the power window main switch terminals.
- It not as specified, replace the power window main switch.

3. Connect battery positive voltage to terminal E and ground to terminal I. Verify that there is continuity.
- If not as specified, replace the power window main switch.
