System Specifications
Crankshaft pulley lock boltTightening torque
1. 96-104 N-m (9.8-10.6 kgf-m, 70.9-76.7 ft-lbf)
2. 87°-93°

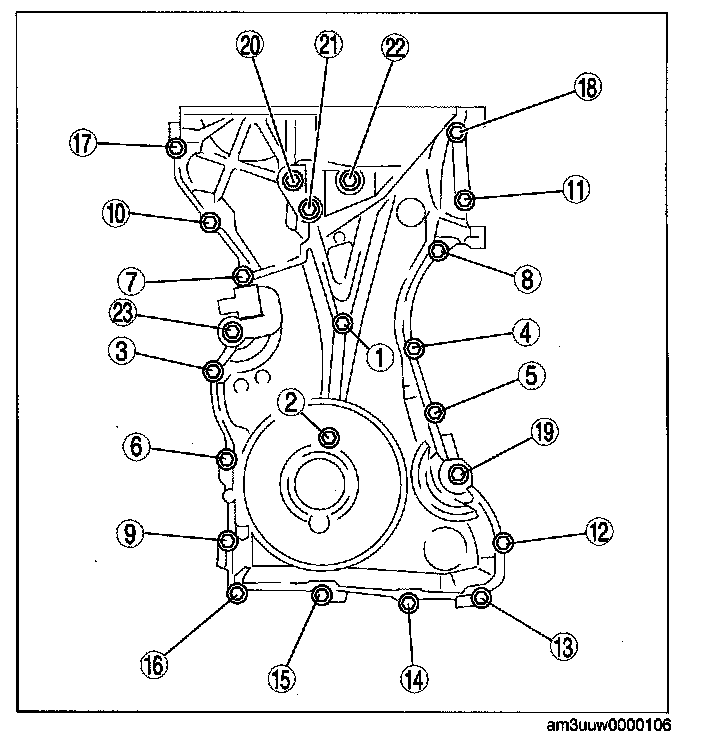

[LF, L3]
Engine Front Cover
Bolt No. 1-18 8.0-11.5 N-m {81.6-117.2 kgf-cm, 70.9-101.7 in-lbf}
Bolt No. 19-22 40-55 N-m {4.1-5.6 kgf-m 29.7-40.5 ft-lbf}
Bolt No. 23 20-30 N-m {2.1-3.0 kgf-m, 14.8-22.1 ft-lbf}

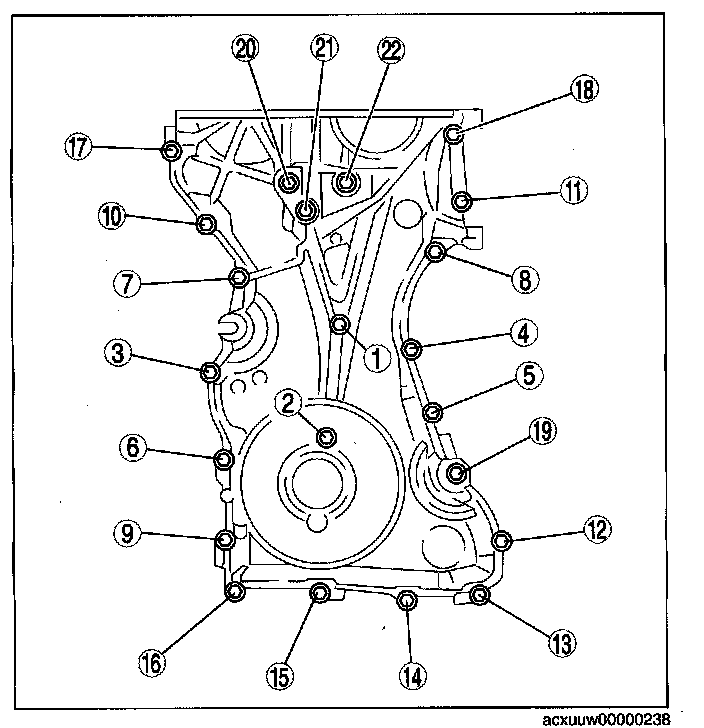

[L3 WITH TC]
Engine Front Cover
Installation Position 1-18 8.0-11.5 N-m {82-117 kgf-cm, 71-101 in-lbf}
Installation Position 19-22 40-55 N-m {4.1-5.6 kgf-m 30-40 ft-lbf}
