Transmission Position Sensor/Switch: Locations

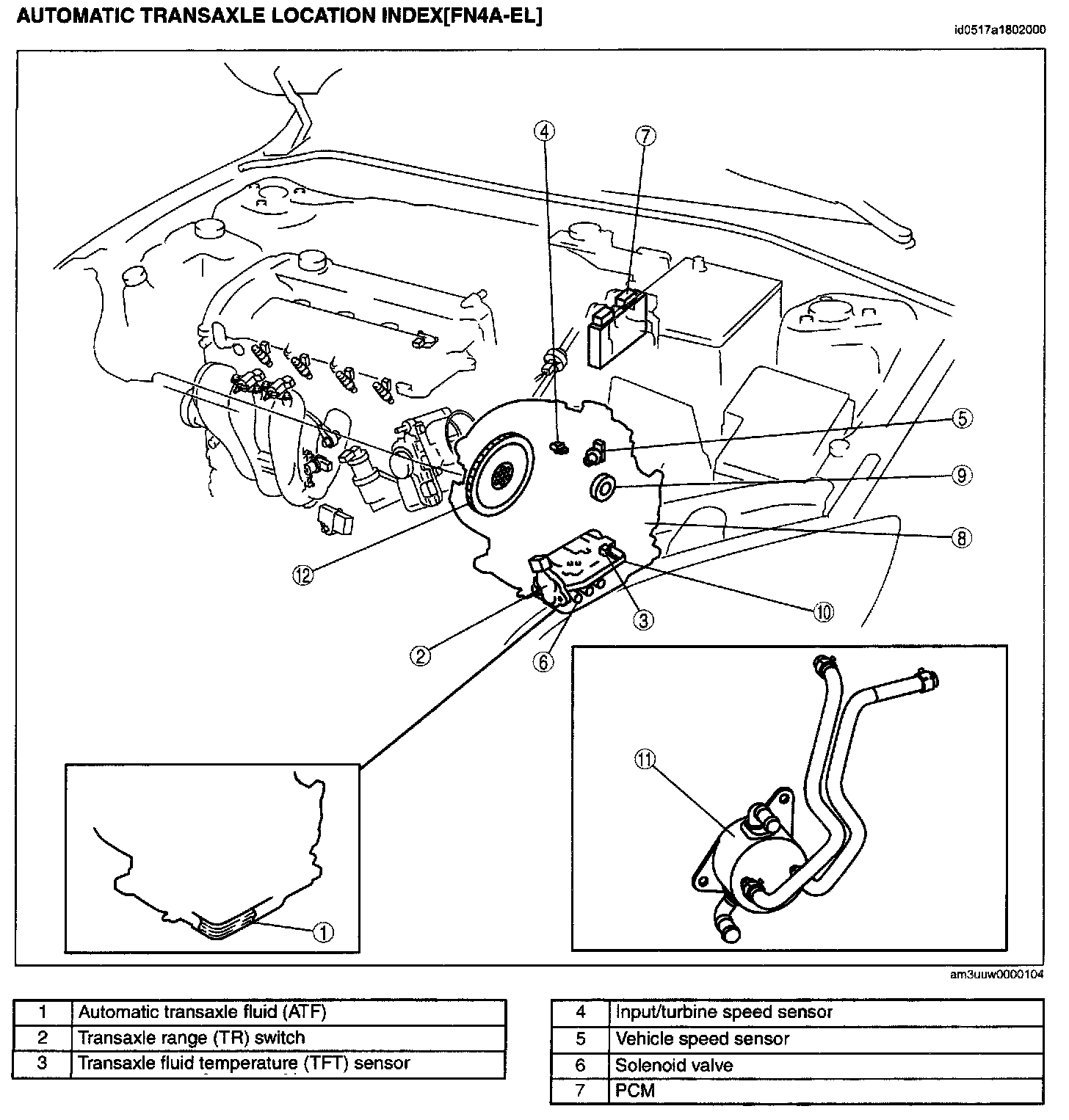

AUTOMATIC TRANSAXLE LOCATION INDEX [FN4A-EL]

Automatic Transaxle Location Index [FN4A-EL] (part 1):




Automatic Transaxle Location Index [FN4A-EL] (part 2):
