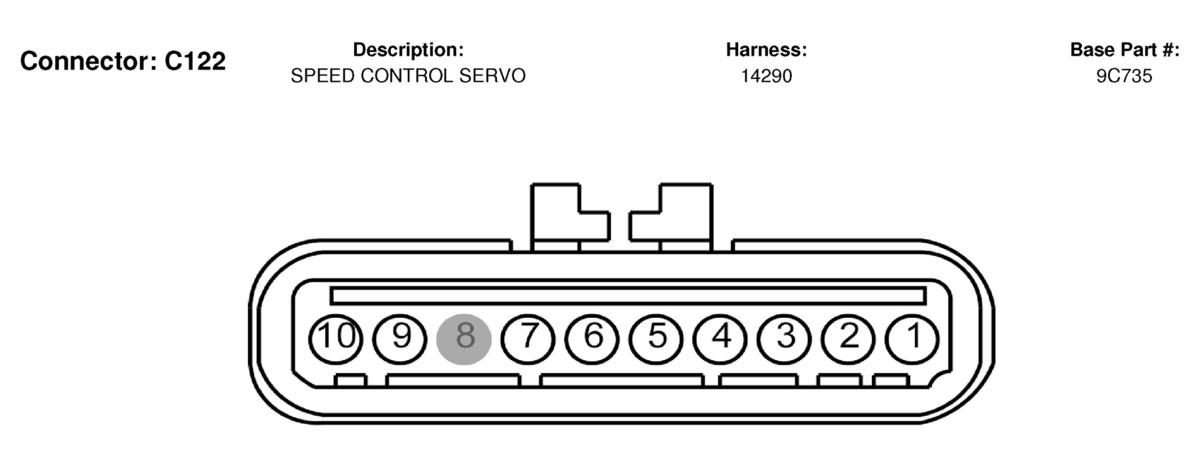

Speed Control Servo Connector End View (C122)
C122 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 203 (OG-LB) | 20 | Cruise control indicator control | |
| 2 | 199 (LB-YE) | 18 | Manual lever position signal (A/T) | 3.0L |
| 2 | 199 (LB-YE) | 20 | Clutch switch signal (M/T) | 2.3L |
| 3 | 679 (GY-BK) | 20 | Vehicle speed signal (+) | |
| 4 | 511 (LG) | 20 | Brake pedal position switch feed | |
| 5 | 151 (LB-BK) | 20 | Speed control switch, reference voltage | |
| 6 | 848 (DG-OG) | 20 | Speed control switch, signal return | |
| 7 | 601 (LB-PK) | 20 | Voltage supplied in Start and Run (overload protected) | |
| 8 | * | * | not used | |
| 9 | 810 (RD-LG) | 20 | Park/stop lamp, right rear feed | |
| 9 | 248 (TN-OG) | 20 | Park/stop lamp, right rear feed | Late production |
| 10 | 57 (BK) | 20 | Ground |
