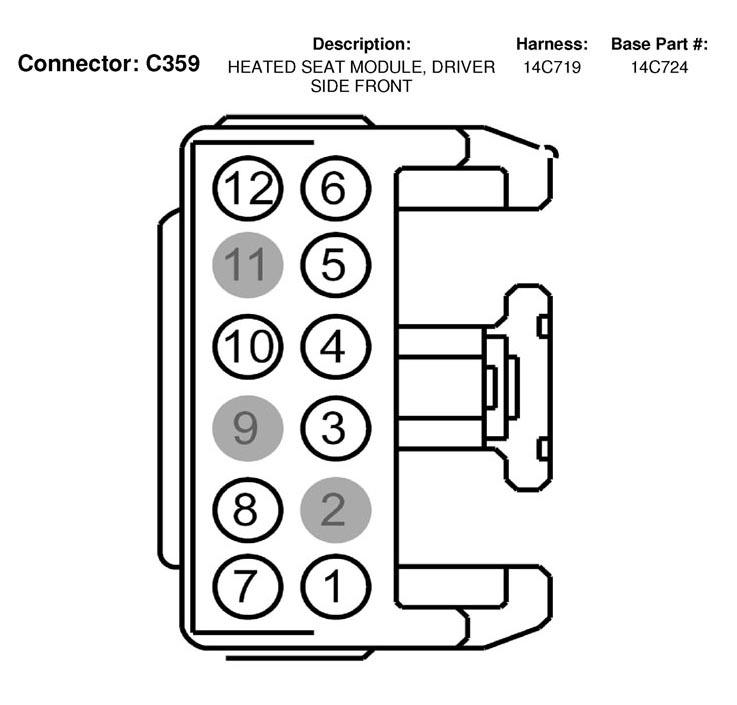

Heated Seat Module, Driver Side Front Connector End View (C359)
C359 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 57 (BK) | 18 | Ground | |
| 2 | * | * | not used | |
| 3 | 1061 (BR-LB) | 20 | Temperature, return | |
| 4 | 1060 (BK-LB) | 20 | Temperature, signal | |
| 5 | 1003 (GY-YE) | 18 | Voltage supplied in Start and Run (overload protected) | |
| 6 | 1064 (YE-LB) | 16 | Heater, feed | |
| 7 | 1067 (VT-LB) | 16 | Heater, return | |
| 8 | 581 (RD) | 20 | Climate controlled seat module - On | |
| 9 | * | * | not used | |
| 10 | 461 (OG) | 22 | Heated seat indicator feed | |
| 11 | * | * | not used | |
| 12 | 1153 (RD-BK) | 16 | Voltage supplied at all times (overload protected) |
