Removal and Installation

  1. Disconnect the negative battery cable. See BATTERY DISCONNECT .
  2. Raise and support the vehicle.
    3. NOTE:
    • The knock sensor (KS) is located on the RH side of the cylinder block.

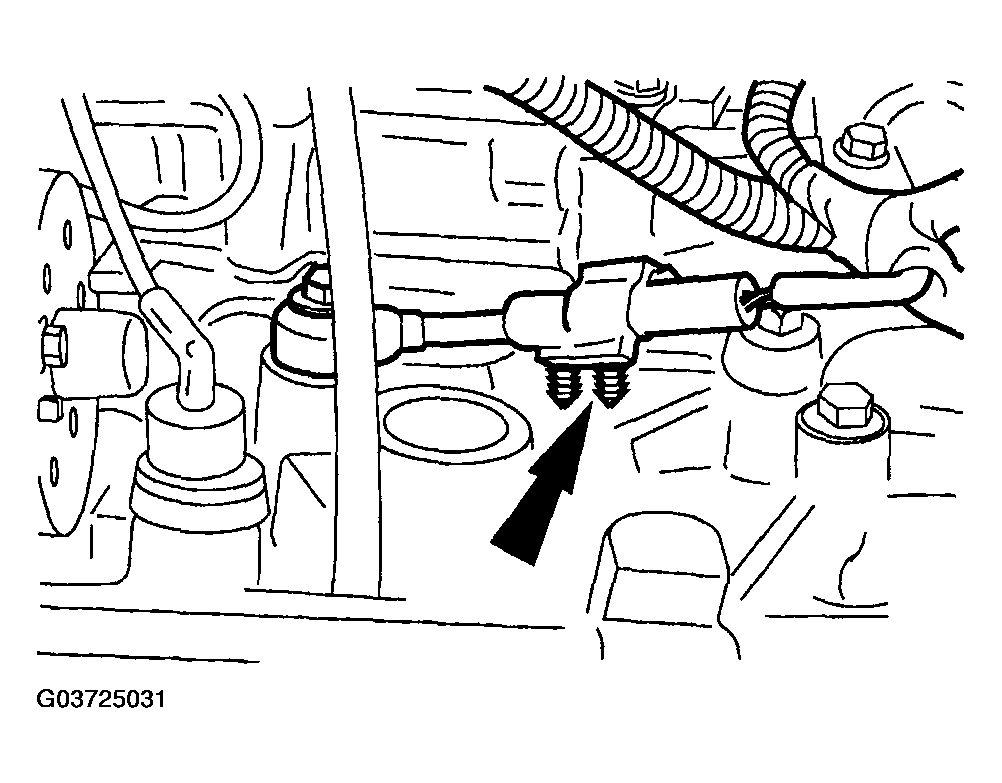

    Fig 1: Disconnecting KS Electrical Connector
    G03725031Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the KS electrical connector and remove the connector from the mounting bracket.
  4. Remove the bolt and the KS.
  5. To install, reverse the removal procedure.
