Ignition Switch: Notes

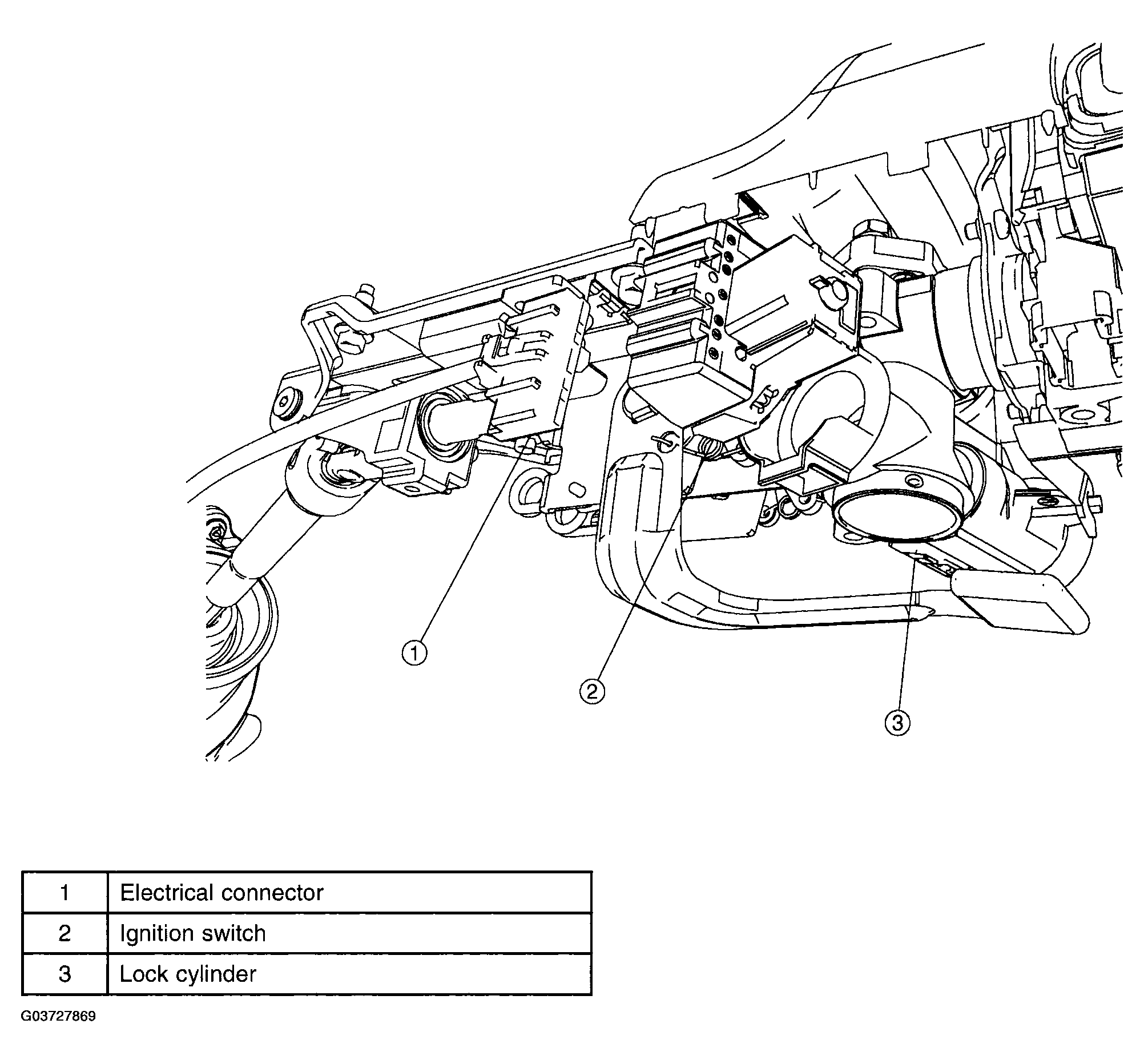

- Remove the parts in the order indicated in the following illustration and table.
Courtesy of MAZDA MOTORS CORP.
IGNITION SWITCH
| 1 |
Electrical connector |
| 2 |
Ignition switch |
| 3 |
Lock cylinder |
