Symptom Diagnostic Index

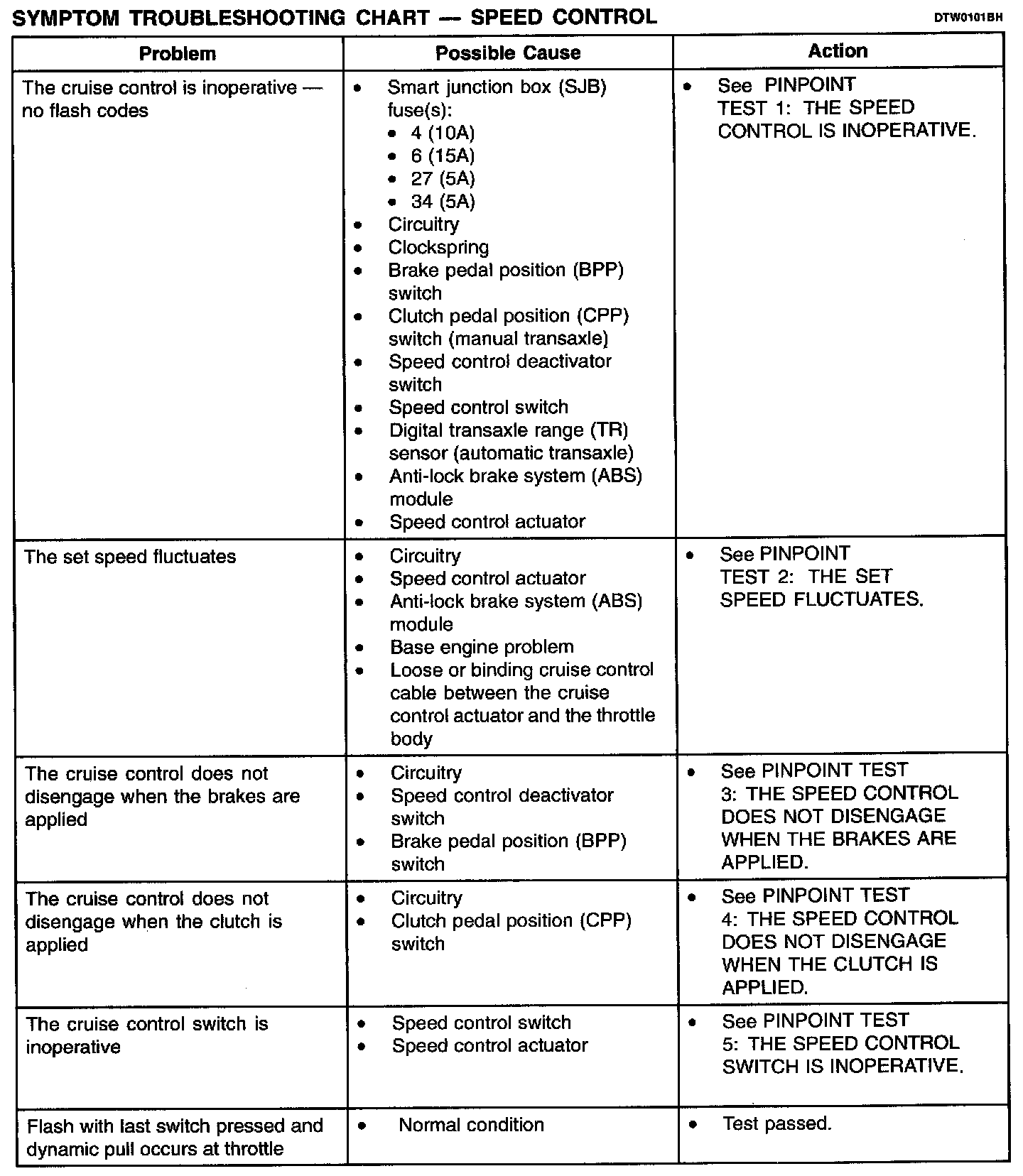

Symptom Troubleshooting Chart - Speed Control Part 1:

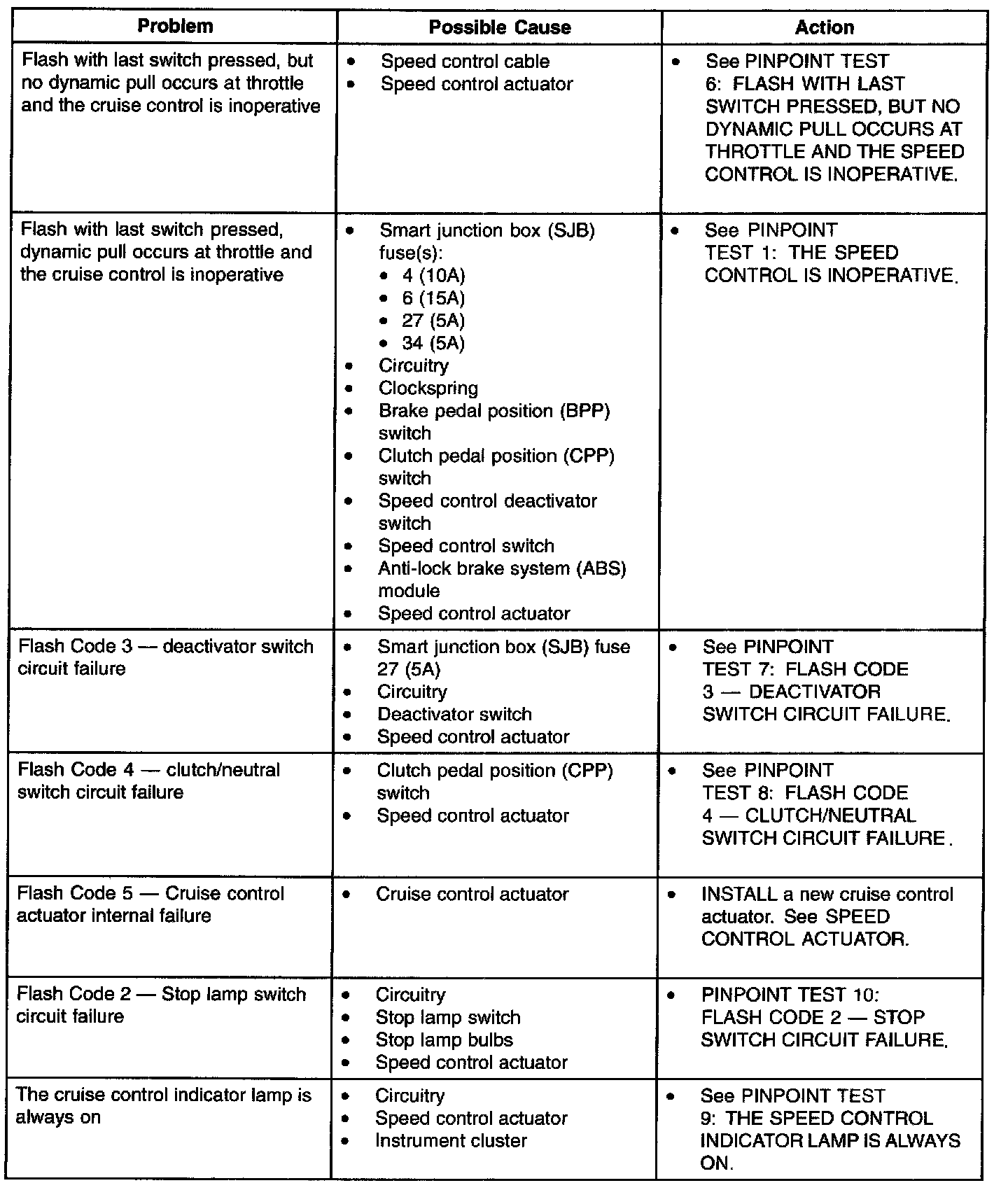

Symptom Troubleshooting Chart - Speed Control Part 2:

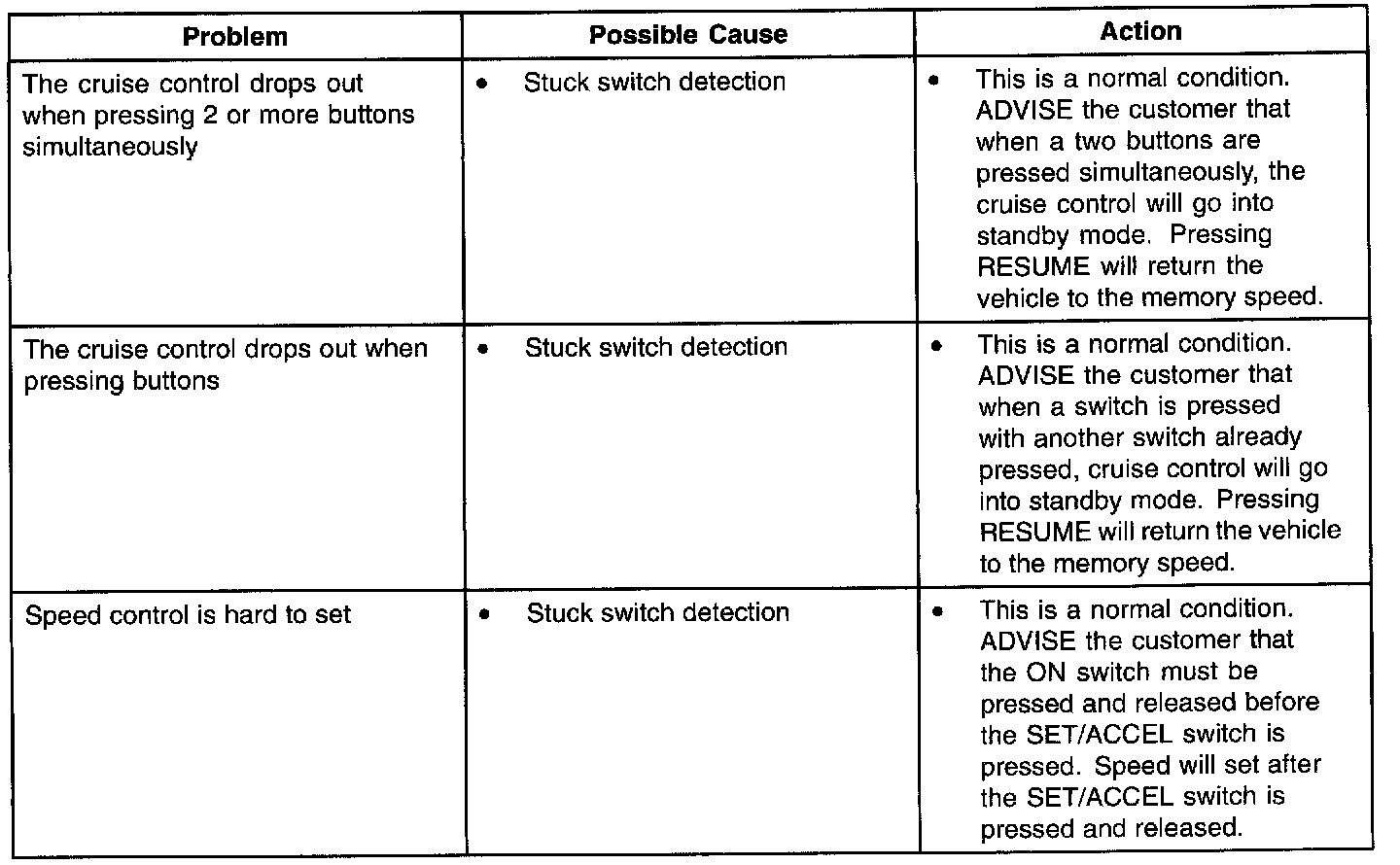

Symptom Troubleshooting Chart - Speed Control Part 3:
