NONRETURN Valve Inspection

  1. Remove the nonreturn valve. (See FUEL TANK REMOVAL/INSTALLATION (+)
  2. Verify that the nonreturn valve operates under its own weight.
    • If the valve does not operate, replace the nonreturn valve.

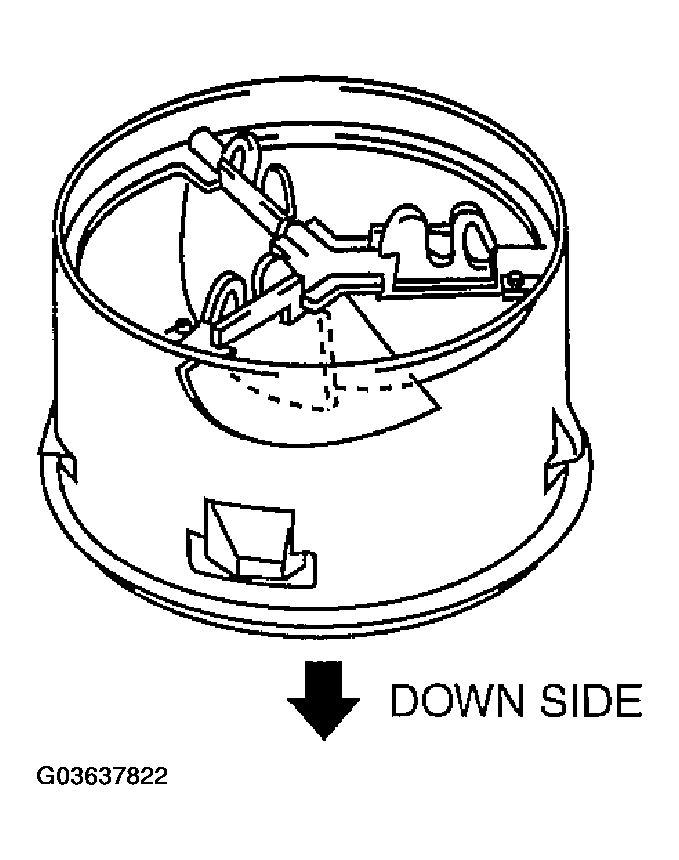

    Fig 1: Removing Nonreturn Valve
    G03637822Courtesy of MAZDA MOTORS CORP.
