Flasher Control Module Connector End View

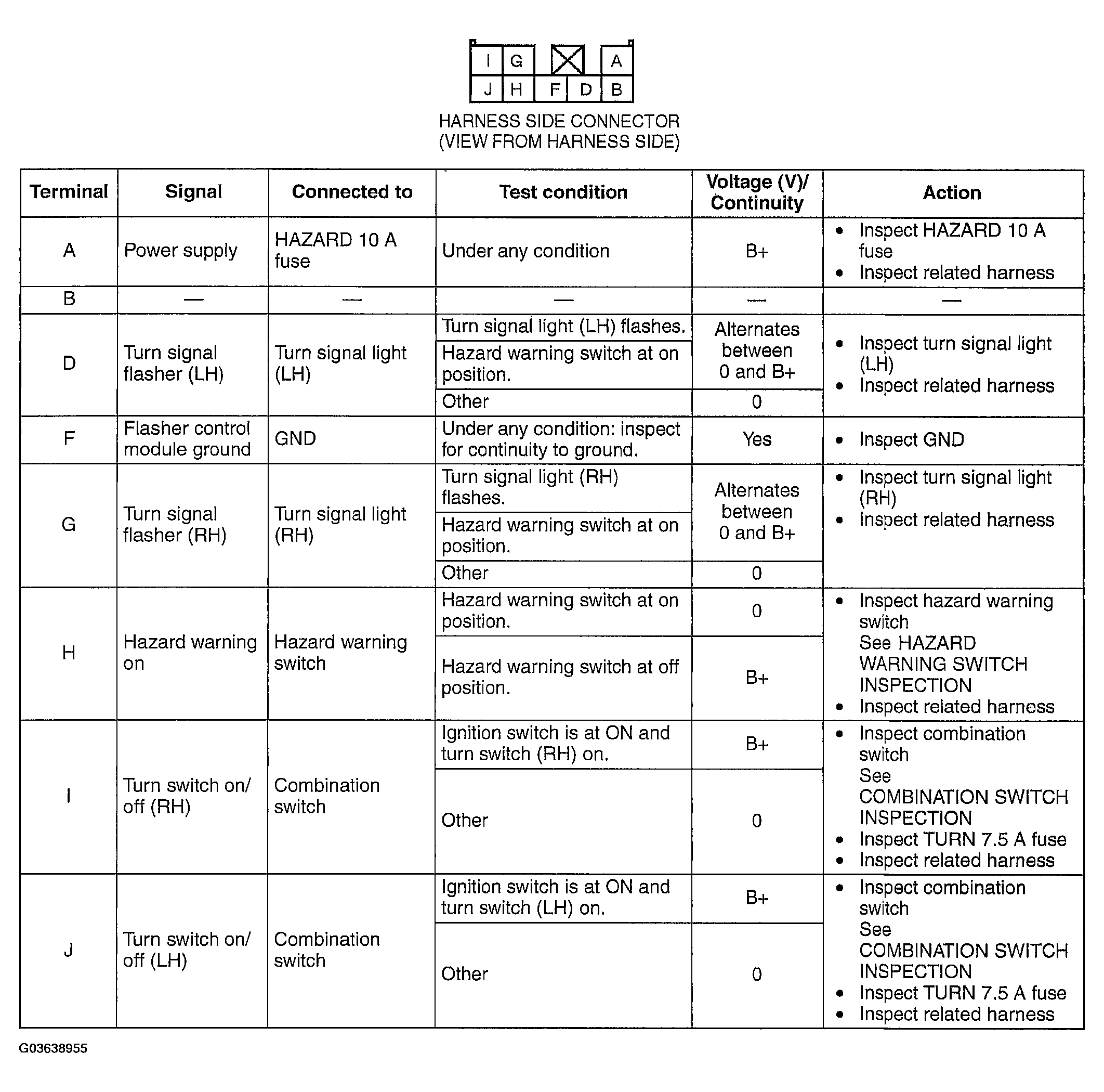

Fig 1: Flasher Control Module Connector End View
G03638955Courtesy of MAZDA MOTORS CORP.
