Monitoring System

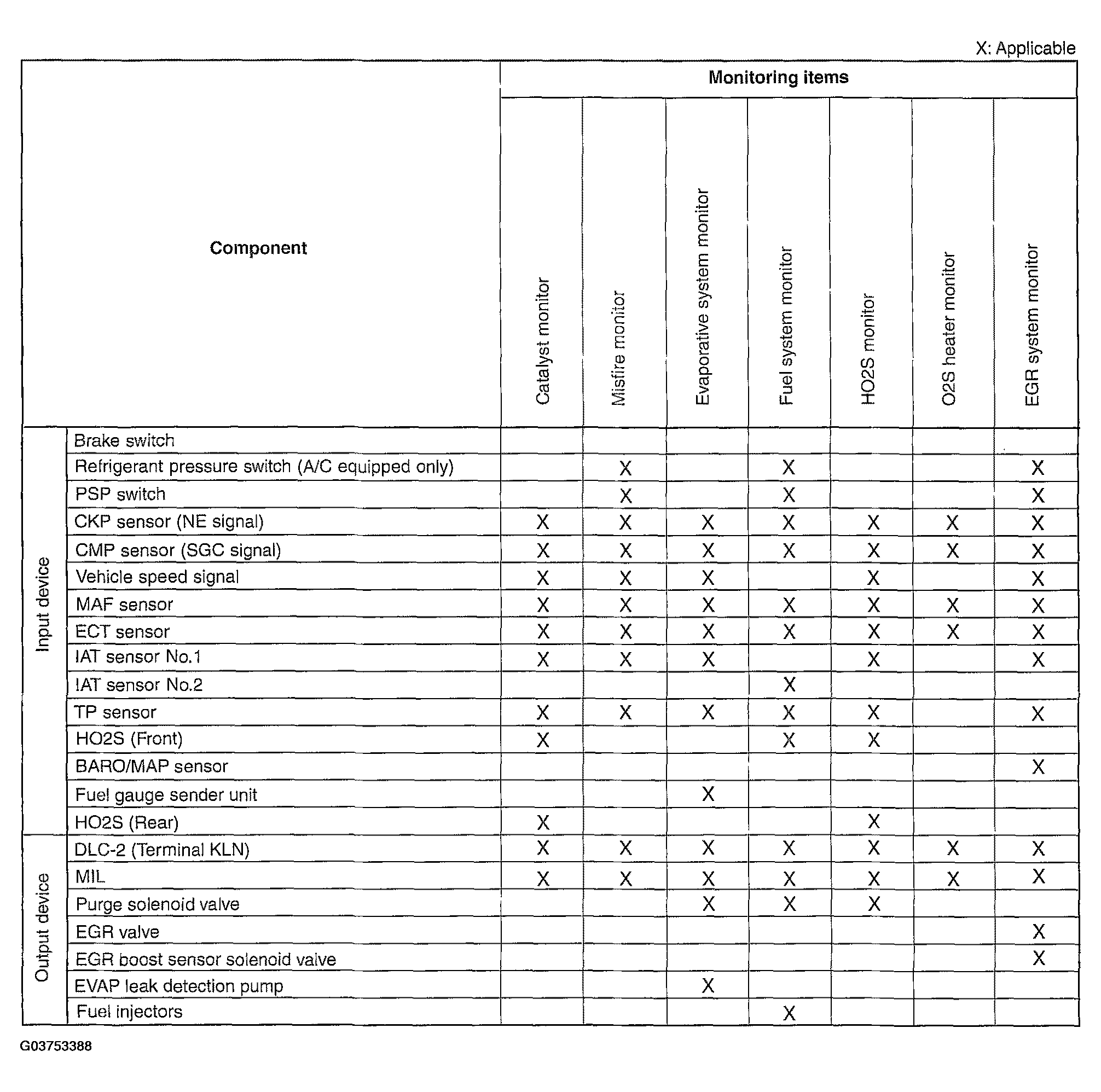

Fig 1: Control System Device And Control Relationship Chart - Monitoring System [BP With TC]
G03753388Courtesy of MAZDA MOTORS CORP.
