Joint Hose Installation Note

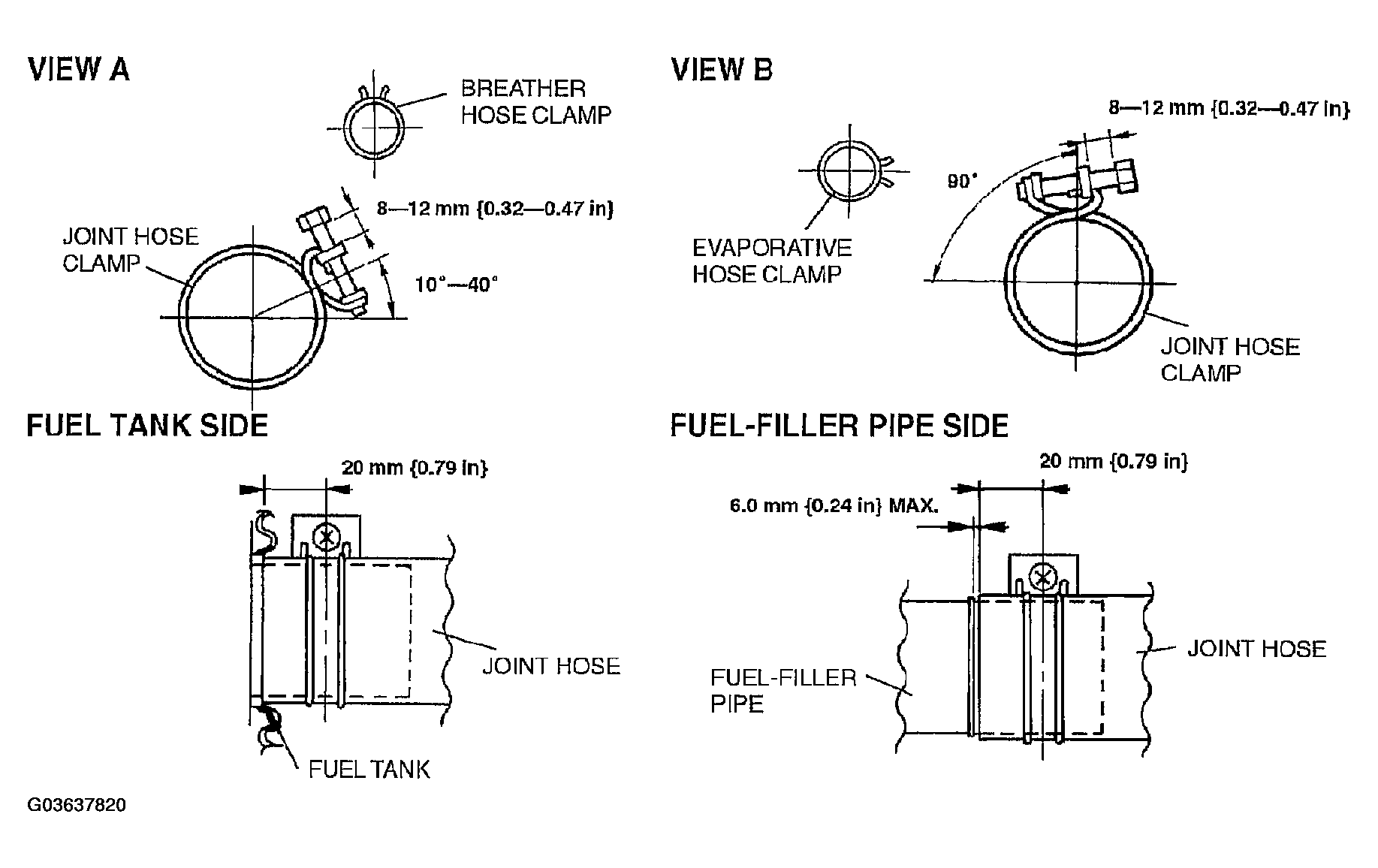

- Fit the joint hose onto the respective fittings within specification, and install clamps as shown.
Courtesy of MAZDA MOTORS CORP.
