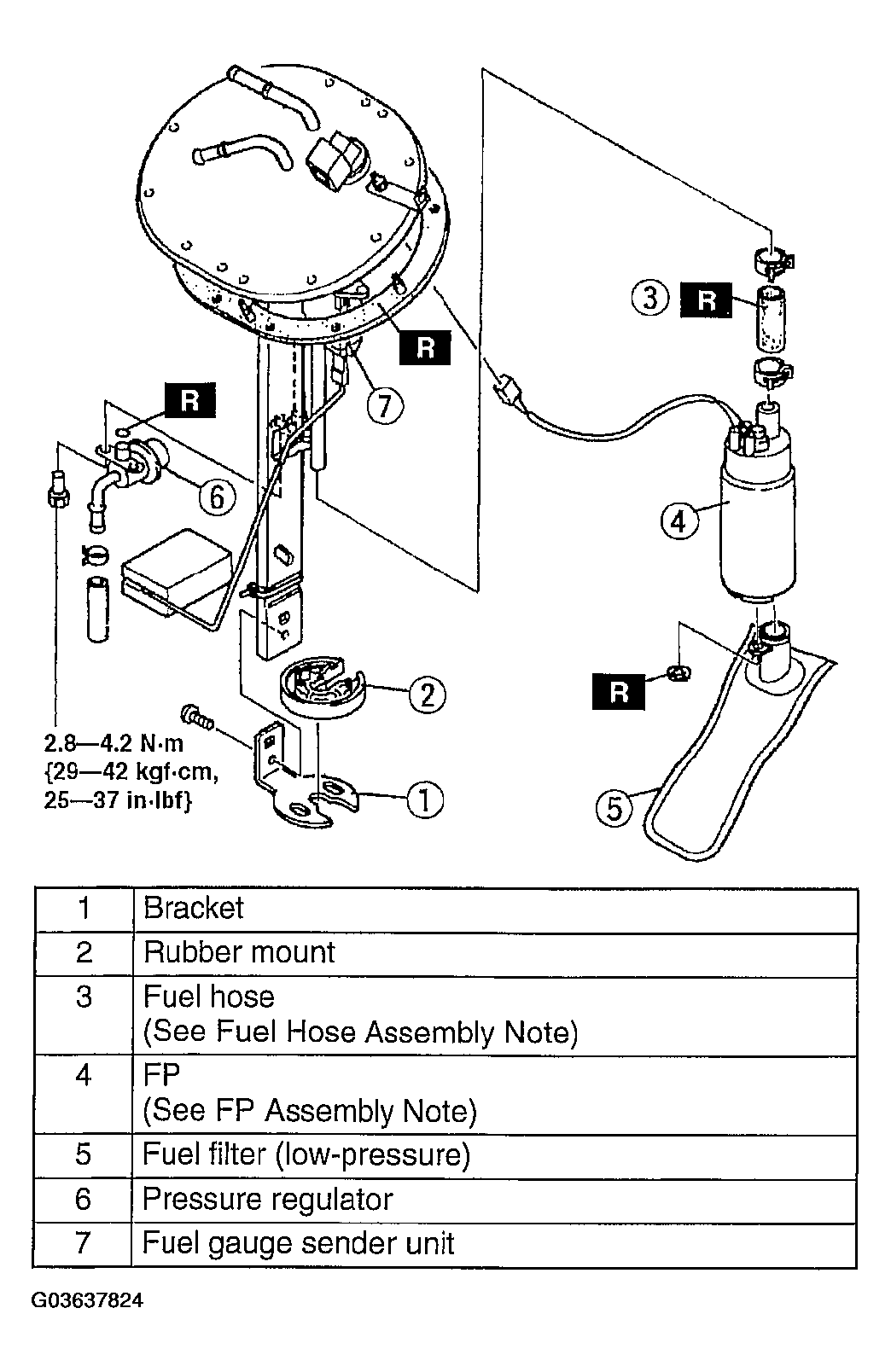

Fuel Pump (FP) Disassembly/Assembly: Notes
- Disassemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
