Monitoring System And Control System Device Relationship Chart

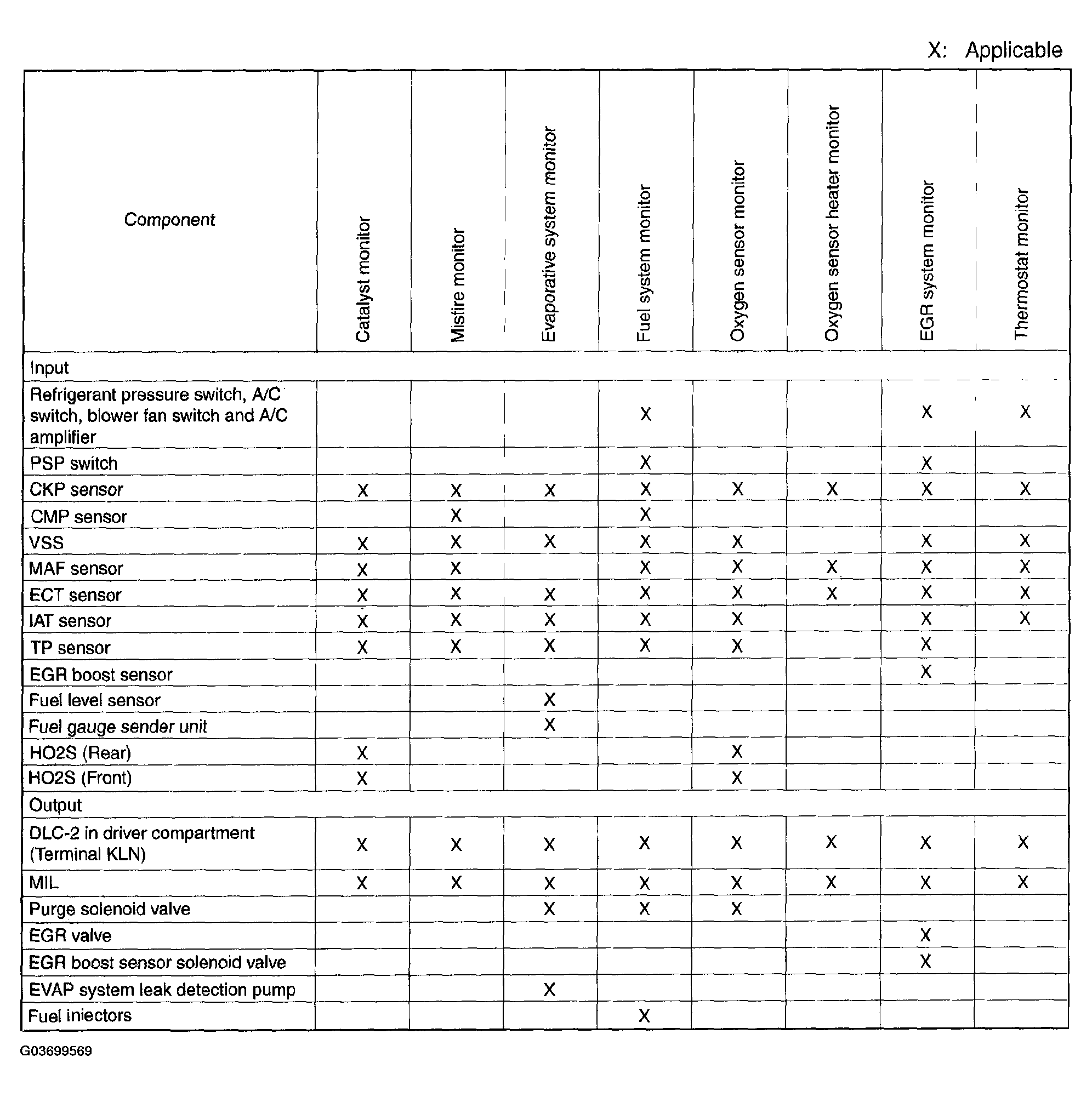

Fig 1: Identifying Monitoring System And Control System Device Relationship Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
