Part-side connector

The viewing direction of part-side connectors is from the terminal side.

* : Part names are shown only when there are multiple connector drawings.

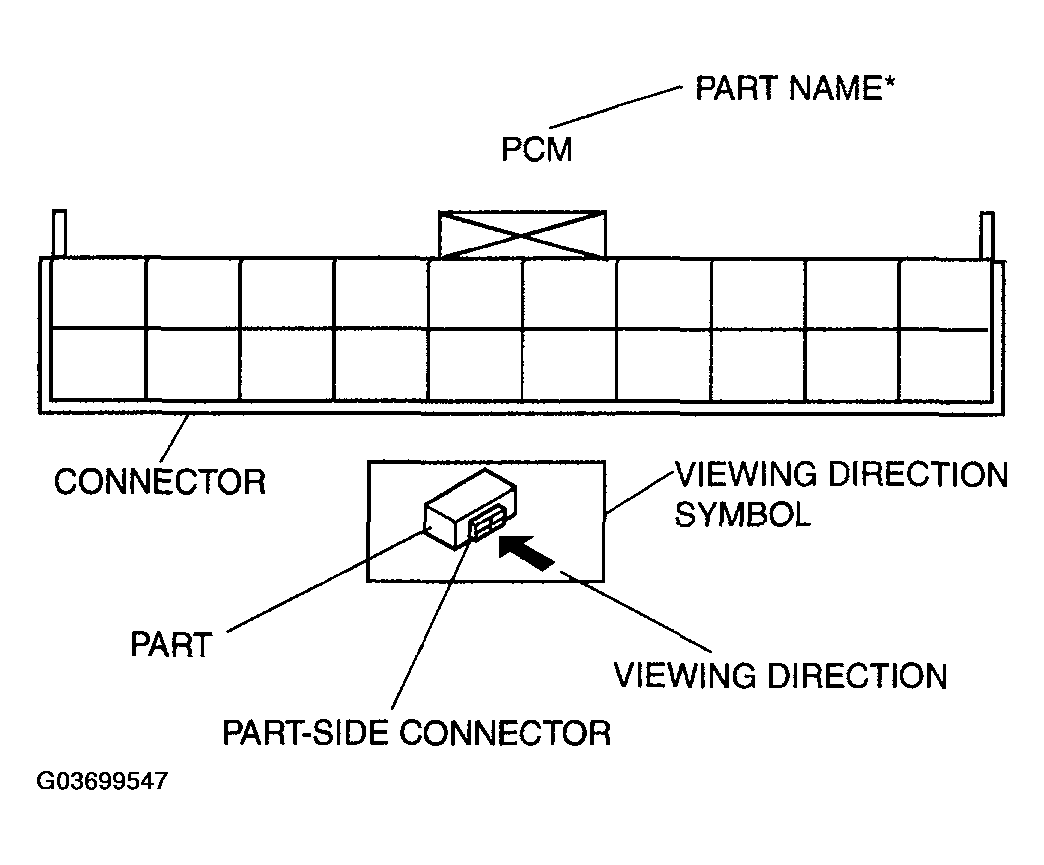

Fig 1: Identifying Part-Side Connector Terminals
G03699547Courtesy of MAZDA MOTORS CORP.
