Engine Front Cover Removal Note

  1. Remove the engine front cover bolts and studs in the order shown.

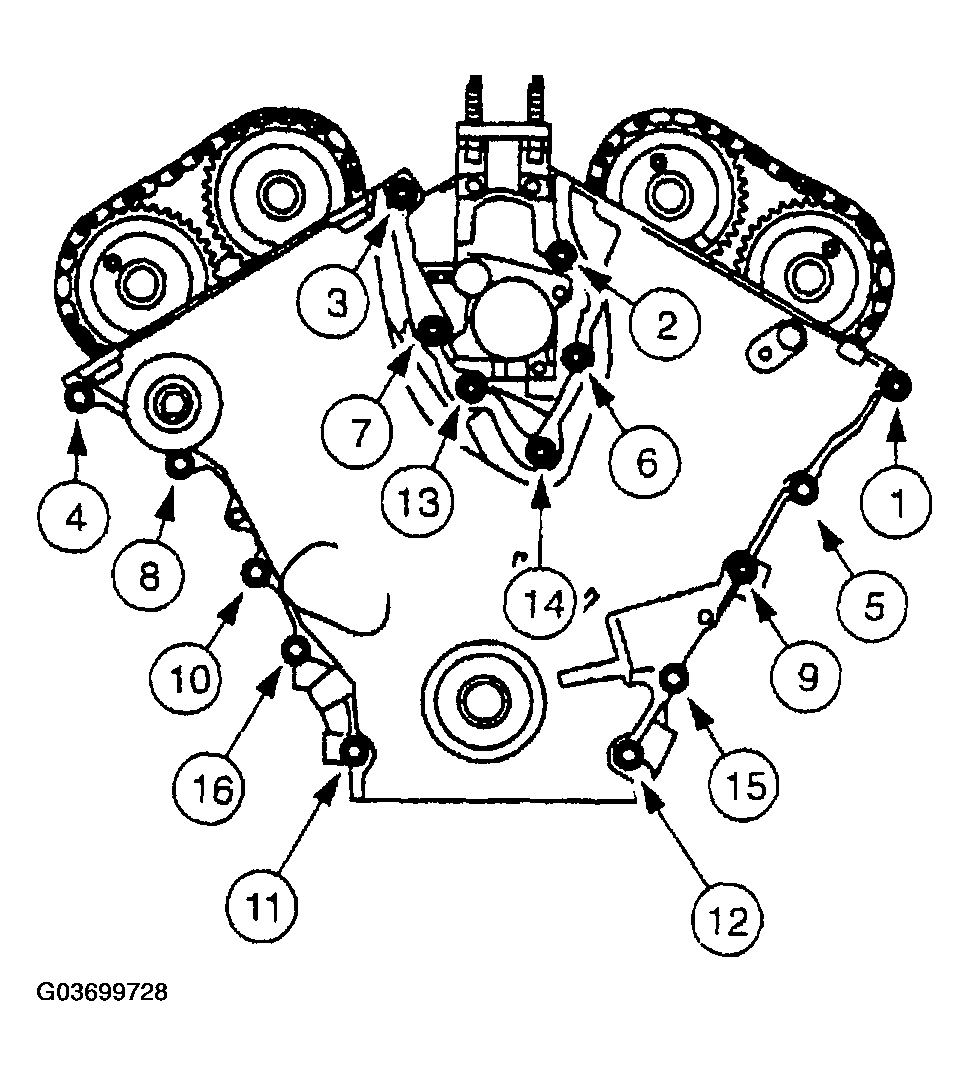

    Fig 1: Identifying Removal Sequence Of Engine Front Cover Bolts And Studs
    G03699728Courtesy of MAZDA MOTORS CORP.
