Engine Front Cover Installation Note

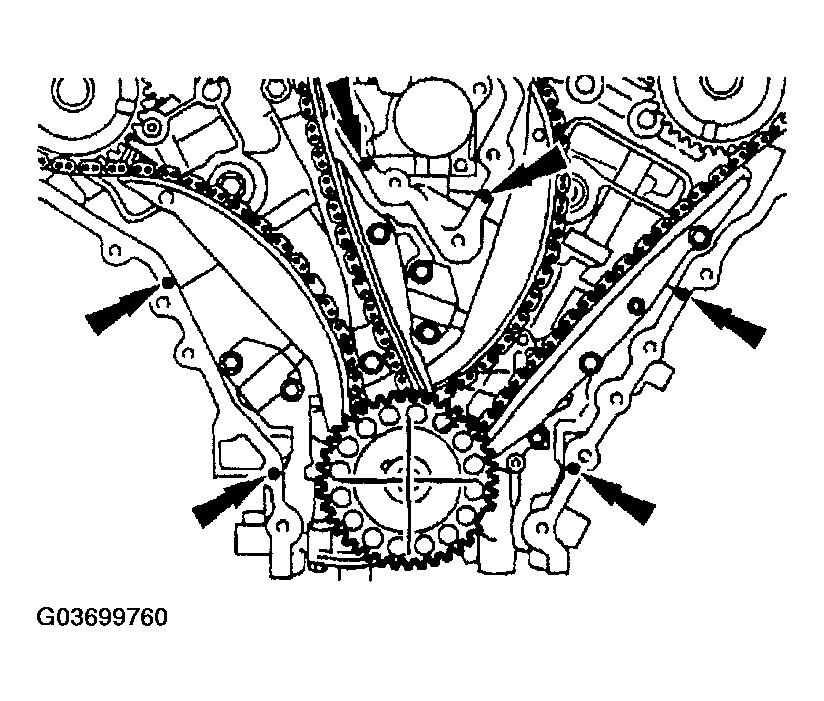

  1. Apply a 6 mm {0.24 in}  dot of silicone sealant at the indicated location.
    Fig 1: Applying Silicone Sealant
    G03699760Courtesy of MAZDA MOTORS CORP.

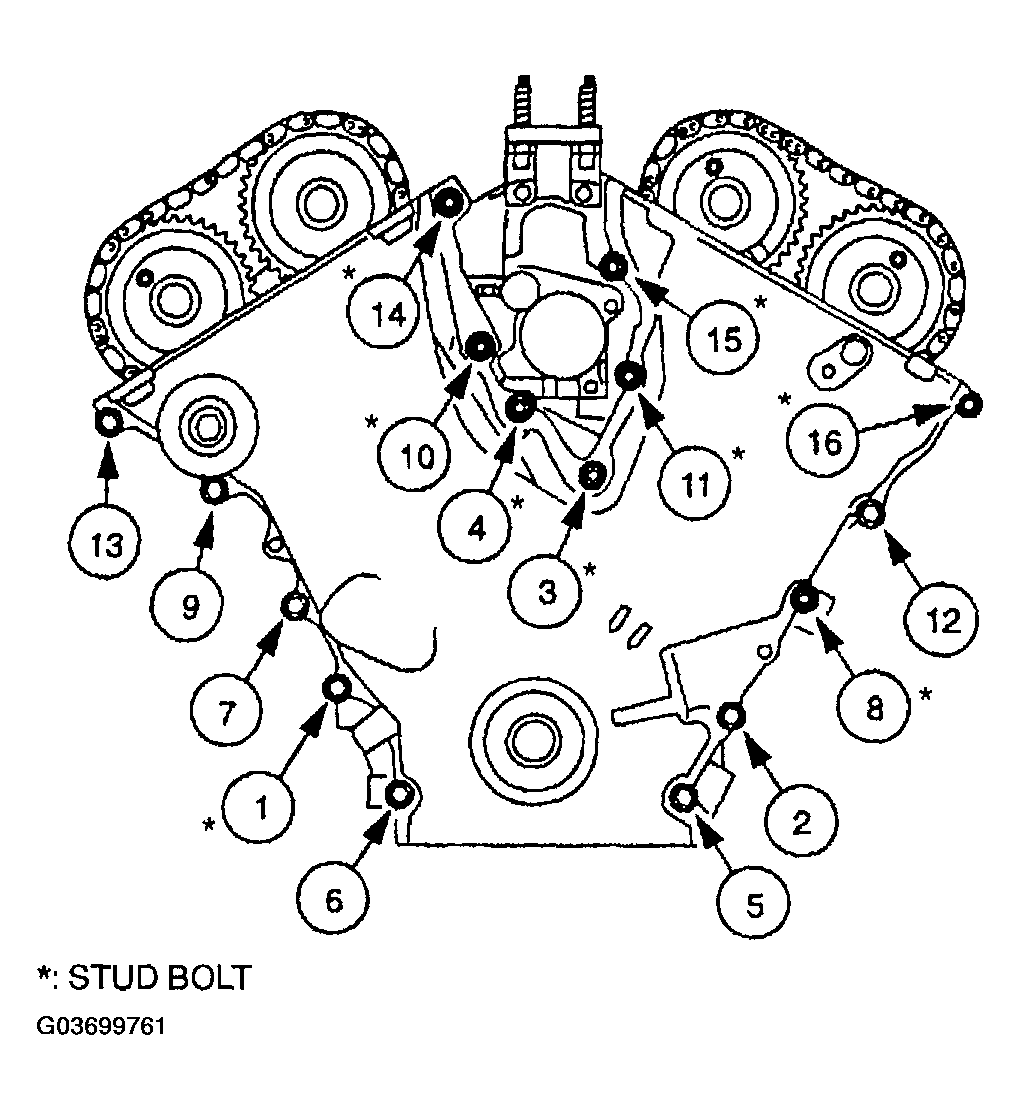

  2. Install the remaining bolts and studs, and then tighten all bolts and studs in the order shown.
    Fig 2: Installing Bolts And Studs In Sequence
    G03699761Courtesy of MAZDA MOTORS CORP.
