Heater Control Switch Removal/Installation

  1. Remove the heater control unit; See HEATER CONTROL UNIT REMOVAL/INSTALLATION .
  2. Gently pull and remove the blower motor knob.
  3. Release the three clips and remove the switch.
  4. Gently pull and remove the function selector knob.
  5. Release the clips and remove the function selector switch.

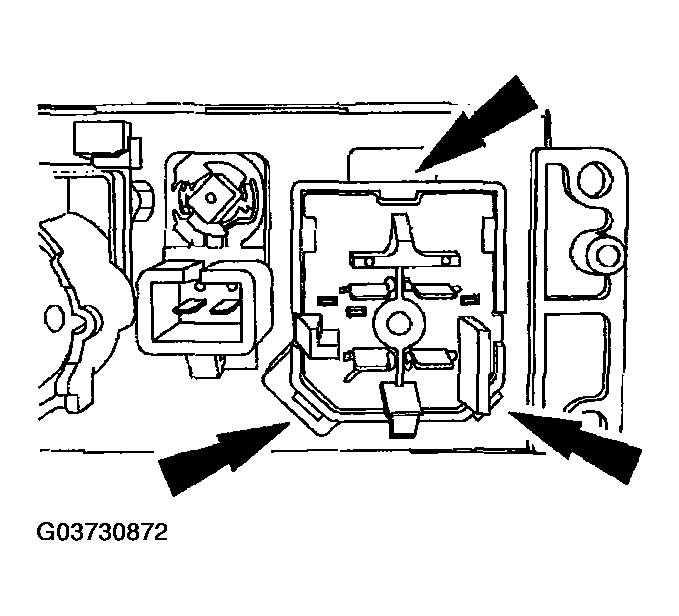

    Fig 1: Removing Heater Control Switch
    G03730872Courtesy of MAZDA MOTORS CORP.
  6. To install, reverse the removal procedure.
