Removal Note

Remove the right-hand driveaxle shaft; see DRIVE SHAFT, FRONT AXLE REMOVAL/INSTALLATION .
Remove the right-hand axle shaft.

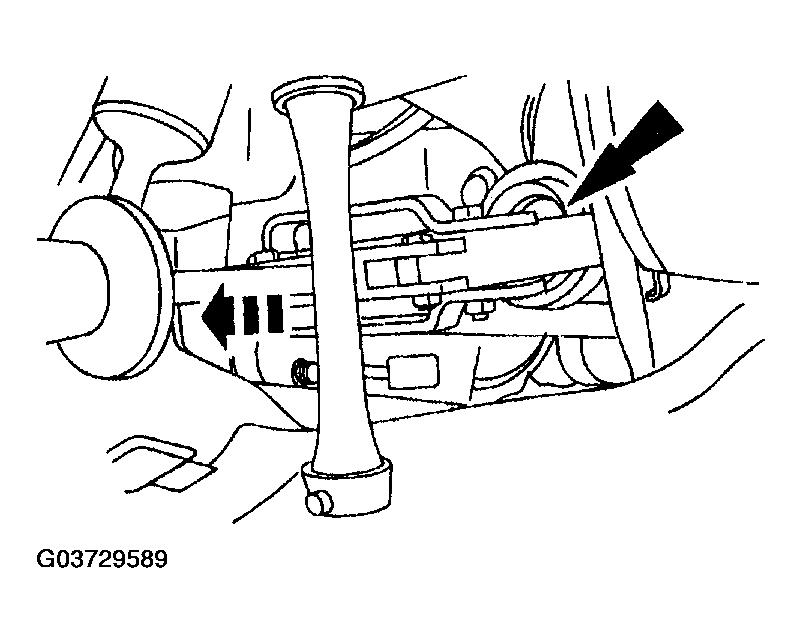

Fig 1: Removing Right-Hand Axle Shaft
Courtesy of MAZDA MOTORS CORP.
Use Impact Slide Hammer SST 49-0223-630B and Converter Seal Remover 307-309 (T94P-77001-BH) or equivalent to remove the axle seal.

Fig 2: Removing Axle Using SST
Courtesy of MAZDA MOTORS CORP.
Use Axle Bearing Remover SST 49 UN01 032, Impact Slide Hammer SST 49-0223-630B and Adapter SST 49 UN11 011 to remove the axle tube bearing.

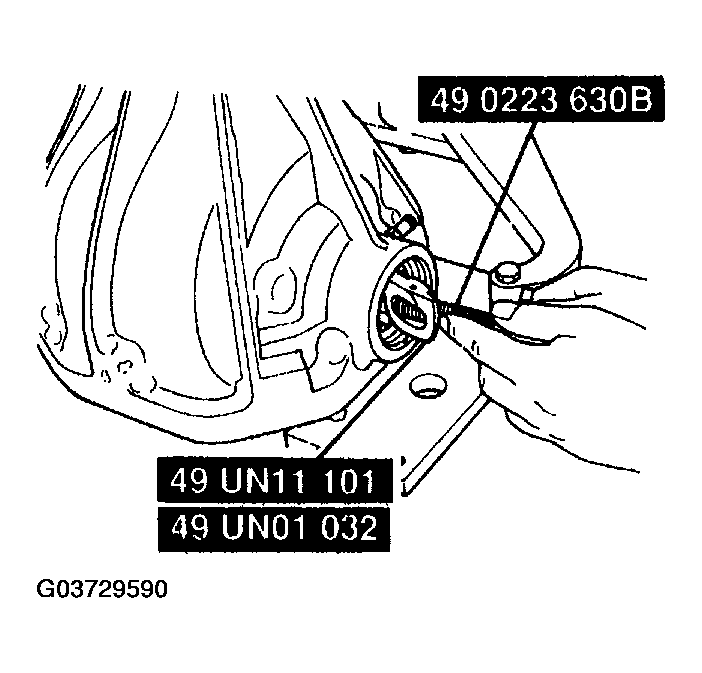

Fig 3: Removing Axle Tube Bearing
Courtesy of MAZDA MOTORS CORP.
Clean the bearing and seal surfaces of any foreign debris.
