California Emission Regulation Applicable ATX Model

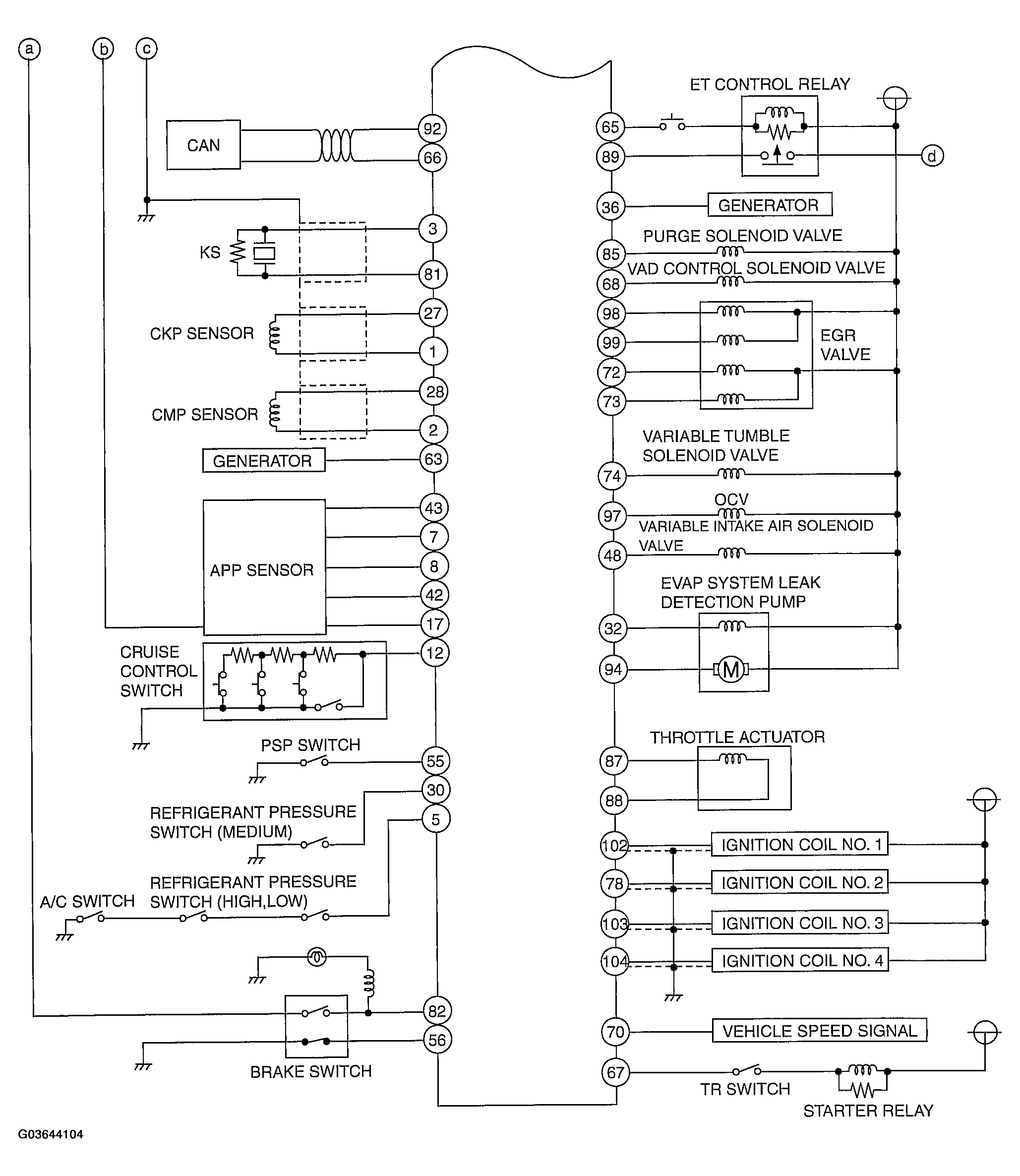

Fig 1: Control System Wiring Diagram [L3] (California Emission Regulation Applicable ATX Model) (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

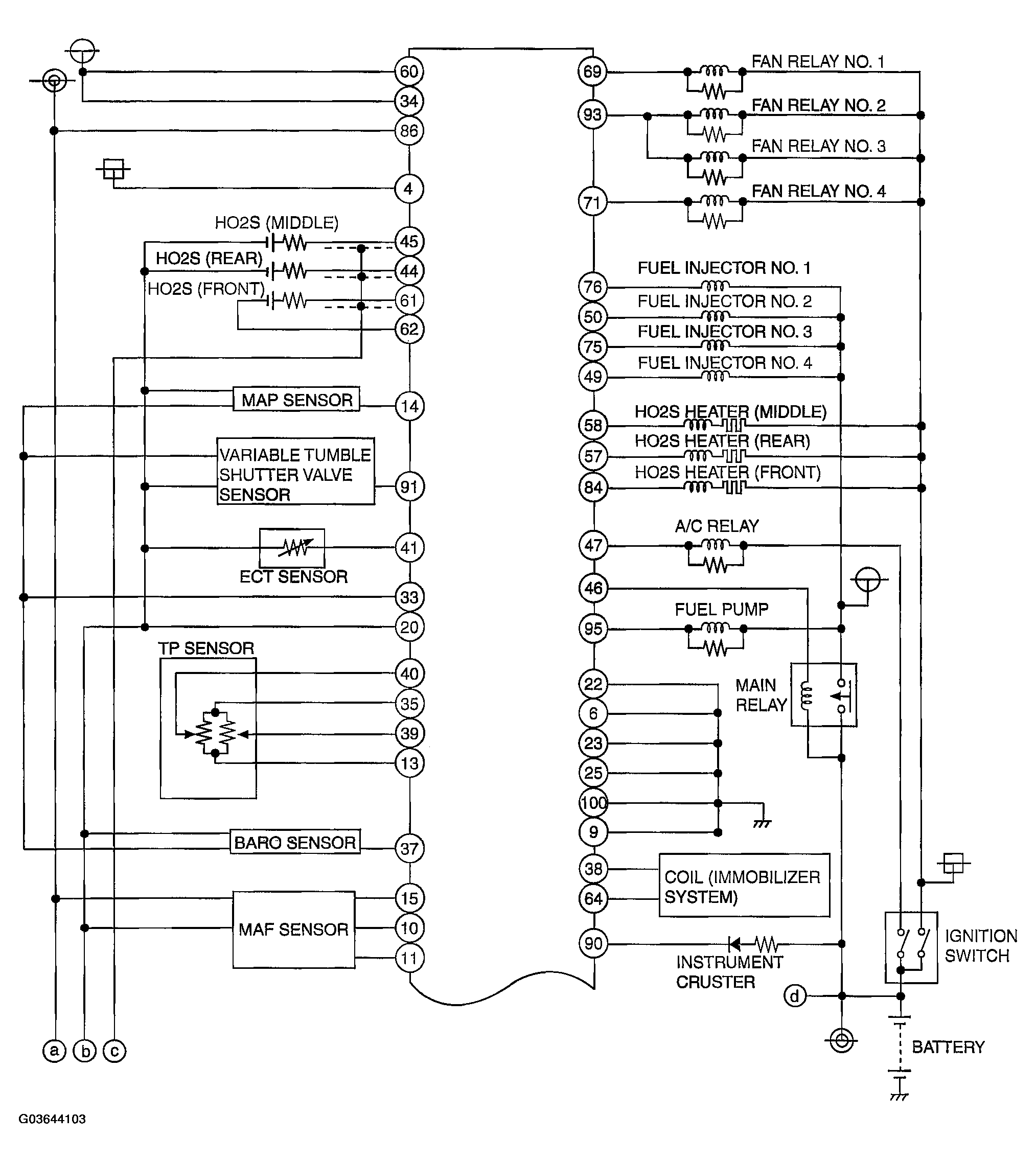

Fig 2: Control System Wiring Diagram [L3] (California Emission Regulation Applicable ATX Model) (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
