California emission regulation applicable ATX model

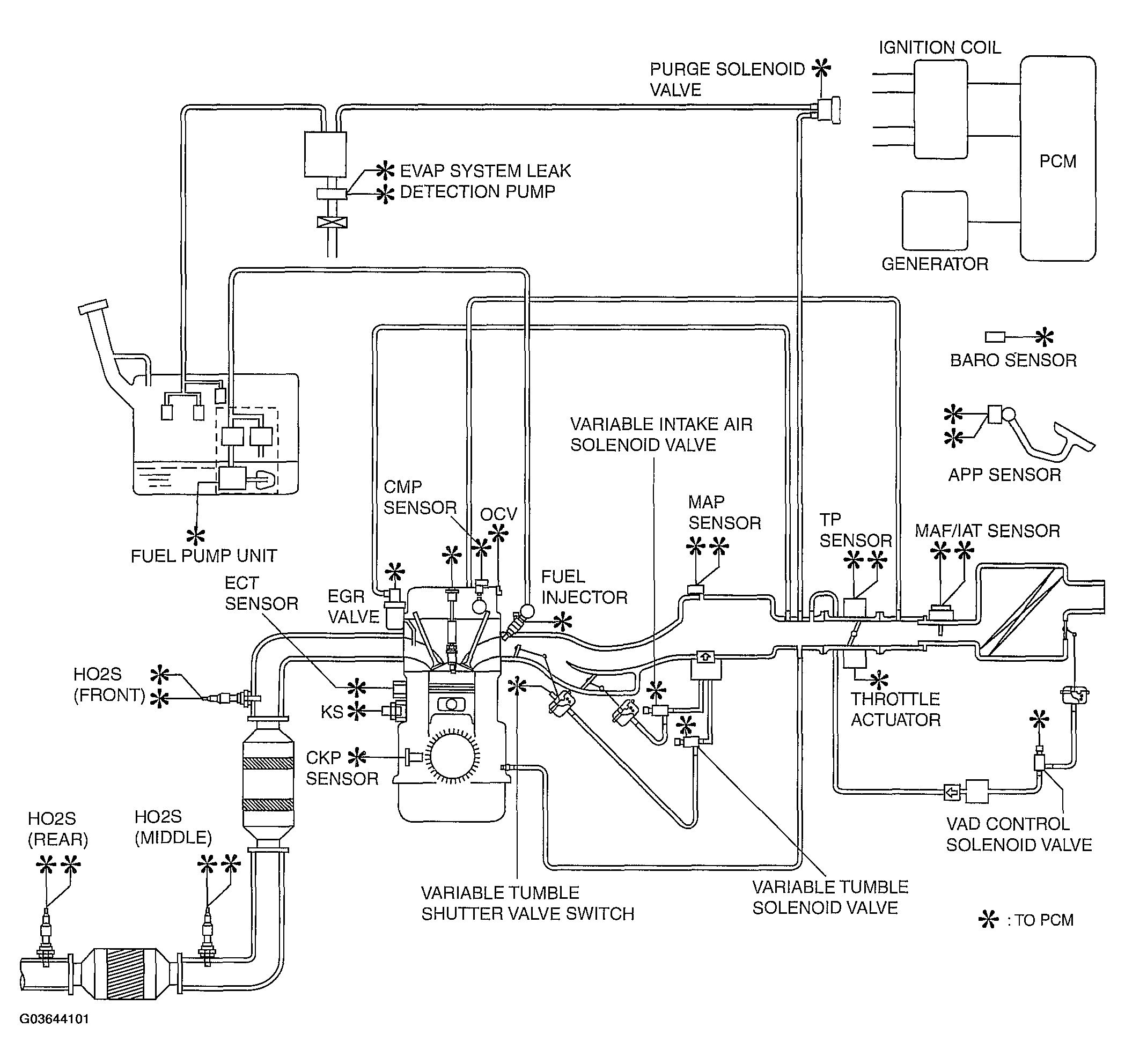

Fig 1: Control System Diagram [L3] (California Emission Regulation Applicable ATX Model)
G03644101Courtesy of MAZDA MOTORS CORP.
