Select Cable Installation Note

Make sure that the shift lever (transaxle side) is in neutral.
Push the safety lock, then unlock the lock piece of the select cable in the order shown in the figure.

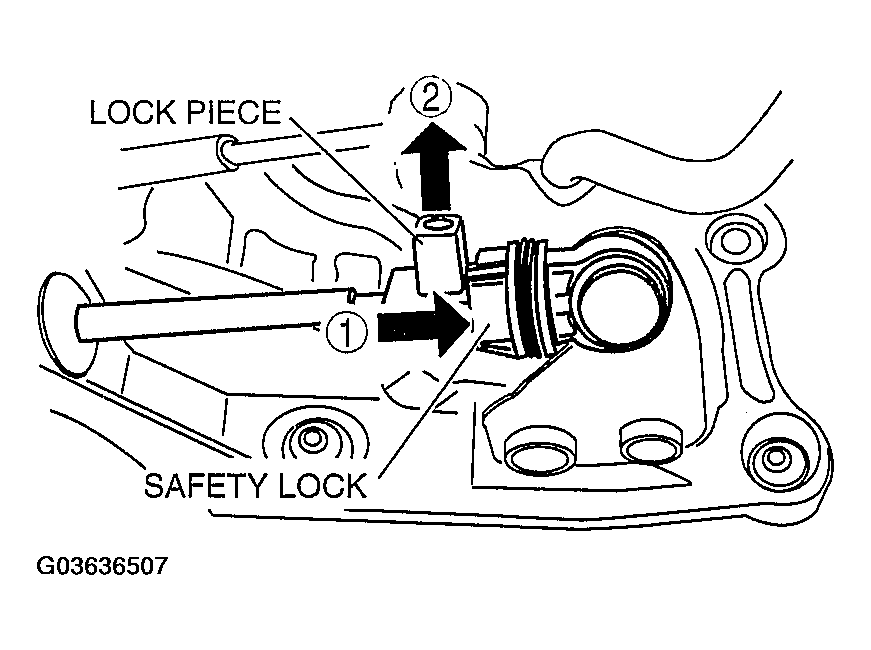

Fig 1: Unlocking Select Cable Lock Piece
Courtesy of MAZDA MOTORS CORP.
Shift the sift lever to neutral.
Lock the lock piece of the selector cable in the figure.

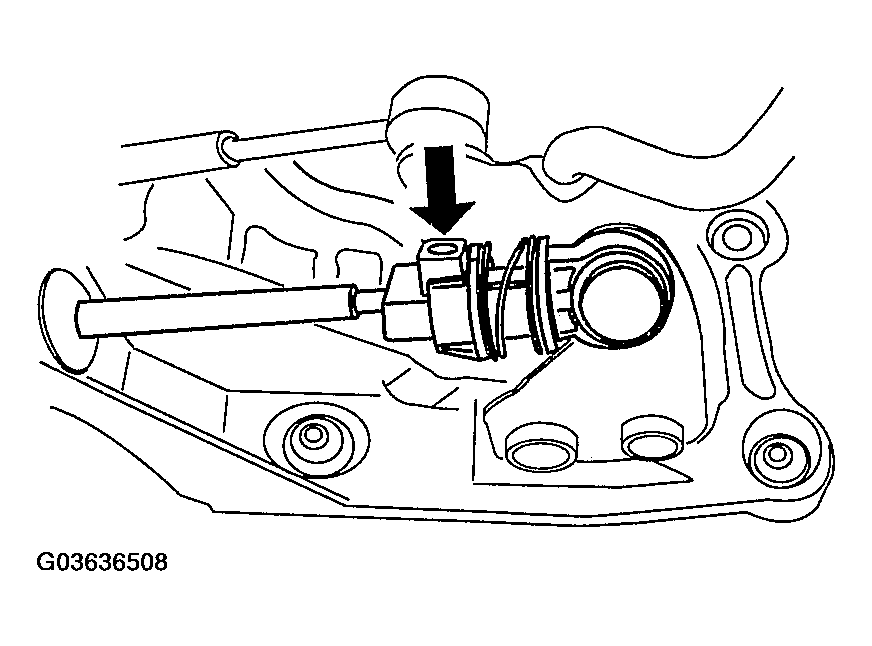

Fig 2: Locking Select Cable Lock Piece
Courtesy of MAZDA MOTORS CORP.
Shift the shift lever from neutral to other position, and make sure that there are no other components in that area to interfere with the lever.
