3 i, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System]
>>
Control System Wiring Diagram
>>
California Emission Regulation Applicable Model
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
California Emission Regulation Applicable Model

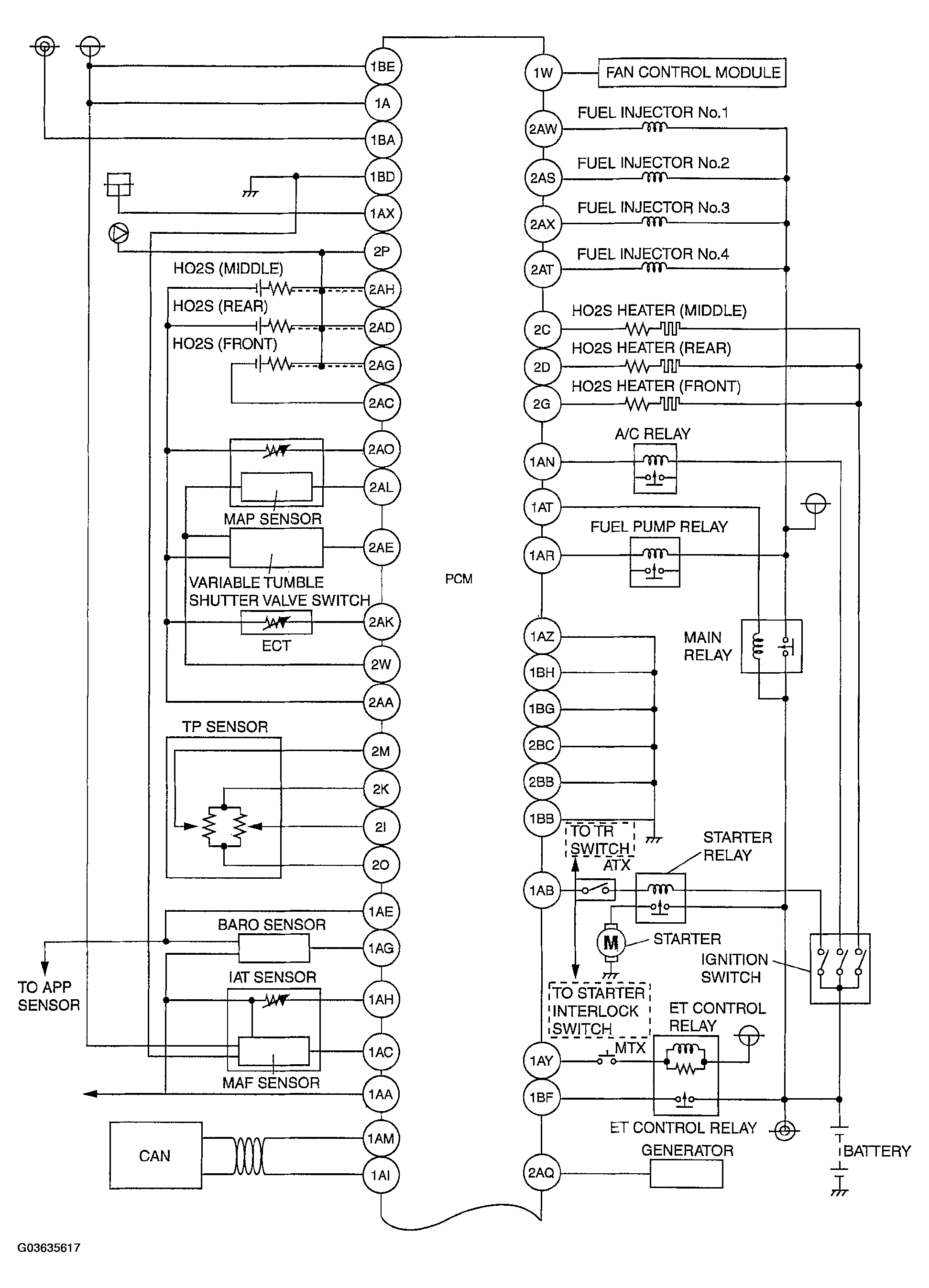

Fig 1: Control System Wiring Diagram - California (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

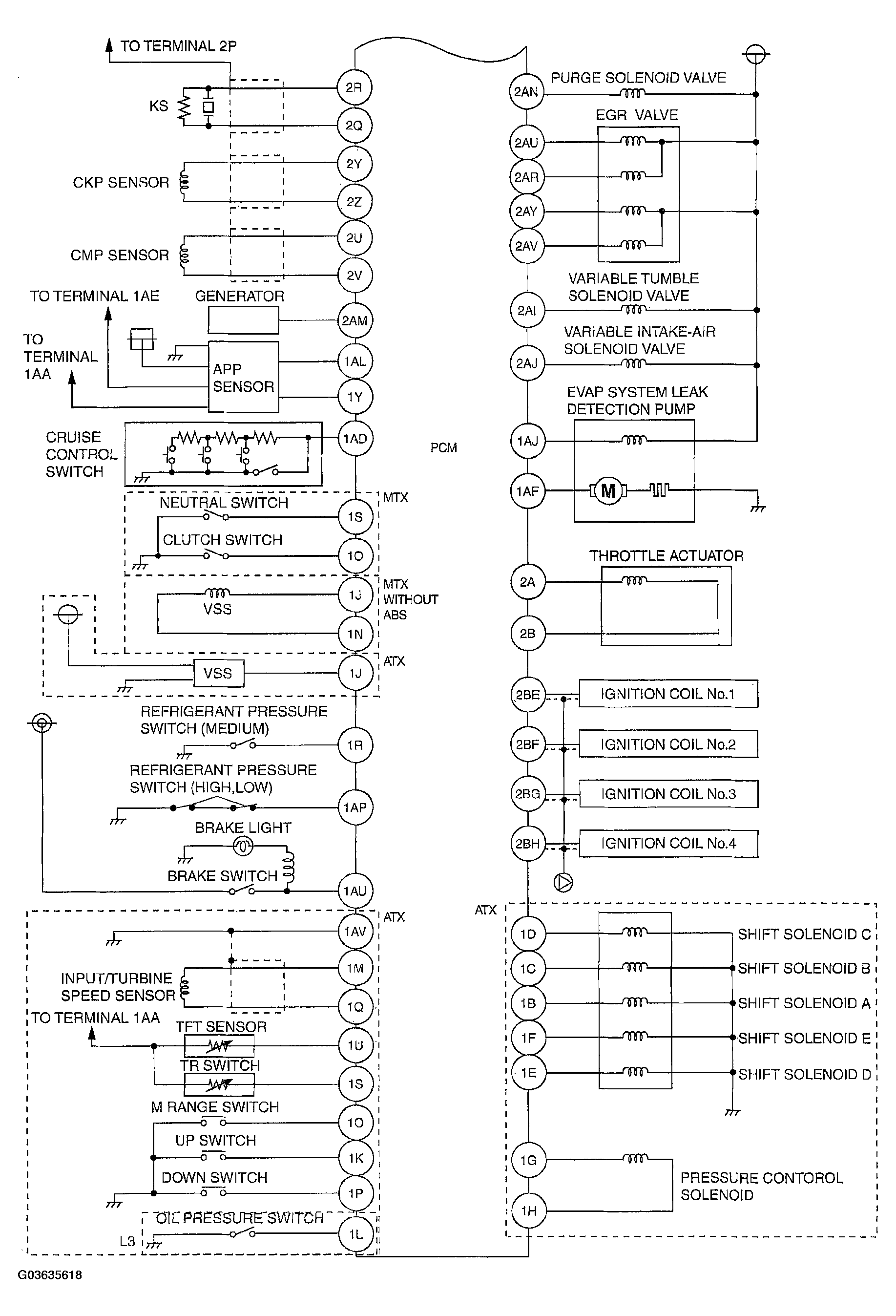

Fig 2: Control System Wiring Diagram - California (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
