Power Window SUBSWITCH Inspection

  1. Verify continuity as indicated in the figures.
    • If not as indicated in the table, replace the power window subswitch.

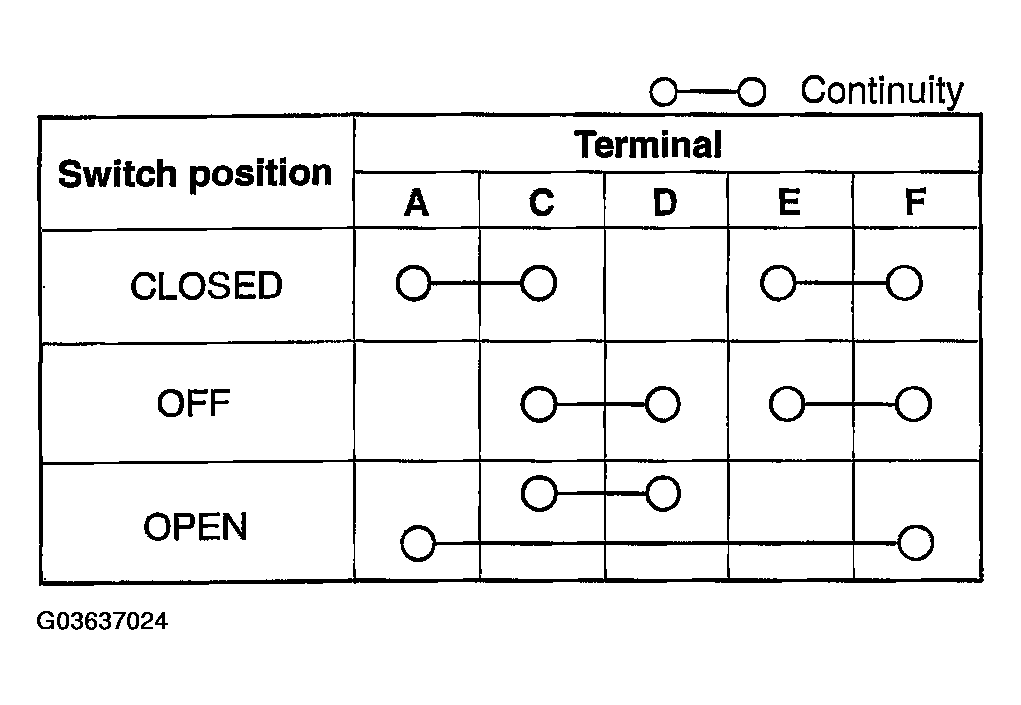

    Fig 1: Power Window Subswitch Continuity Specifications
    G03637024Courtesy of MAZDA MOTORS CORP.
    Fig 2: Power Window Subswitch Connector Terminal Identification
    G03637025Courtesy of MAZDA MOTORS CORP.
