Oil Seal Assembly Note

  1. Apply ATF to the lip of a new oil seal.
  2. Install the SST  (49 N032 319A) to the gear housing with the raised part facing up as shown in the figure.
  3. Set the stopper into the gear housing to hold the SSTs  as shown in the figure.
  4. Install the oil seal using the SSTs  (49 F032 303, 49 F032 304) and a press.

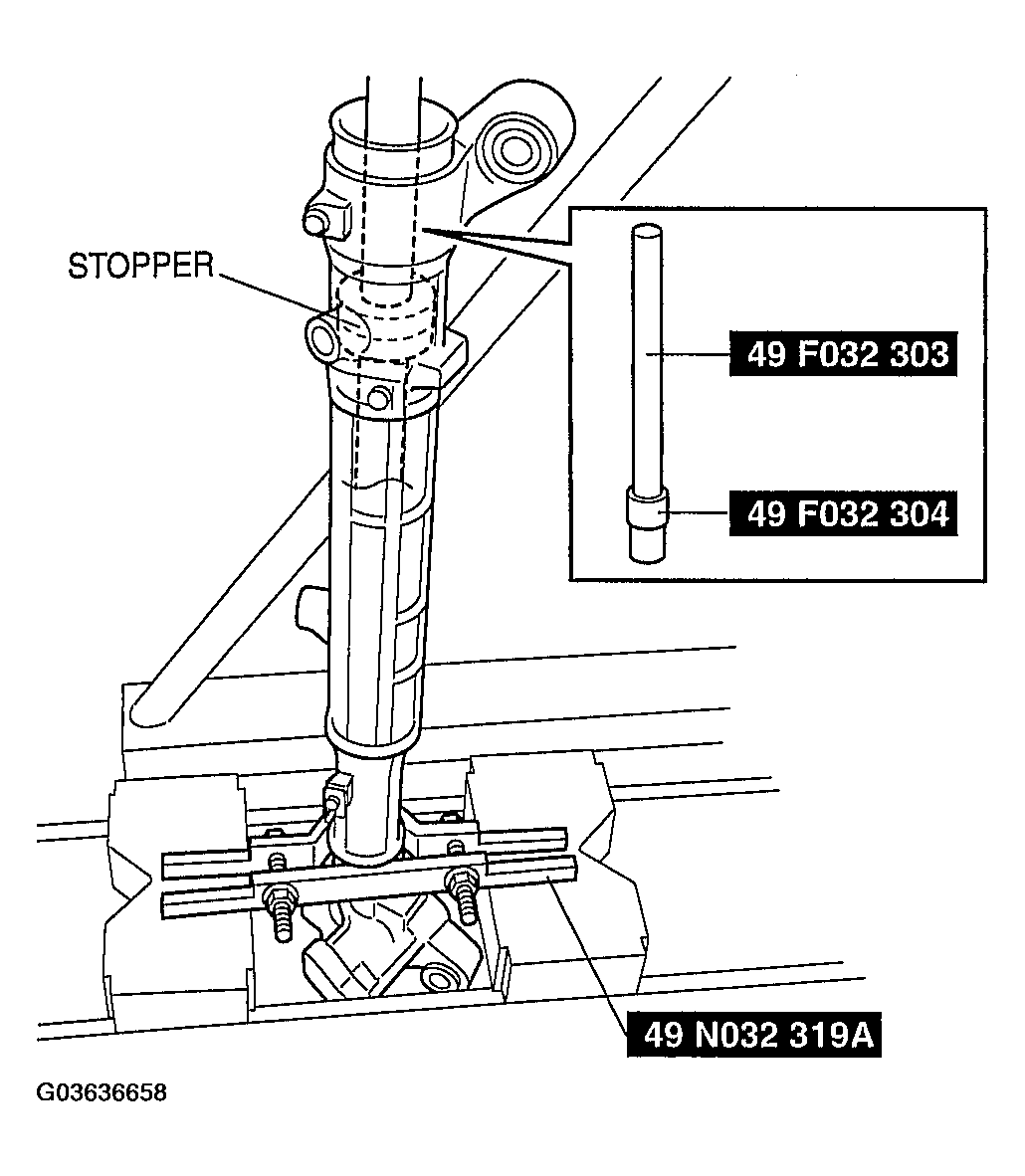

    Fig 1: Installing Oil Seal
    G03636658Courtesy of MAZDA MOTORS CORP.
