Bearings Disassembly Note

Bearings Disassembly Note

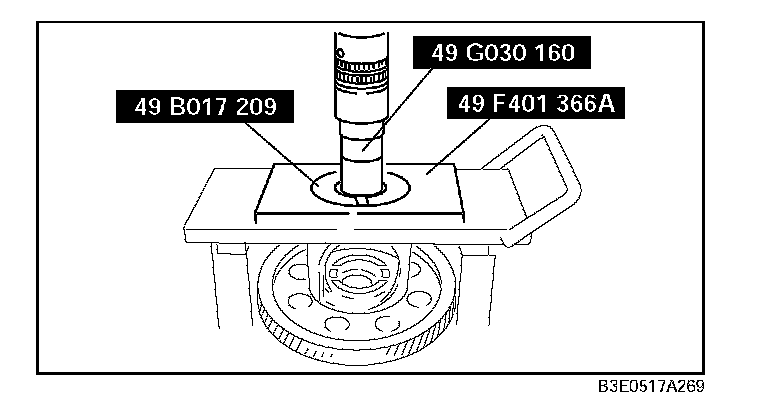

1. Remove the bearing (speedometer drive gear side) from the gear case using the SSTs.

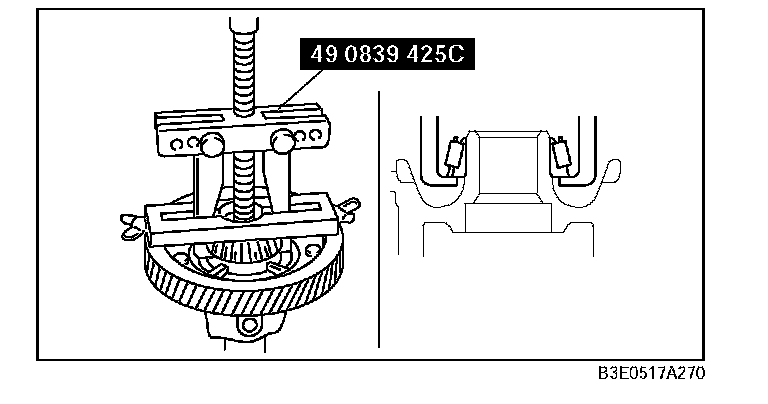

2. Remove the bearing (ring gear side) from the gear case using the SST.
