Spark Plugs - 2.0L: Installation

Fig 1: Adjusting Spark Plug Gap

G00988858

Courtesy of MAZDA MOTORS CORP.

Adjust the plug gap as necessary.

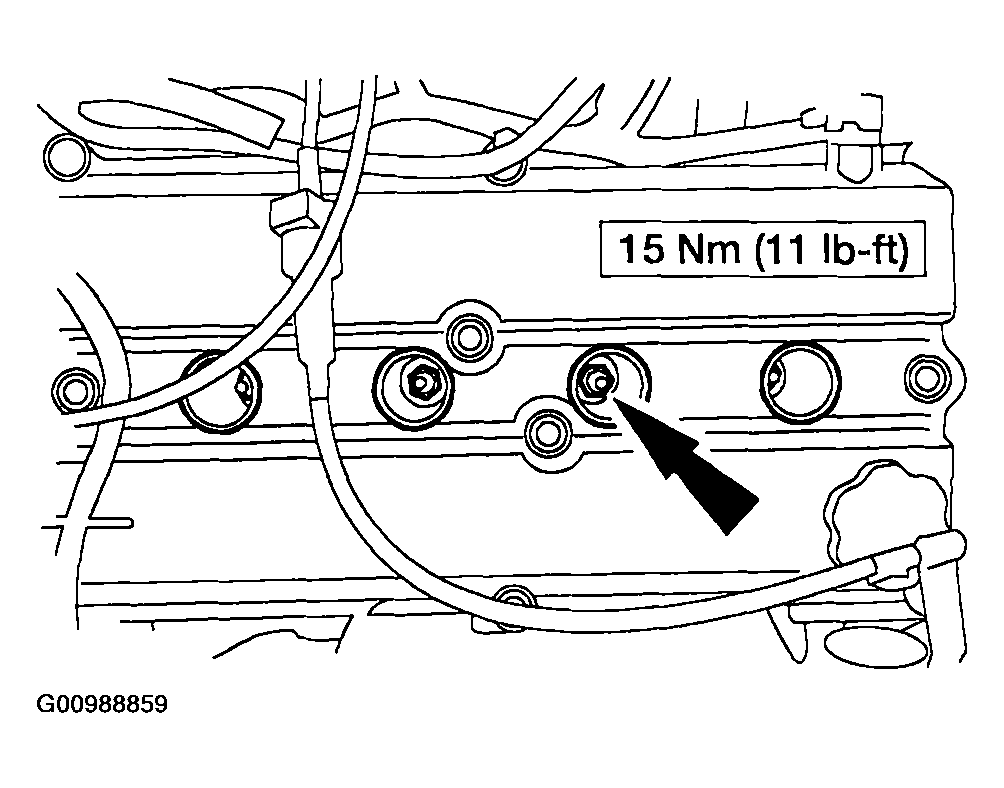

Fig 2: Installing Spark Plugs
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Apply Anti-Seize Lubricant to the lower three threads of the spark plugs. Do not allow lubricant to contaminate the spark plug electrodes or insulator tips.
Install the spark plugs.
Connect the spark plug wires to the spark plugs. Refer to SPARK PLUG WIRES .
